|Installing a Cisco Nexus 9336C-FX2 switch and pass-through panel in a Fujitsu cabinet|

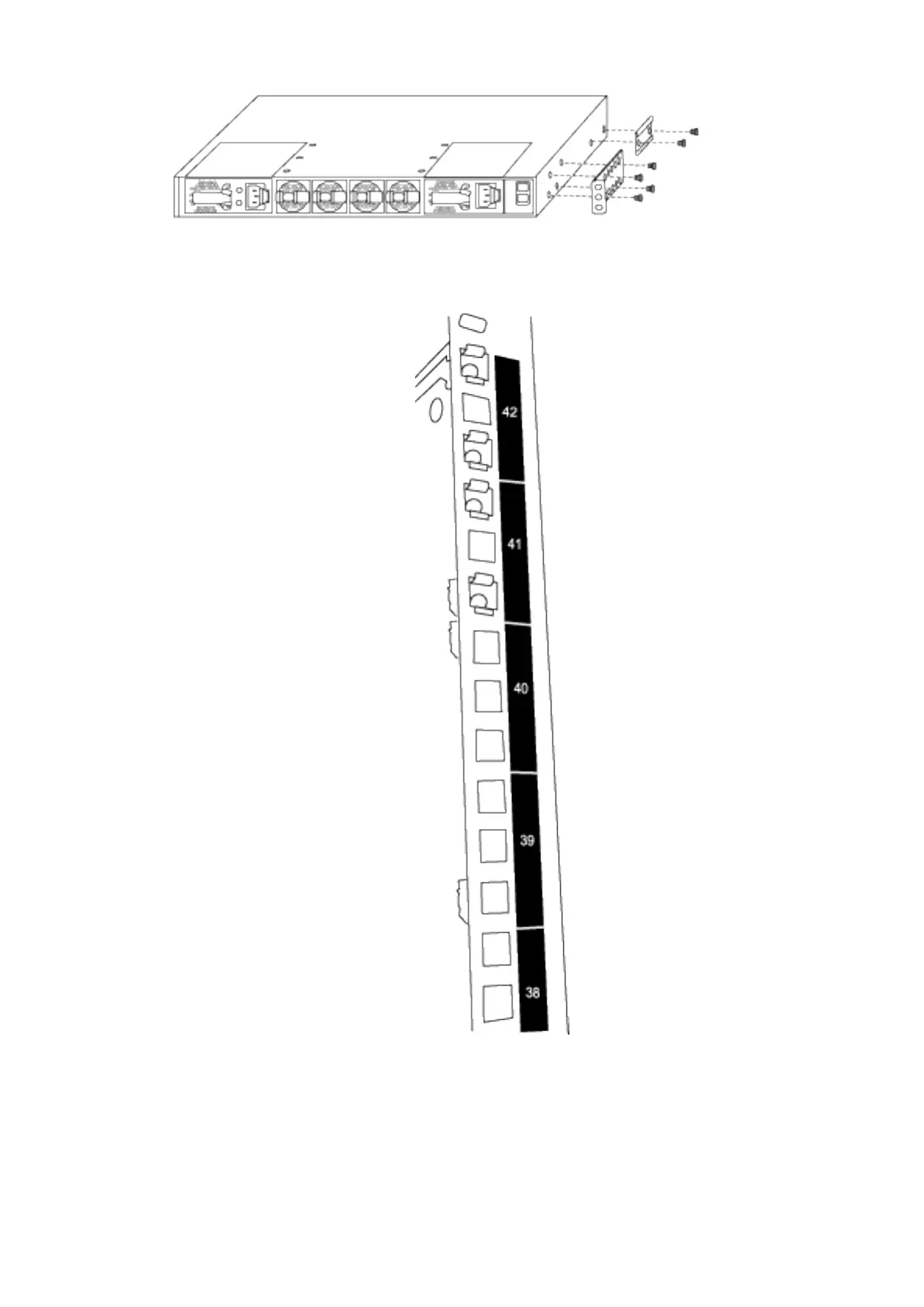

b) Repeat step 2a with the other front rack-mount bracket on the other side of the switch.
c) Install the rear rack-mount bracket on the switch chassis.
d) Repeat step 2c with the other rear rack-mount bracket on the other side of the switch.
3. Install the clip nuts in the square hole locations for all four IEA posts.
The two 9336C-FX2 switches will always be mounted in the top 2U of the cabinet RU41 and 42.
4. Install the slider rails in the cabinet.
a) Position the first slider rail at the RU42 mark on the back side of the rear left post, insert screws with
the matching thread type, and then tighten the screws with your fingers.
