Fujitsu ETERNUS AX Series Installing

|Installing a Cisco Nexus 9336C-FX2 switch and pass-through panel in a Fujitsu cabinet|

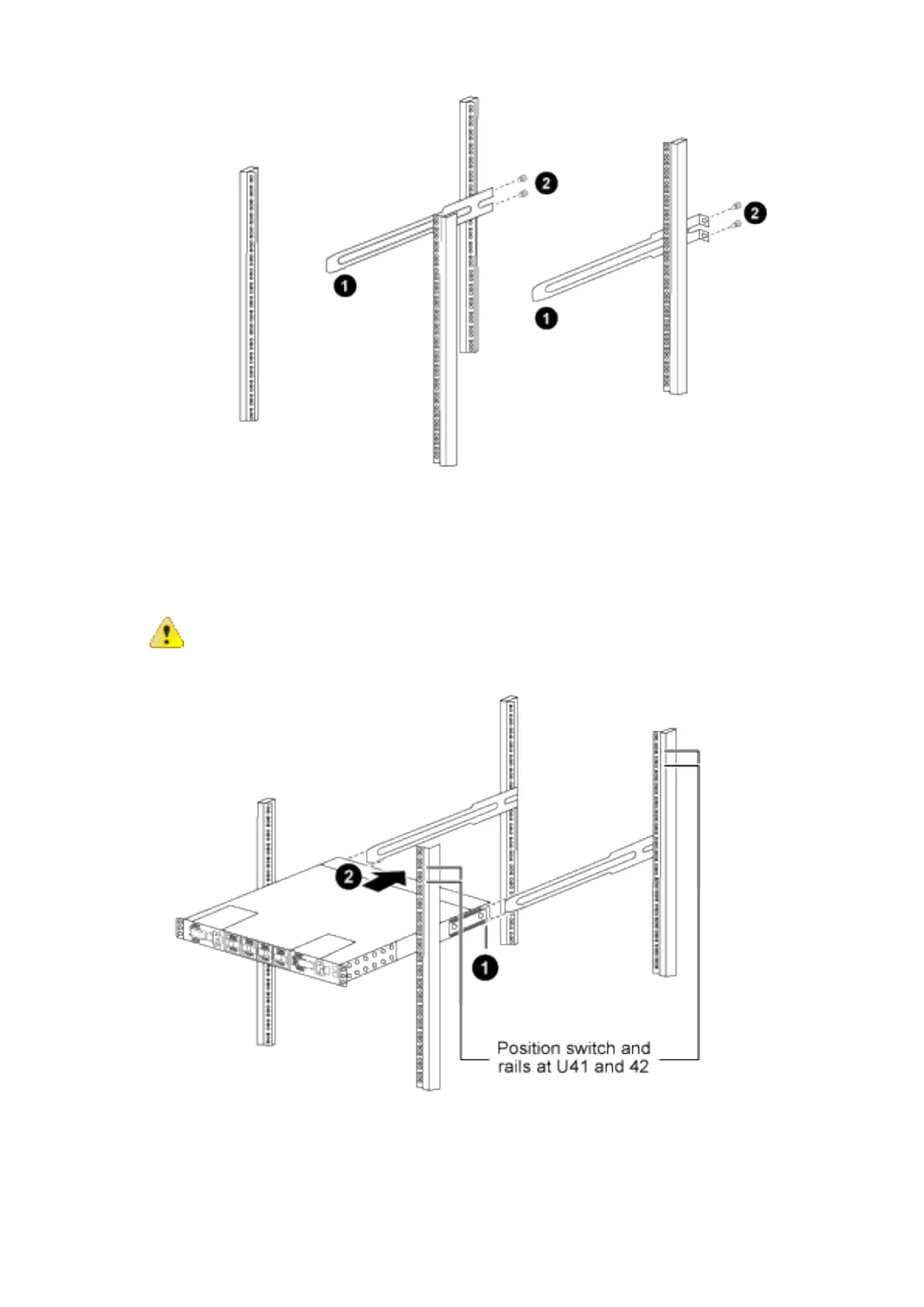

1. As you gently slide the slider rail, align it to the screw holes in the rack.
2. Tighten the screws of the slider rails to the cabinet posts.
b) Repeat step 4a for the right side rear post.
c) Repeat steps 4a and 4b at the RU41 locations on the cabinet.
5. Install the switch in the cabinet.
Attention: This step requires two people: one person to support the switch from the front and
another to guide the switch into the rear slider rails.
a) Position the back of the switch at RU41.
1. As the chassis is pushed toward the rear posts, align the two rear rack-mount guides with the slider
rails.
2. Gently slide the switch until the front rack-mount brackets are flush with the front posts.
b) Attach the switch to the cabinet.
5
