Fujitsu fi-4340C Cleaning And Maintenance

● 33
3

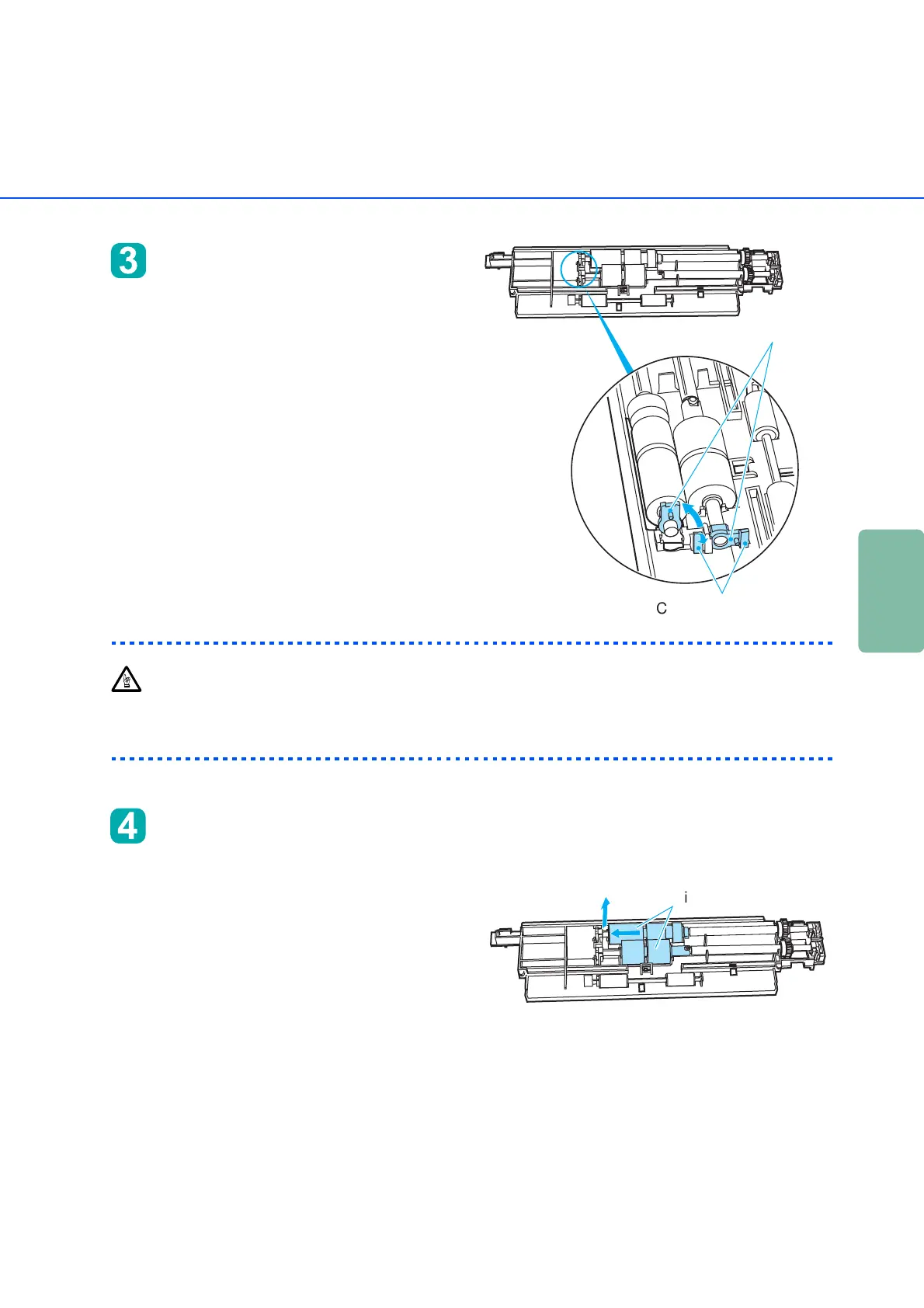

Place Guide A upside down, and
rotate the Pick bearing to remove
while releasing the claws of the Pick
bearing on the gear-free side. (two
bearings)
CAUTION
The Pick bearing is hard. Do not turn this bearing with your fingernails.
Use a paper clip for turning the Pick bearing if you can not rotate it with your finger.
Lightly lift up the Pick shaft, and
draw out the Pick roller to remove.
(two rollers)
!
Claws of the Pick bearing
Pick bearings
"
Pick rollers
