fi-7480 / fi-7460 CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS
8

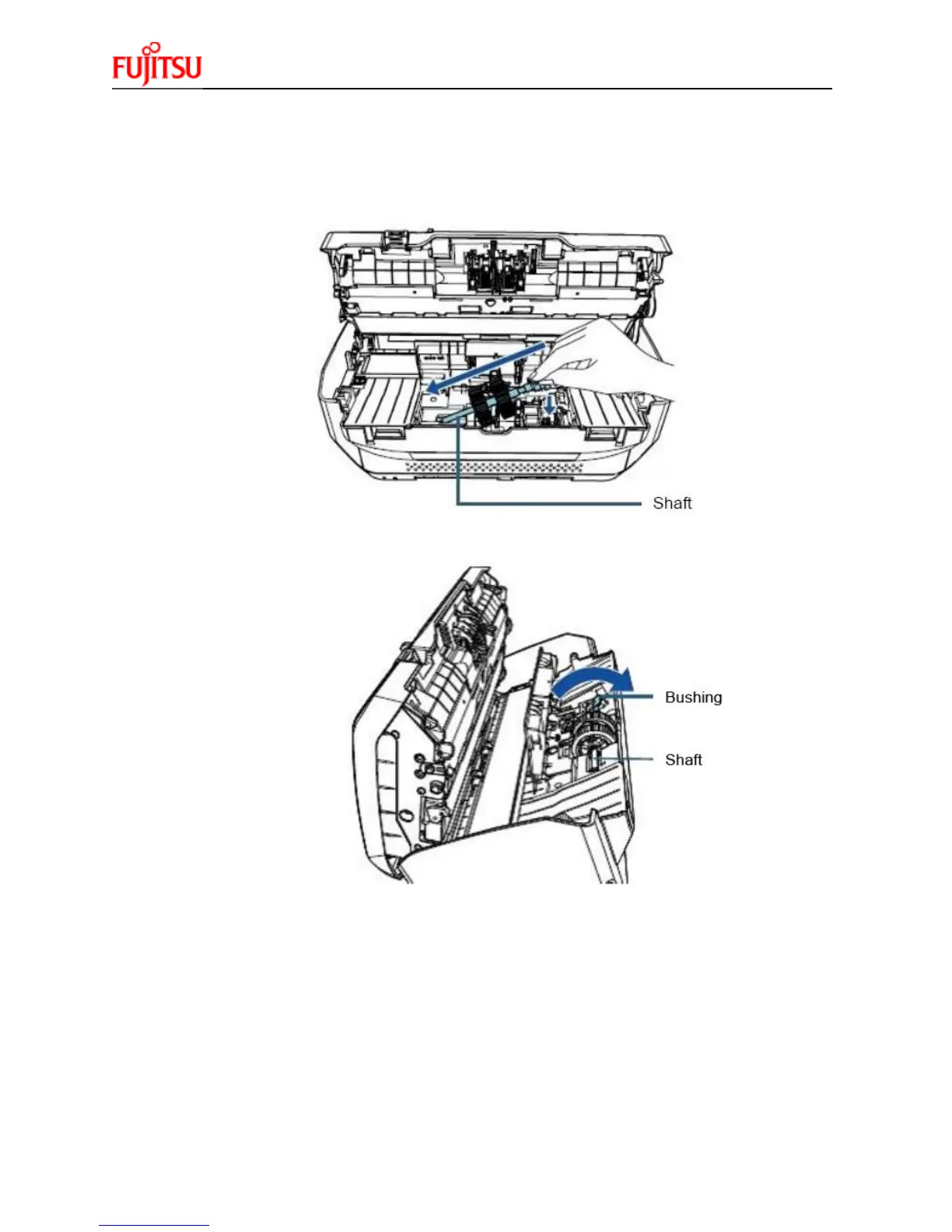

7. Reinstall the Pick Shaft Assembly
a. Insert the left end of the shaft into the slot and lower the other end gradually.
b. Rotate the bushing on the pick shaft in the direction of the arrow below
c. Close the sheet guide. Make sure that both ends of the sheet guide are locked firmly.
Confirm that the pick Shaft Assembly is installed properly
Otherwise, it may cause feeding errors such as paper jams
8. Close the ADF
9. Attach the ADF paper Chute
10. Reset the pick Roller Counter
