Fujitsu fi-7480 - Attach New Pick Rollers to Shaft

fi-7480 / fi-7460 CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS
7

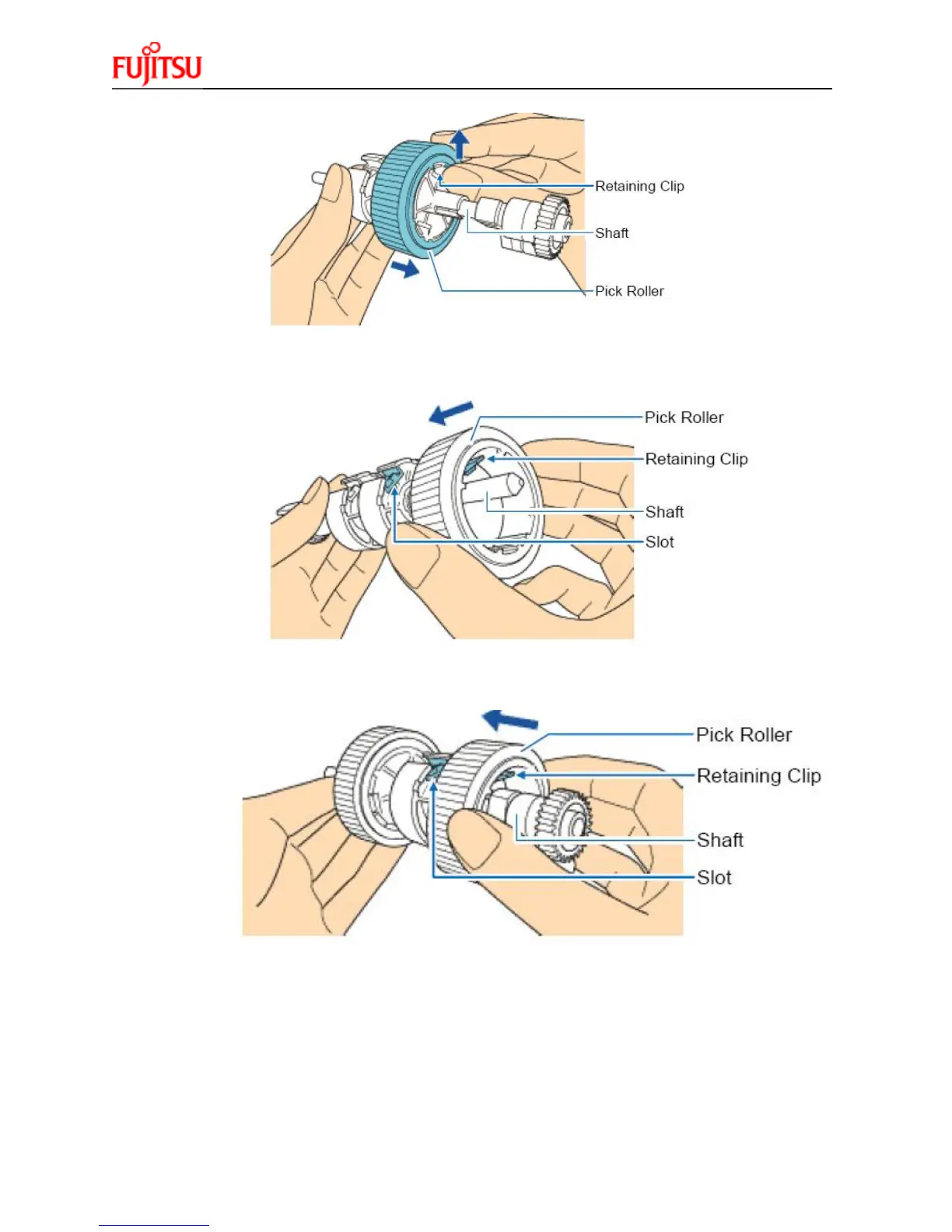

6. Attach two (2) new pick rollers on the Pick shaft Assembly one at a time
a. Insert the retaining clip of the pick roller into the slot
b. Insert the retaining clip of the other pick roller into the slot
Check that the pick rollers are attached properly. Otherwise, it may cause feeding
errors such as paper jams. Make sure to insert the pick rollers until they lock in place.
