fi-7480 / fi-7460 CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS
6

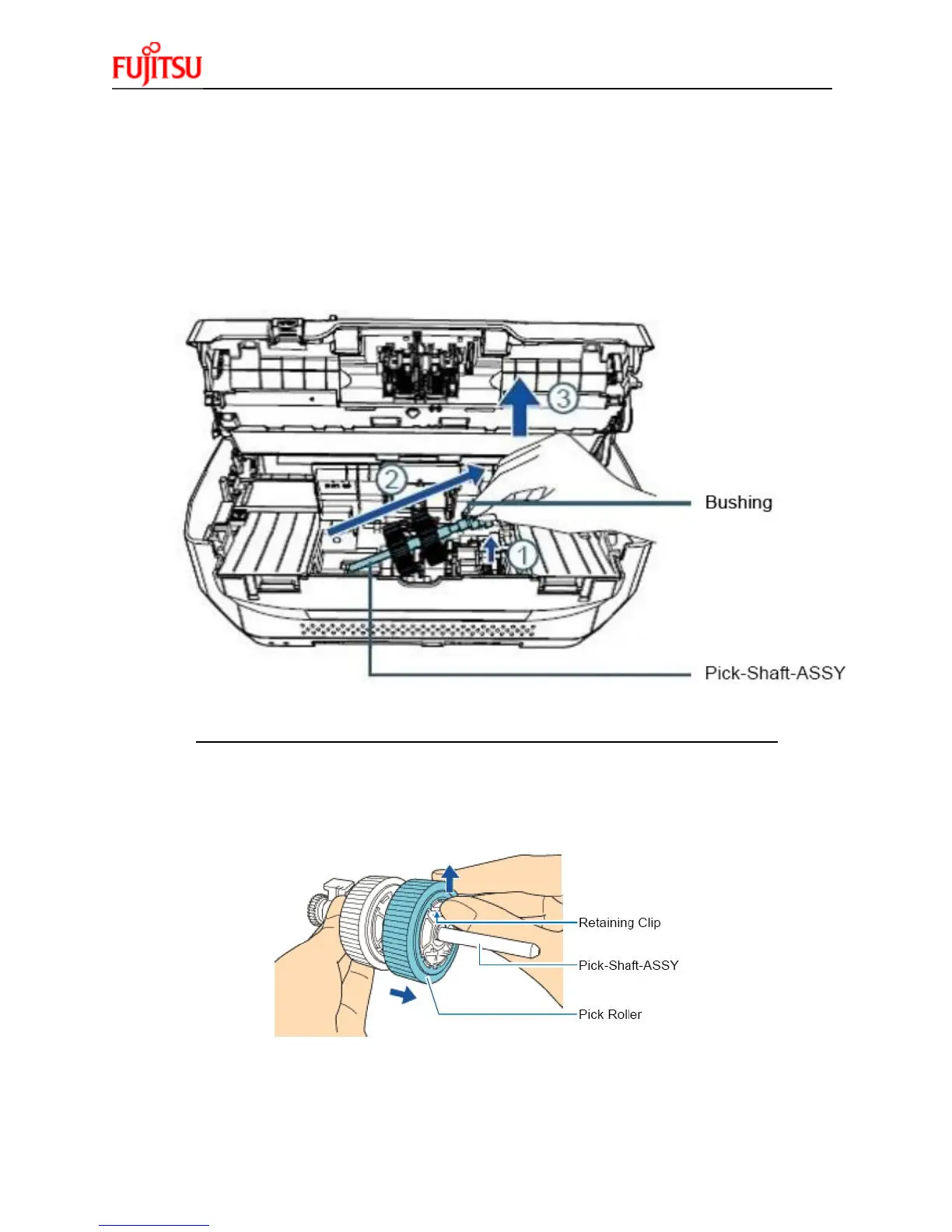

c. Remove the Pick Shaft Assembly
d. Hold and lift the bushing in the direction of the arrow below (1)
e. Pull the bushing up in the direction of the arrow below (2)
f. Lift the Pick Shaft Assembly up in the direction of the arrow below (3)
*Be careful not to touch the gear near the bushing on the shaft as it contains grease*
5. Remove the two (2) pick rollers from the Pick Shaft Assembly on at a time.
a. Pull out one of the pick rollers from the as you press the retaining clip.
b. Pull out the other pick roller from the Pick shaft Assy as you press the retaining clip
