fi-7480 / fi-7460 CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS
5
Replacing the Pick Roller
The Glass inside the ADF becomes very hot when the scanner is being used. Before
you replace the consumables, turn off the power, unplug the power cable, and let cool
for 15 minutes
1. Remove the documents from the ADF paper Chute
2. Remove the ADF Paper Chute

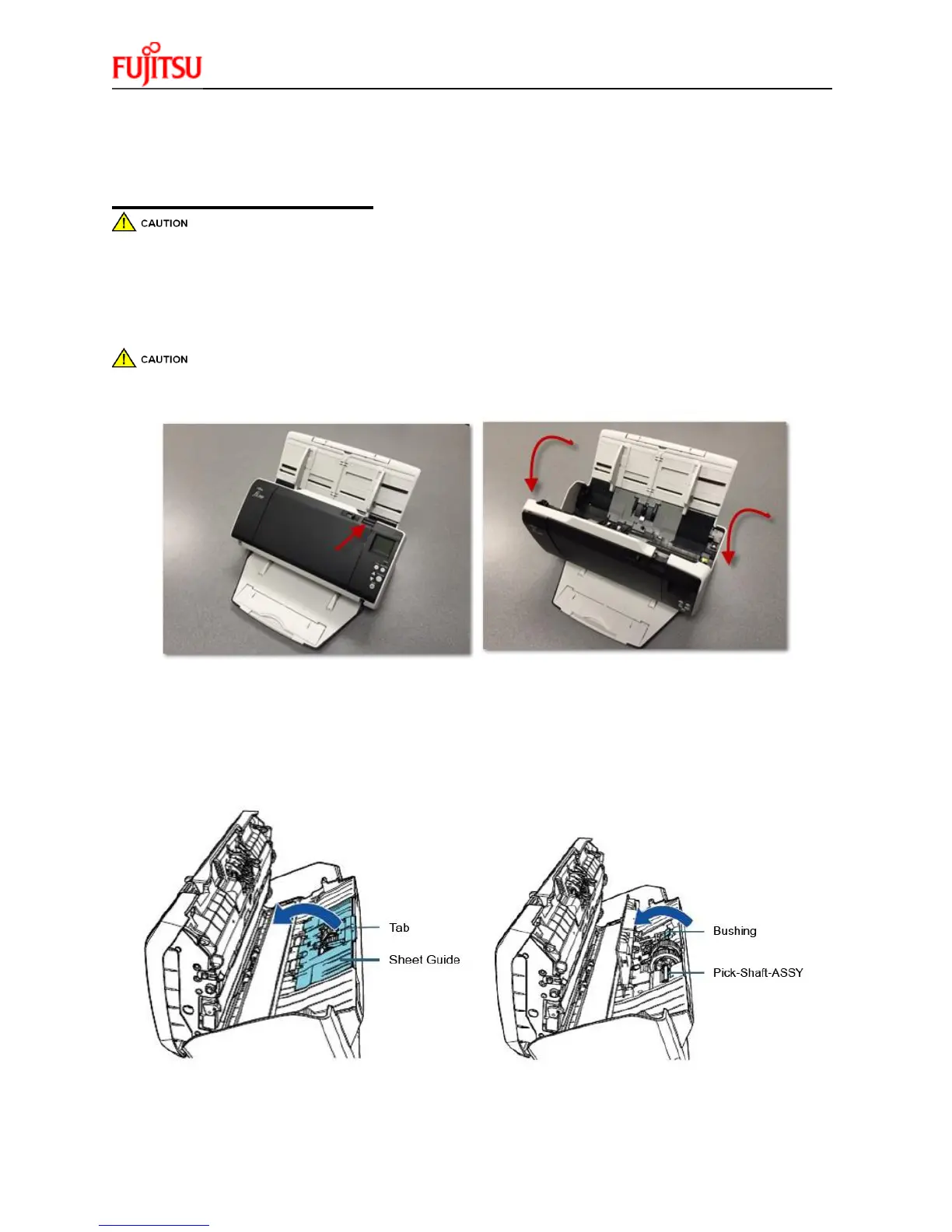

3. Open the ADF - Open the ADF by pressing the ADF Open Lever and Pull the ADF towards
the front of the scanner in the direction of the arrow shown in the pictures below.
When the ADF is open, it might close accidentally. Use caution when the ADF is open.
4. Remove the Pick Shaft Assembly
a. Open the sheet guide by lifting the tabs
b. Rotate the bushing on the Pick Shaft Assembly in the direction of the arrow
