2-3. Maintenance space requirement
For future maintenance and service access, provide sufficient maintenance space.
NOTE: Do not place any wiring or illumination in the maintenance space, as they will impede ser-
vice.
¢
Models: ARXG36KHTAP, ARXG45KHTAP, and ARXG54KHTAP
• Provide a service access for maintenance purposes.

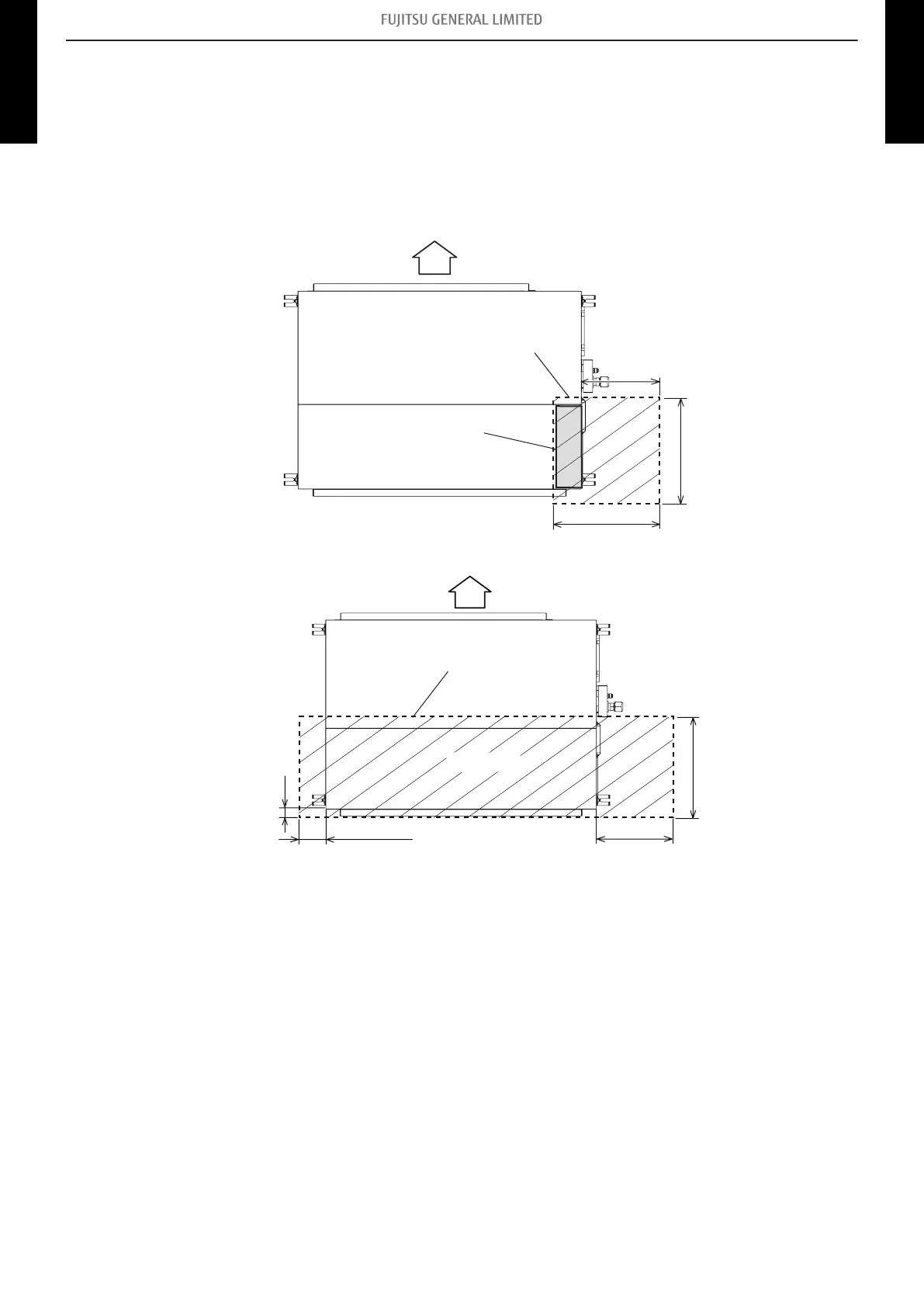

Bottom view
Unit: mm
AIR
Control box
300 or more
500 or more
500 or more
Service access
• The service access necessary for fan units and filter maintenance.
Unit: mm
AIR
Service access
Fan unit side
300 or more
500 or more
100 or more
100
Bottom view
- 6 -
