Fujitsu General ARXG36KHTAP User Manual

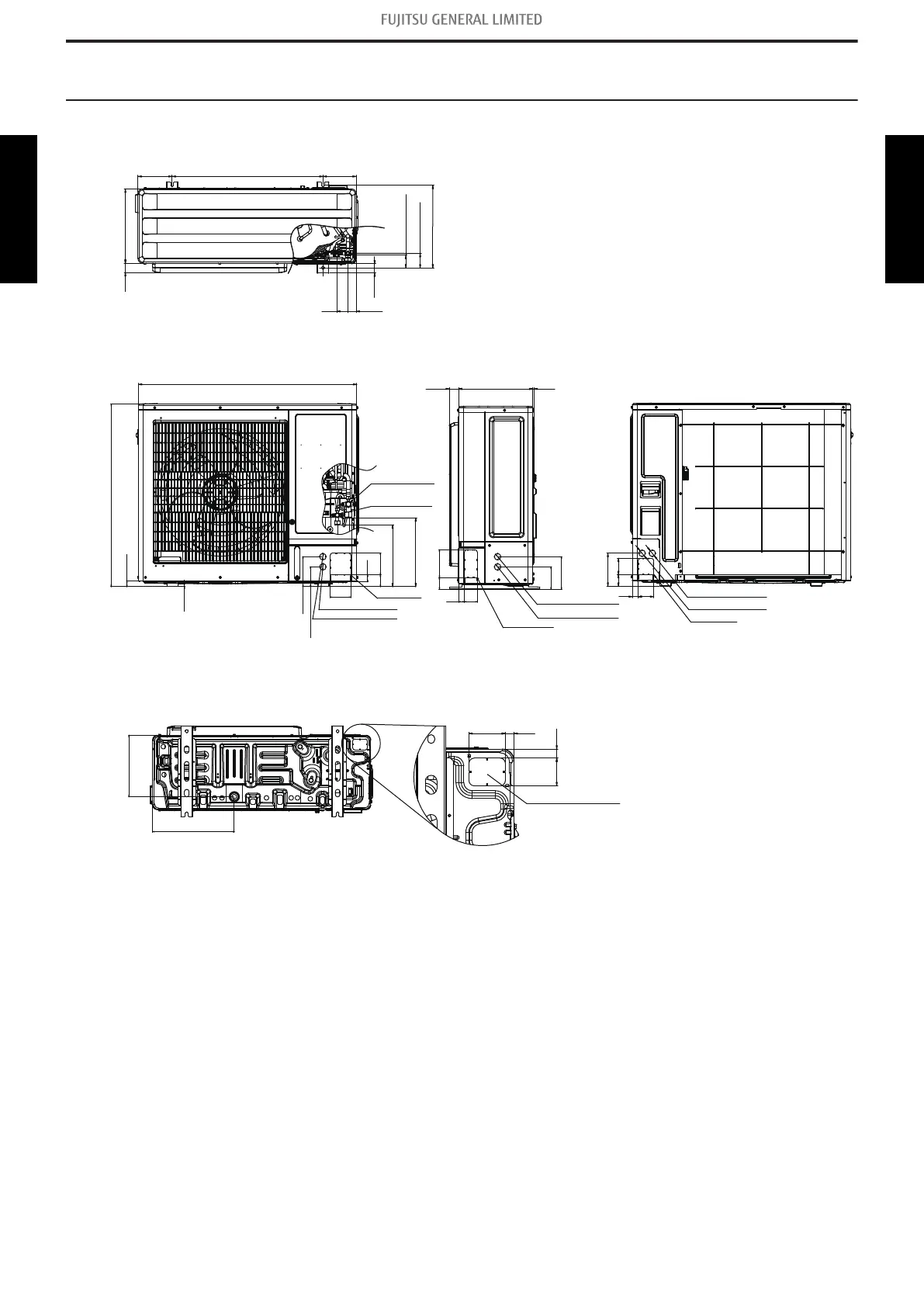

2. Dimensions
2-1. Models: AOHG36KRTA
Unit: mm
Top view
Bottom view
Side viewFront view
940
3 Way valve
(Liquid)
786.2
23.4
12.9
129.1
85.3
50
95
29
296.2
265.7
Pipe port
(Gas valve)
3 Way valve
(Gas)
(Liquid valve)
Ф28: Cable port
Ф28: Cable port
89
650
35.748
143147
39.8
53.9: Liquid
40 320
354.8
62.9: Gas
320
139.8
Ф28: Cable port
Ф28: Cable port
96
50 120
Pipe port
5525
40 5
264.6
351.9
Pipe & Cable port
47.6
15.262.6
15.6
Rear view
50
Ф28: Cable port
Ф28: Cable port
25
141.9
70
67
Pipe port
- 46 -
2-1. Models: AOHG36KRTA 2. Dimensions
OUTDOOR UNIT AOHG36-54KRTA OUTDOOR UNIT AOHG36-54KRTA

Fujitsu General ARXG36KHTAP Specifications

General

Cooling Capacity	3.6 kW
Heating Capacity	4.0 kW
Power Supply	220-240V, 50Hz
Refrigerant	R32
Energy Efficiency Class (Cooling)	A++
Energy Efficiency Class (Heating)	A+
Outdoor Unit Noise Level	50 dB
