2. Function settings (For outdoor unit)
Perform appropriate function setting locally according to the installation environment.
NOTE: Incorrect settings can cause a product malfunction.
CAUTION
• Before setting up the switch buttons, discharge the static electricity from your body.
• Never touch the terminals or the patterns on the parts that are mounted on the PCB.
2-1. Control PCB and switch buttons location
Control PCB of the outdoor unit is located as shown in the following figure.

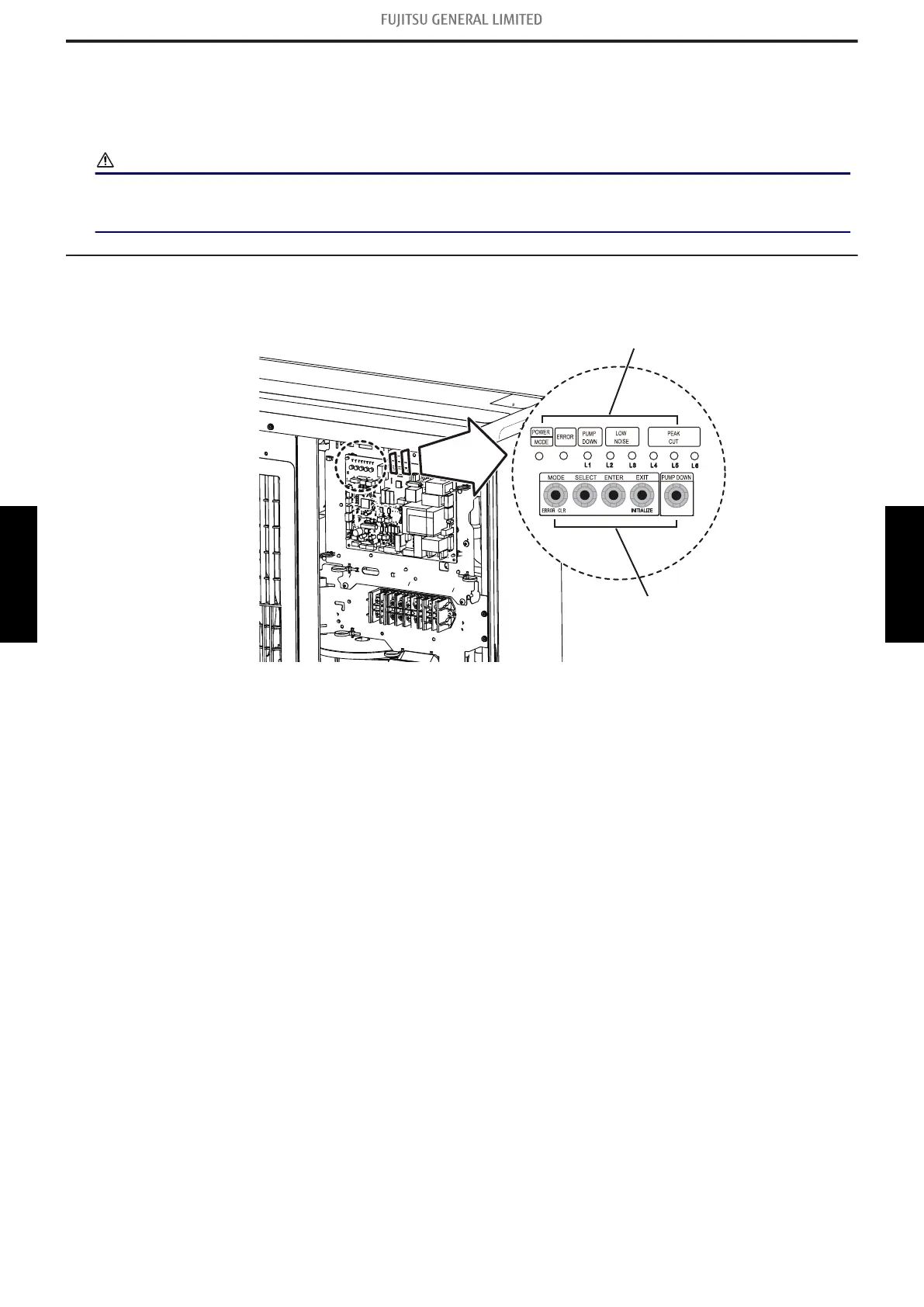

2-1. Control PCB and switch buttons location - (05-7) - 2. Function settings (For outdoor unit)
