Input signal type
• Indoor unit
Input signal type is only "Edge".
• External input and output PCB
The input signal type can be selected.

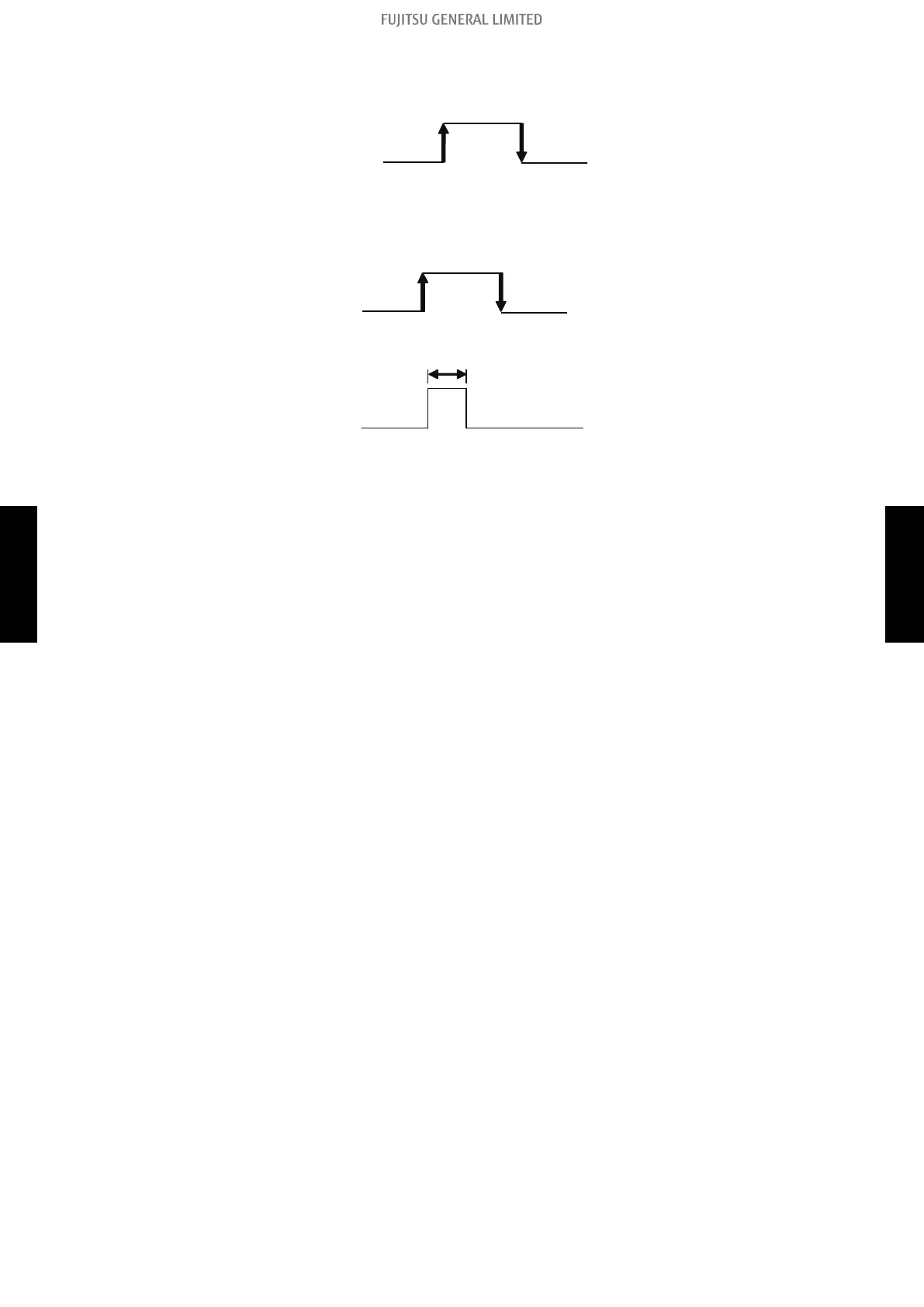

Signal type (edge or pulse) can be switched by the DIP switch 2 (SW2) on the External input and
output PCB.
Edge
Pulse
The width of pulse must be
longer than 200 msec.
NOTE: The input signal supports the following switch type:
• Edge: Alternate type switch
• Pulse: Momentary type switch
3-1. External input - (05-13) - 3. External input and output (For indoor unit)
