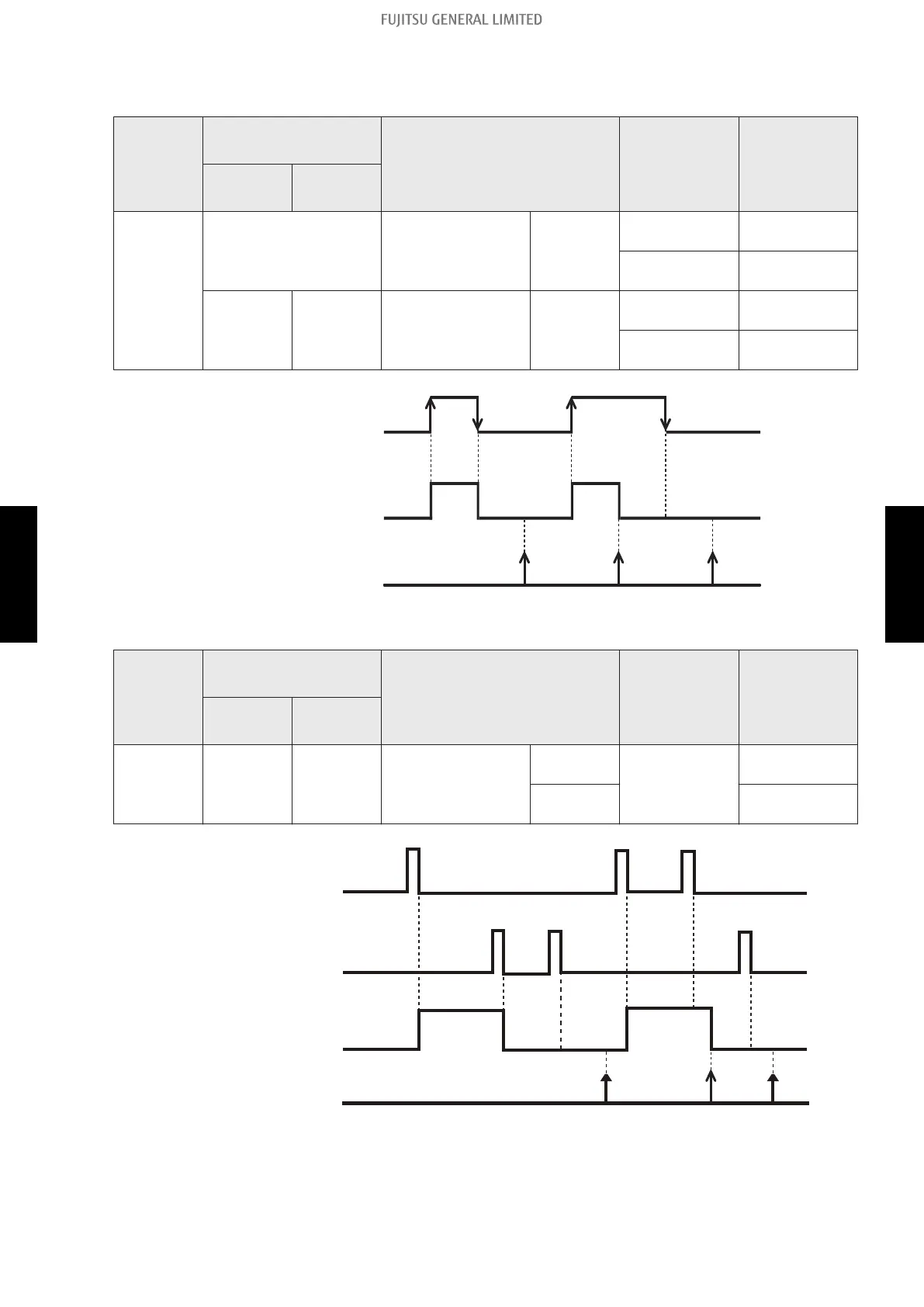

Operation/Stop mode 2
• In the case of "Edge" input
Function
setting
External input and
output PCB
External input Input signal Command
Rotary
switch
SW2
46-03
— Input of indoor unit Terminal
Off → On
Operation
(R.C. enabled)
On → Off
Stop
(R.C. disabled)
1 Edge
External input and
output PCB
Ex IN 1
Off → On
Operation
(R.C. enabled)
On → Off
Stop
(R.C. disabled)
On
Input
Off
On
Indoor unit operation
Off
Remote controller
On OnOff
• In the case of "Pulse" input
Function
setting
External input and
output PCB
External input Input signal Command
Rotary
switch
SW2
46-03 1 Pulse
External input and
output PCB
Ex IN 1
Pulse
Operation
(R.C. enabled)
Ex IN 2
Stop
(R.C. disabled)
On
On
Off
Remote controller
On
Off
Indoor unit operation
Ex IN 1
Ex IN 2
Off
On
On
Off
NOTE:
When "Operation/Stop" mode 2 function is used with forming a remote controller group,
connect the same equipment to each indoor unit within the group.
