En-2

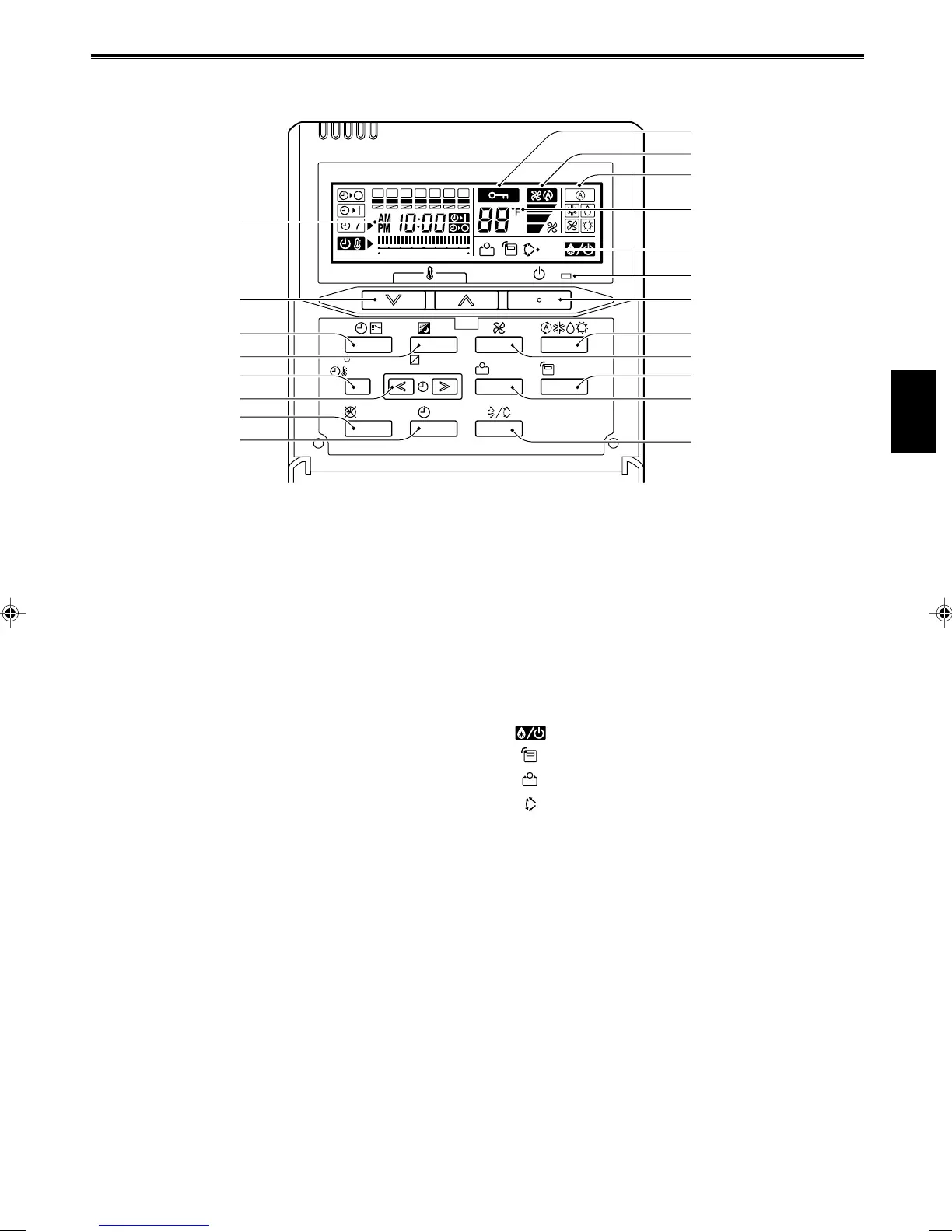

NAME OF PARTS
Remote controller
1 Start/Stop Button
2 Set Temperature Button
3 Master Control Button
4 Fan Control Button
5 THERMO SENSOR Button
6 ENERGY SAVE Button
7 Timer Mode (CLOCK ADJUST)
Button
8 DAY (DAY OFF) Button
9 SET BACK Button
0 Set Time Button
A DELETE Button
B SET Button
C Vertical Airflow Direction and
Swing Button
D Operation Lamp
E Timer and Clock Display
F Operation Mode Display
G Fan Speed Display
H Operation Lock Display
I Temperature Display
J Function Display
Defrost Display
Thermo Sensor Display
Energy Save Display
Vertical Swing Display
SU
MO
TU
WE
TH FR
SA
369
12 15 18 21
DAY OFF
DELETE SET
ENERGY
SAVE
THERMO
SENSOR
SET BACK
DAY
CLOCK ADJUST
E
2
7
8
9
0
A
B
H
G
F
I
J
D
1
3
4
C
5
6
