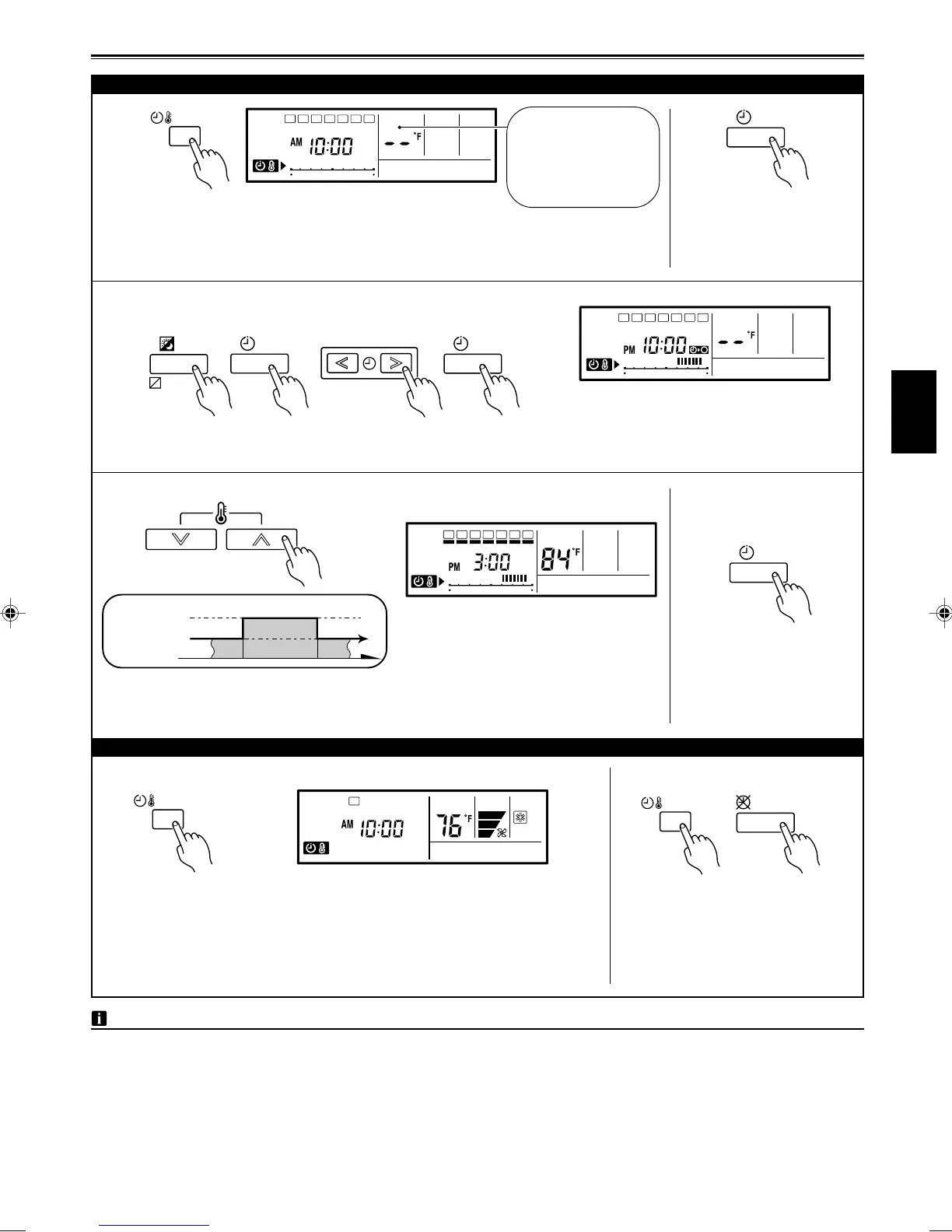

TEMPERATURE SET BACK TIMER
Press the SET BACK button to change to the SET BACK con-
firmation display.
The SET BACK operating time and the set temperature will
be displayed.
2
Press the SET button for 2
seconds or more.
1
3
● Day setting ● Operating time setting
Follow the same procedures to set the operating time as those for the weekly timer. The DELETE button is also used
as described in the procedures for the weekly timer.
4
SET
DAY OFF
DAY
1
3
SET
2
SET
4
5
Repeat steps 3 and 4.
Press the SET button for 2
seconds or more to com-
plete the temperature SET
BACK timer settings.
SET
Temperature SET BACK timer operation
● To start
SET BACK
Press the SET BACK button. The SET BACK confirmation display appears
for 5 seconds, and then the timer starts automatically.
ex. Display during SET BACK timer operation
(The operating time will not be displayed.)
● To cancel
Press the SET BACK button, and then
press the DELETE button while the
SET BACK confirmation display is dis-
played. Even if the SET BACK button
is pressed again, the SET BACK timer
will be cancelled.
Temperature SET BACK timer setting
SET BACK
1
DELETE
2
SET BACK
If there is no existing
SET BACK tempera-
ture setting, “- -” will
be displayed for the
temperature.
SU MO TU WE TH FR SA
369 12 15 18 21
ex. When setting all days together
SU MO TU WE TH FR SA
369 12 15 18 21
● Temperature setting
Press the SET TEMPERATURE buttons to
set the temperature (from 64 °F to 88 °F).
ex. Operating time 3:00–10:00 P.M.
(15:00–22:00)
SET BACK
temperature
Normal
temperature
ON
OFF
76°F
76°F
84°F
SU MO TU WE TH FR SA
369 12 15 18 21
SU MO TU WE TH FR SA
NOTES
(1) The SET BACK timer only changes the set temperature, it cannot be used to start or stop air conditioner operation.
(2) The SET BACK timer can be set to operate up to two times per day but only one temperature setting can be used.
(3) The SET BACK timer can be used together with the ON, OFF, and weekly timer functions.
(4) The SET BACK operating time is displayed only in the SET BACK confirmation display. (Refer to step 1 for the SET
BACK confirmation display.)
(5) The SET BACK operating time is displayed only in the SET BACK confirmation display. (Refer to step 1 for the SET
BACK confirmation display.)
9368987046_OM_en.p65 25/8/05, 14:538
