6.1.1.1 LAN indicators

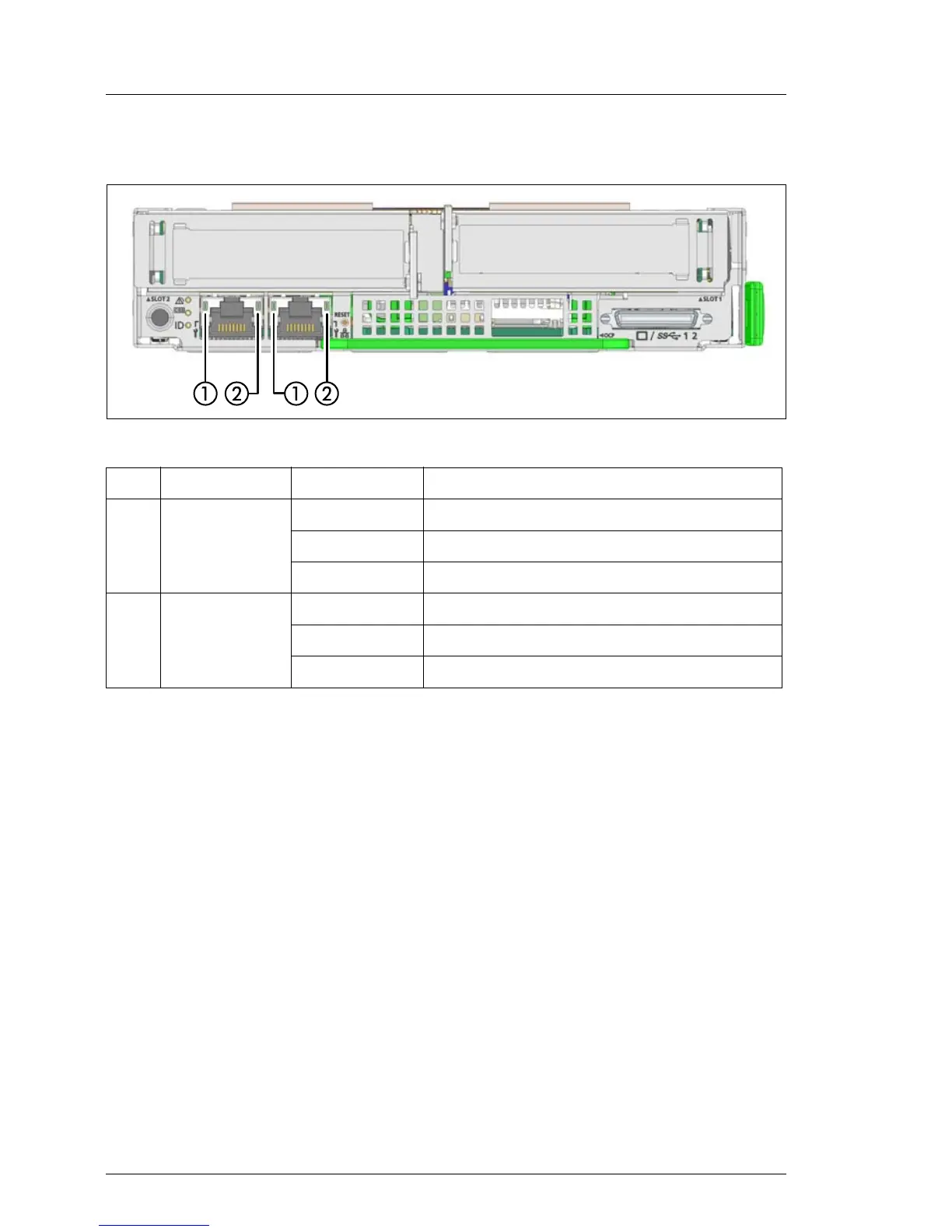

Figure 7: LAN indicators of the server node CX2550 M4
I Depending on the settings in the BIOS, the standard LAN connector may
also be used as a Management LAN connector. You will find further
information in the "D385x BIOS Setup Utility for FUJITSU Server
PRIMERGY CX2550 M4 / CX2560 M4 / CX2570 M4" Reference Manual.
Pos. Indicator Status Description
1
LAN
link/transfer
indicator
green on A LAN connection has been established.
off LAN is not connected.
green flashing LAN data transfer is in progress
2
LAN speed
indicator
yellow on Data traffic at a transfer rate of 1 Gbit/s
green on Data traffic at a transfer rate of 100 Mbit/s
off Data traffic at a transfer rate of 10 Mbit/s.
