Fujitsu PRIMERGY RX2520 M1 - Using the Cable Clamp

56 Operating Manual RX2520 M1
Hardware installation
5.4.2 Using the cable clamp
You can secure the power cords in a cable clamp to ensure that the insulated
connectors cannot be disconnected from the server accidentally.

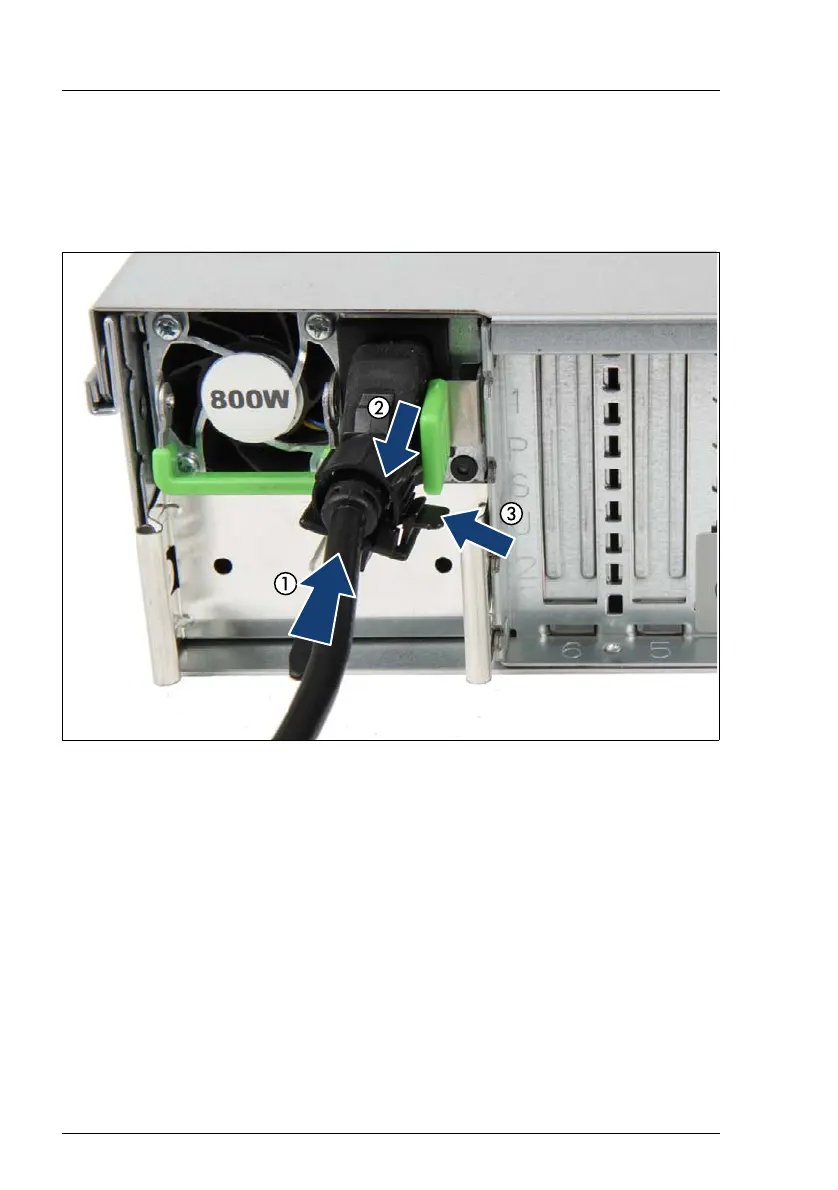

Figure 4: Cable clamp (example AC power supply unit)
Ê Pull the cable clamp up (1).
Ê Thread the power cord through the cable clamp (2).
Ê Press the cable clamp down until it engages to secure the cable (3).
