RX2520 M1 Operating Manual 53
Hardware installation
5.3 Connecting devices to the server
The connectors for external devices are on the front and rear of the server. The
additional connectors available on your server depend on the expansion cards
installed. For further information refer to the "FUJITSU Server PRIMERGY
RX2520 M1 Server Upgrade and Maintenance Manual".

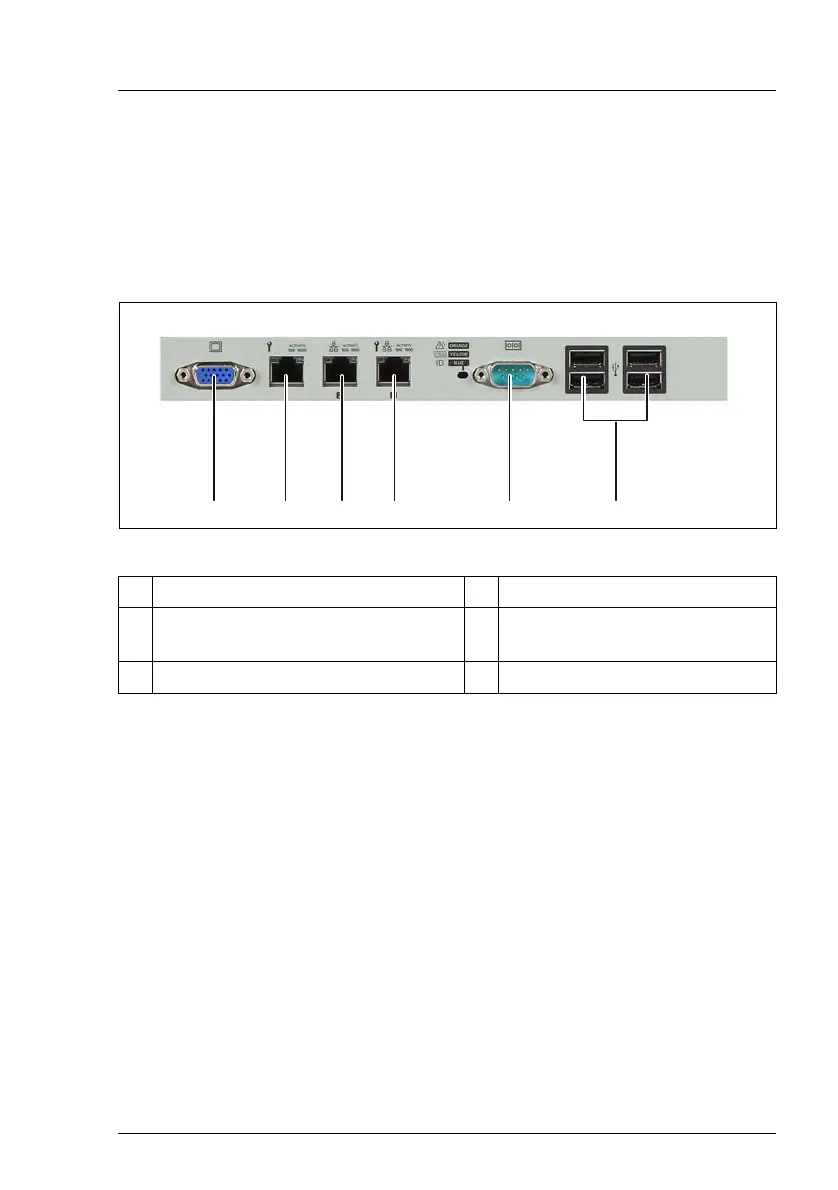

Figure 2: Connection panel on the rear
I Some of the devices that can be connected may require the installation
and setting up of special software (e.g. drivers) (see the documentation
for the connected device).
Ê Connect the desired devices to the server.
1 Video connector (blue) 4 Shared LAN connector (LAN 1)
2 Management LAN connector 5 Serial connector COM1*
(turquoise)
3 Standard LAN connector (LAN 2) 6 4 USB connectors (black)
* The serial interface COM1 can be used as the standard interface or for
communication with iRMC.
