One optional video connector (1) and two additional USB connectors (2) are

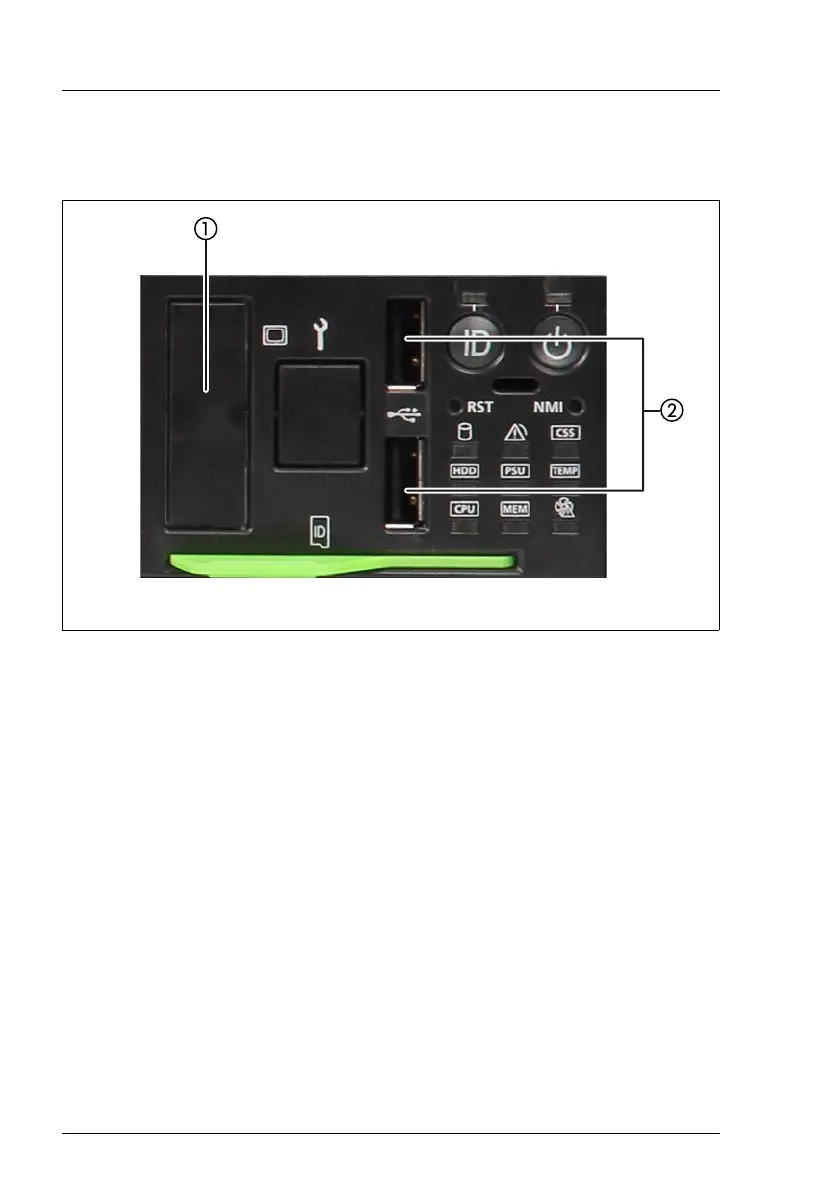

located on the front of the server (figure 3):
Figure 3: Front side connectors
I If components with large power requirements (e.g. external USB hard
disk drives) are connected simultaneously, these USB connectors may
be switched off.
Connecting the keyboard, mouse and monitor
Ê Connect the monitor, keyboard and mouse to the standard connectors of the
server (see table and figure 2 on page 53).
I If a separate graphics card is installed in a slot, the graphic controller on
the system board is automatically deactivated. The corresponding video
connector (VGA) can not be used. Plug the data cable of the monitor into
the video connector of the graphics card.
Ê Connect the power cable of the monitor to the mains socket strip of the rack.
V CAUTION!
The rated current for the monitor is indicated on the technical data label
on the monitor or in the operating manual for the monitor.
