Fujitsu PRIMERGY RX300 S8 User Manual

System configurator and order-information guide
PRIMERGY RX300 S8 Status 2017-02-28

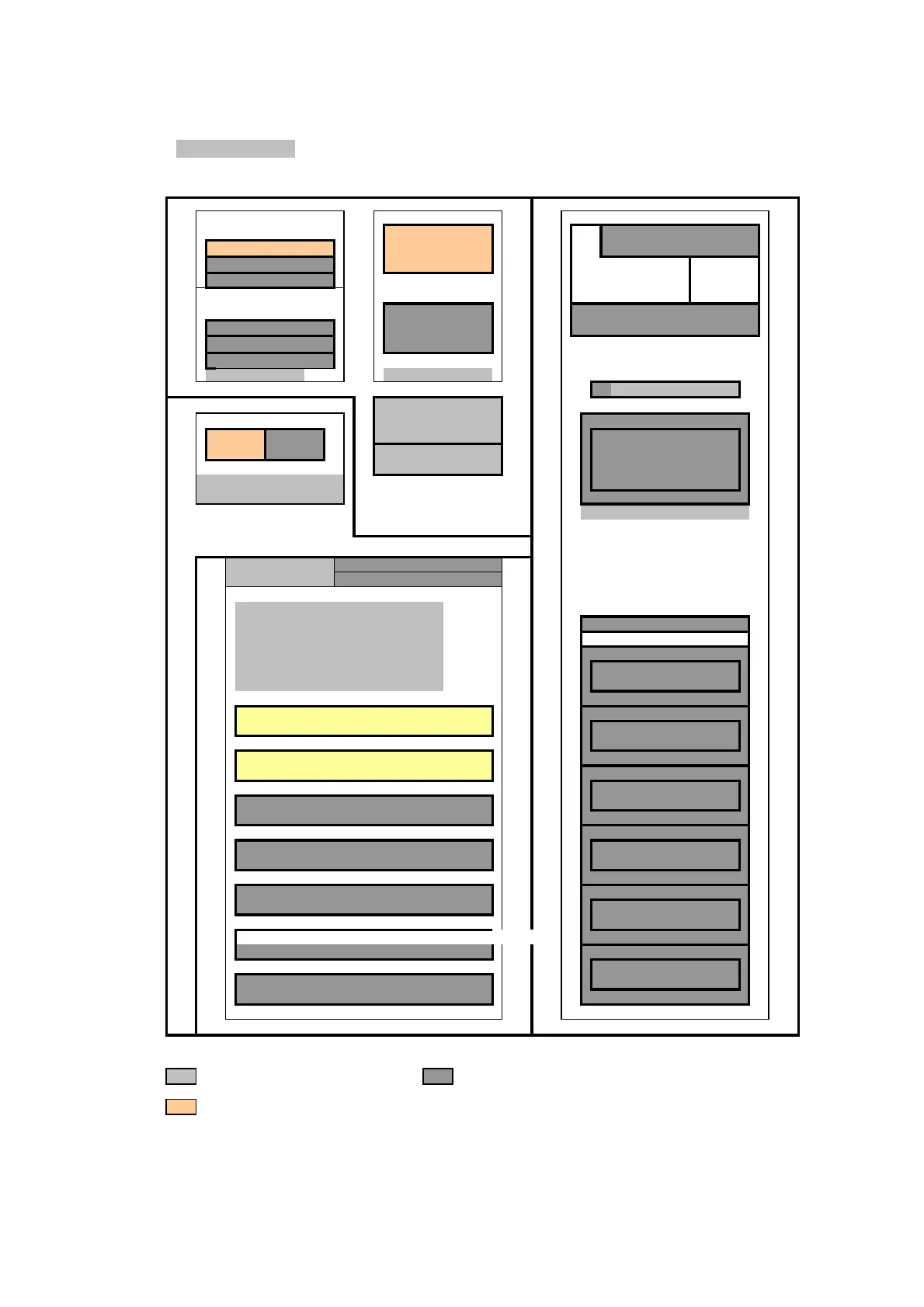

Configuration diagram PRIMERGY RX300 S8
System unit ( I )
with up to 6x 3.5" Hard disk drives
Motherboard
front side
Memory CPU1
( Channel A + B + C )
Bay for LocalView LCD
Bank 1 (4 Modules)
Xeon DP
LSD
Bank 2 (4 Modules)
2 USB
Bank 3 (4 Modules)
Air channel VGA, LAN
Memory CPU2
Frontpanel
( Channel D + E + F)
Bay for 5,25"x 0,5" SATA-BR
Bank 1 (4 Modules)
Xeon DP
or DVD-ROM/RW
Bank 2 (4 Modules)
Bank 3 (4 Modules)
Memory (III ) Processor ( II )
Accessible drives ( V )
rear side
Fan 1 - Fan 5
1. PSU
2. PSU
Needs space for 2
Redundant Fans hard disk drives!
are standard!
Redundant power 3.5"x1,6"
supply option
Backup drive option
Modular RAID Raid Card for IME, Raid 0 / 1E
Support
Raid Card for Raid 5
Low-profile extension slots for:
SCSI Controller for backup( VII ) Hard disk drives ( VI )
SAS Disk Array ( VIII ) 3.5" SAS/SATA
Communication/Network ( IX )
Miscellaneous ( X )
3.5"x1" SAS or SATA
Slot 6 PCIe-3 x16, 210mm @ CPU2
3.5"x1" SAS or SATA
Slot 5 PCIe-3 x16, 390mm @ CPU2
Slot 4 PCIe-3 x8, max. 390mm @ CPU1
3.5"x1" SAS or SATA
Possibility to install PCIe x16 cards
Slot 3 PCIe-3 x8, max. 390mm @ CPU1
3.5"x1" SAS or SATA
Slot 2 PCIe-3 x8, max. 312mm @ CPU1
3.5"x1" SAS or SATA
Slot 1 PCIe-3 x8, max. 168mm @ CPU1 white colored
Dedicated for modular on-board LAN-Controller
Slot 7 PCIe-3 x8, max. 168mm @ CPU1
3.5"x1" SAS or SATA
Internal slot for modular RAID-Controller
Key:
Included in basic unit Option
One CPU, one memory per CPU and one PSU has to be selected for an orderable basic unit.
Fujitsu PRIMERGY Server 3 of 31

Fujitsu PRIMERGY RX300 S8 Specifications

General

Memory	Up to 768 GB DDR3
Form Factor	2U rack server
Remote Management	iRMC S4 (Integrated Remote Management Controller)
Chipset	Intel C602
Processor	Intel Xeon E5-2600 v2 product family
Storage	Up to 16 x 2.5" or 8 x 3.5" drives
RAID	RAID 0, 1, 5, 6, 10, 50, 60
Network	4 x Gigabit Ethernet ports
Expansion Slots	6 x PCIe 3.0 slots
Operating System Support	Windows Server, Red Hat, SUSE, VMware
Memory Type	DDR3 RDIMM/LRDIMM
Power Supply	Hot-plug redundant power supply units
