62 Operating Manual
TX1330 M1
Starting up and operation
6.2 Control elements and indicators
6.2.1 Front of the server

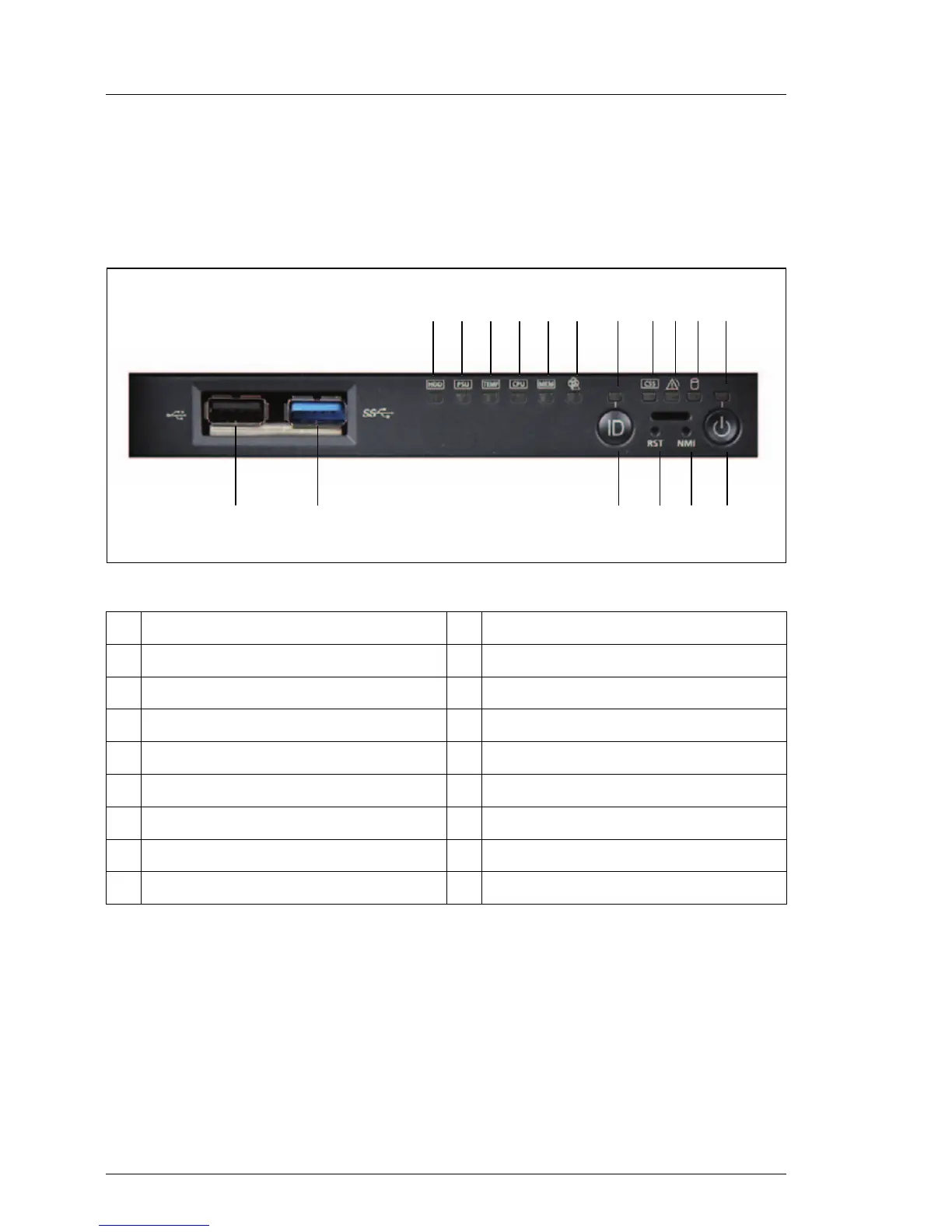

Figure 8: Front panel
1 HDD error indicator 10 HDD/SSD activity indicator
2 PSU error indicator 11 Power-on indicator
3 Temperature error indicator 12 On/Off button
4 CPU error indicator 13 NMI button
5 Memory error indicator 14 RST button (Reset)
6 Fan error indicator 15 ID button
7 ID indicator 16 USB 3.0 connector
8 CSS indicator 17 USB 2.0 connector
9 Global Error indicator
⑯⑰
①
⑦
⑥
⑤
④
③
② ⑩⑨
⑧
⑪
⑫⑬⑭⑮
