62 Operating Manual TX140 S1
Starting up and operation
6.2 Control elements and indicators
6.2.1 Front of the server

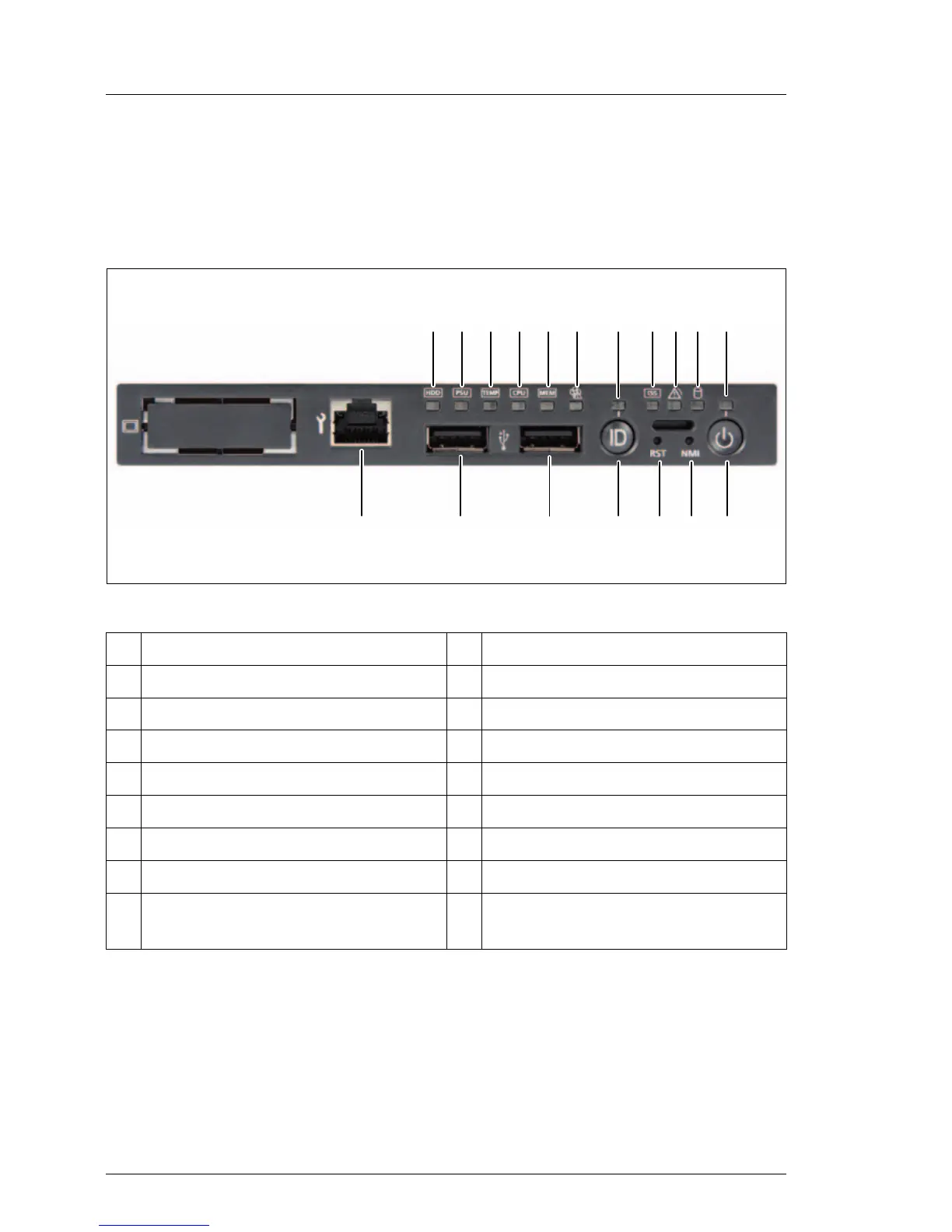

Figure 8: Front panel
I The meaning of the local diagnotsic indicators (1) - (6) is discribed in the
"PRIMERGY TX140 S1 Upgrade and Maintenance manual".
1 HDD error indicator 10 HDD/SSD activity indicator
2 PSU error indicator 11 Power-on indicator
3 Temperature error indicator 12 On/Off button
4 CPU error indicator 13 NMIbutton
5 Memory error indicator 14 REST button
6 Fan error indicator 15 ID button
7 ID indicator 16 USB connector
8 CSS indicator 17 USB connector
9 Global Error indicator 18 Front management LAN
connector (optional)
