70 Operating Manual TX140 S1
Starting up and operation
LAN indicators

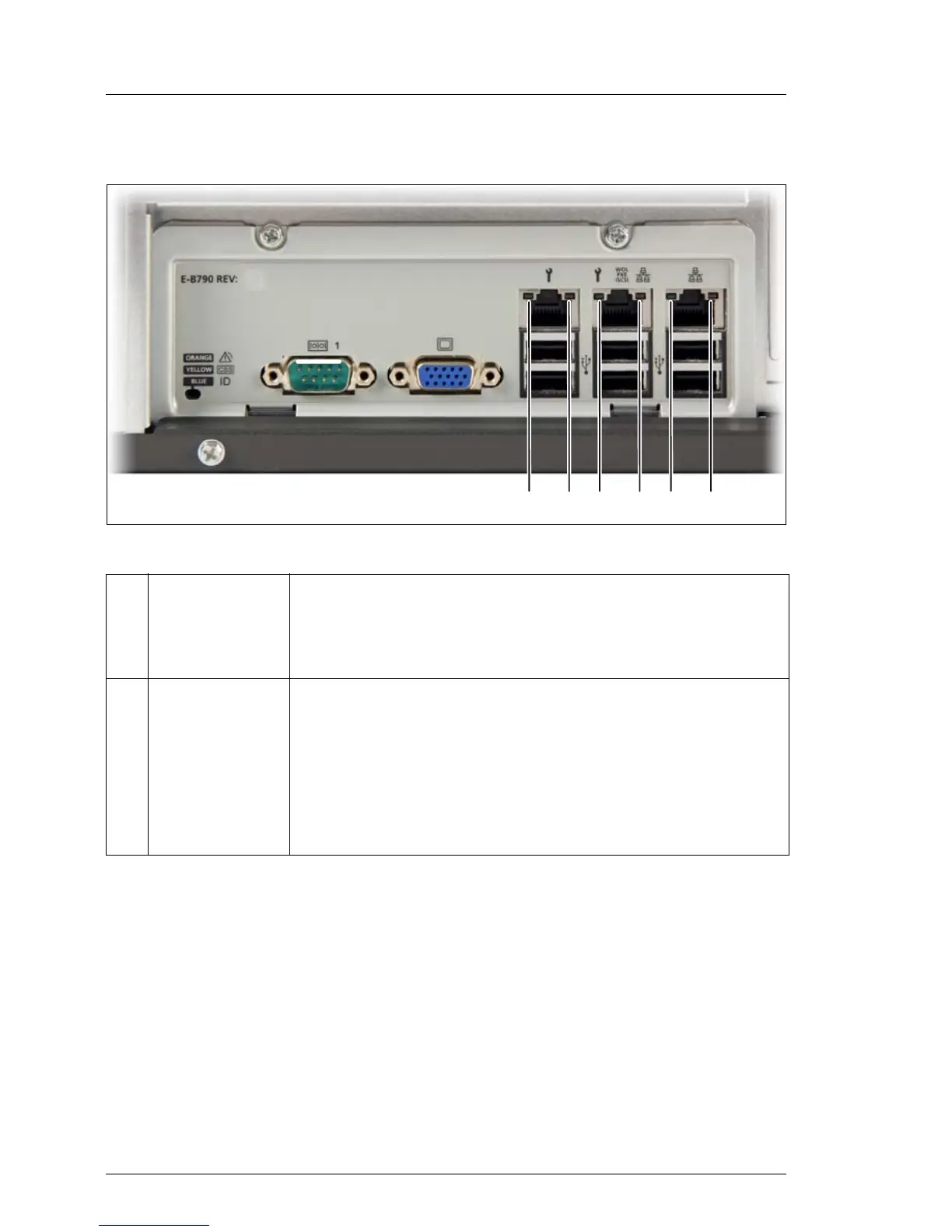

Figure 12: Indicators on the connector panel: LAN indicators
I Depending on the settings in the BIOS, the shared LAN connector may
also be used as a service LAN connector. You will find further information
in the "D3049 BIOS Setup Utility for PRIMERGY TX140 S1 / TX120 S3"
manual.
1LAN
link/transfer
Steady green signal when a LAN connection exists.
Remains dark when no LAN connection exists.
Flashes green when LAN transfer takes place.
2 LAN speed ( Steady yellow signal in the event of a LAN transfer rate
of 1 Gbit/s
Steady green signal in the event of a LAN transfer rate
of 100 Mbit/s.
Remains dark in the event of a LAN transfer rate of
10 Mbit/s.
/ 0
/ 0
/ 0
