TX2550 M4 Operating Manual 59
6 Starting up and operation
V CAUTION!
Follow the safety instructions in chapter "Important information" on
page 33.
6.1 Access to the drives (floorstand model)
6.1.1 Enabling access to the accessible drives

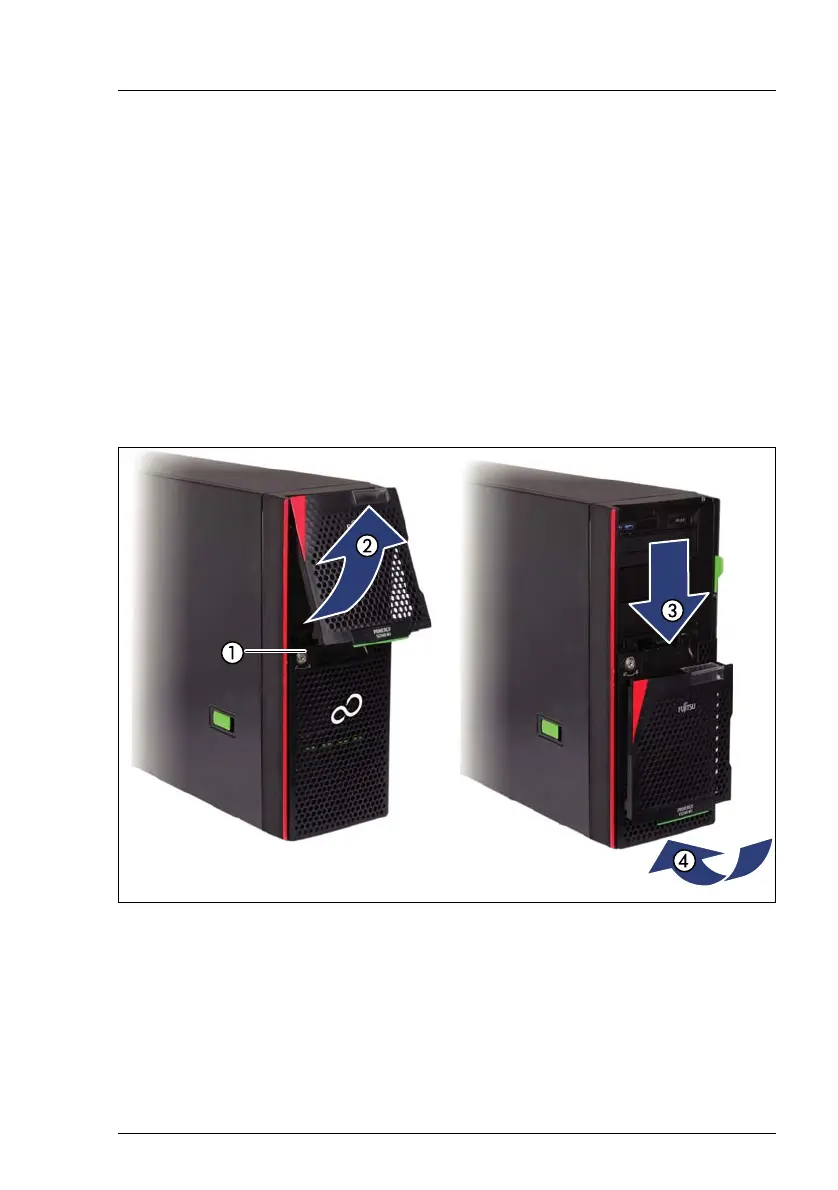

Figure 7: Removing the drive cover and placing it on the HDD cover
Ê Unlock the server (1).
Ê Remove the drive cover (2).
Ê Place the accessible drive bay as shown (3).
Ê Push down the drive cover in the direction of the arrow (4).
