72
Operating Manual
TX2550
M4
St
arting up
and operation
6.3
ID card

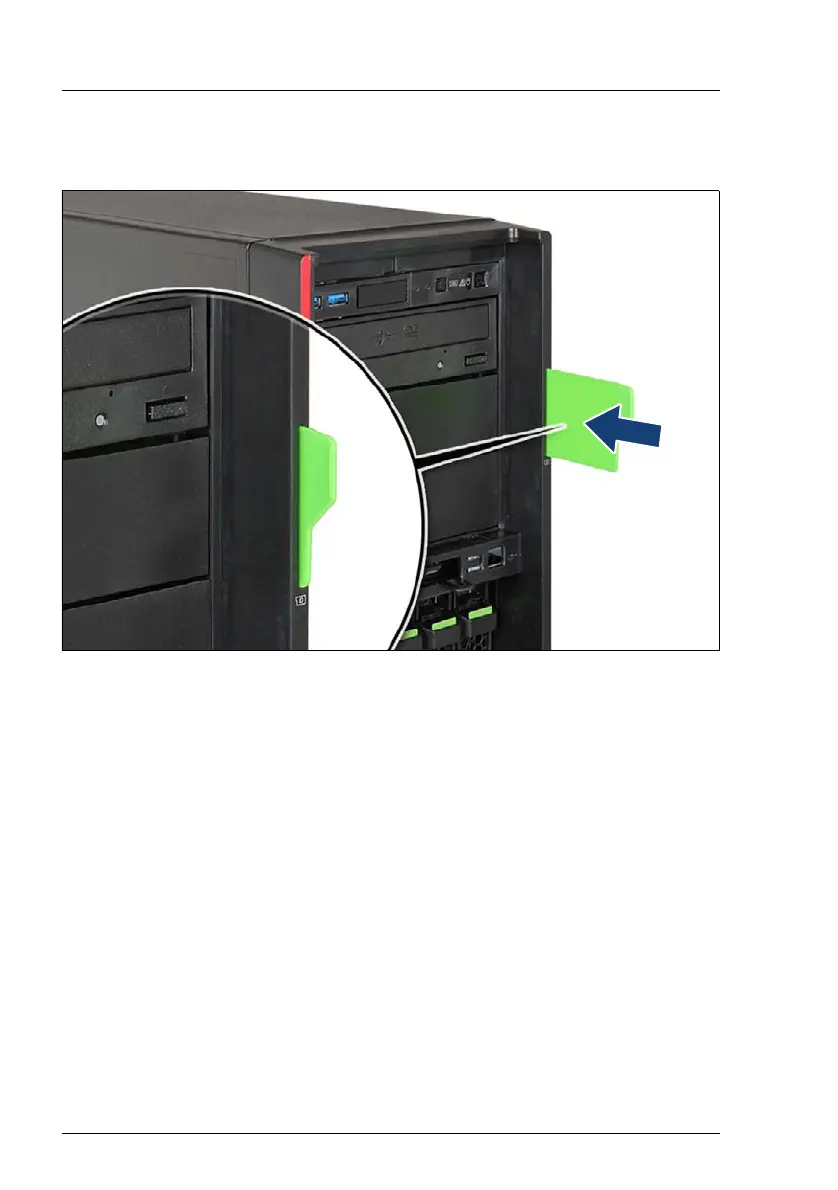

Figure 16: ID c
ard
Y
ou can pull out the ID card as far as it will go and pus
h it back again.
The ID card contains various
system information, such as the product name,
serial number
, order number
,
MAC addresses and DNS name (
for Japan, only
the product name and the serial number).
71
73
