70 Operating Manual TX2550 M4
Starting up and operation
LAN indicators

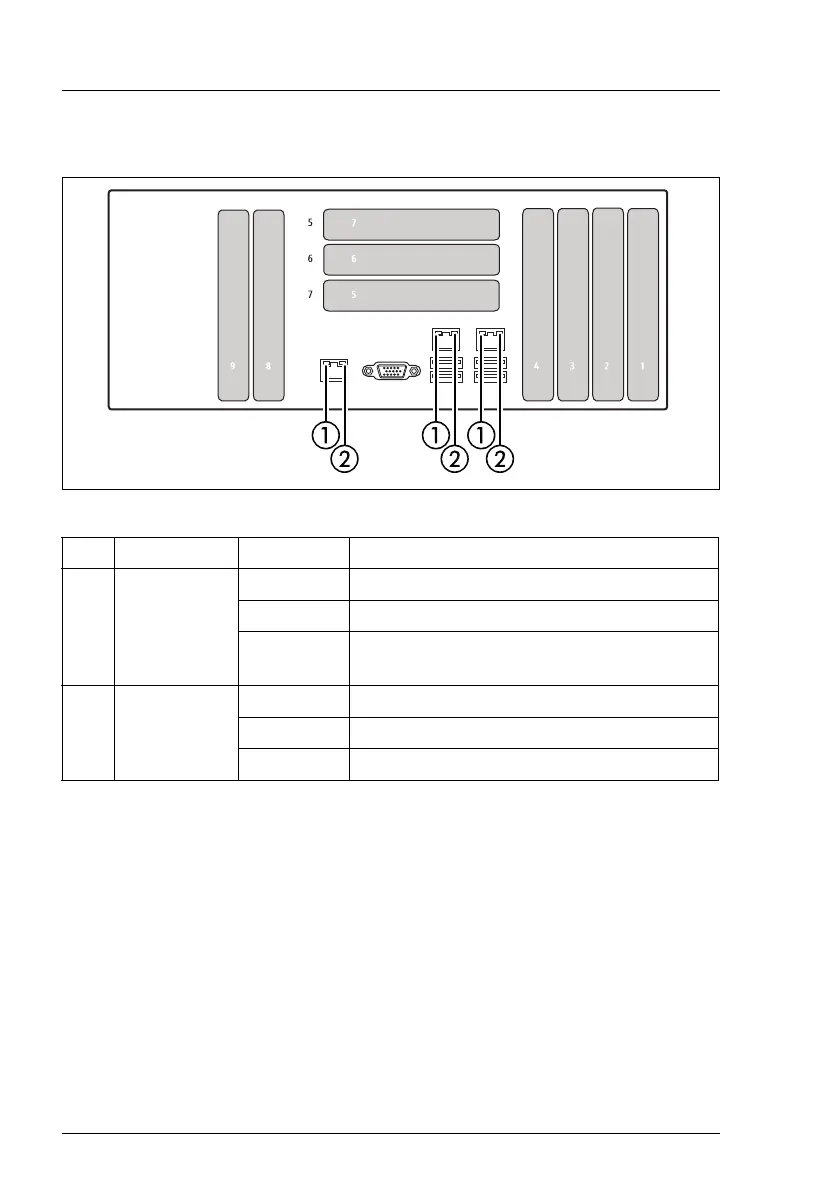

Figure 14: LAN indicators
Pos. Indicator Status Description
1
LAN
link / transfer
indicator
green on A LAN connection has been established.
off LAN is not connected.
green
flashing
LAN data transfer is in progress.
2
LAN speed
indicator
yellow on Data traffic at a transfer rate of 1 Gbit/s.
green on Data traffic at a transfer rate of 100 Mbit/s.
off Data traffic at a transfer rate of 10 Mbit/s.
