Model: ROG12KMCDN

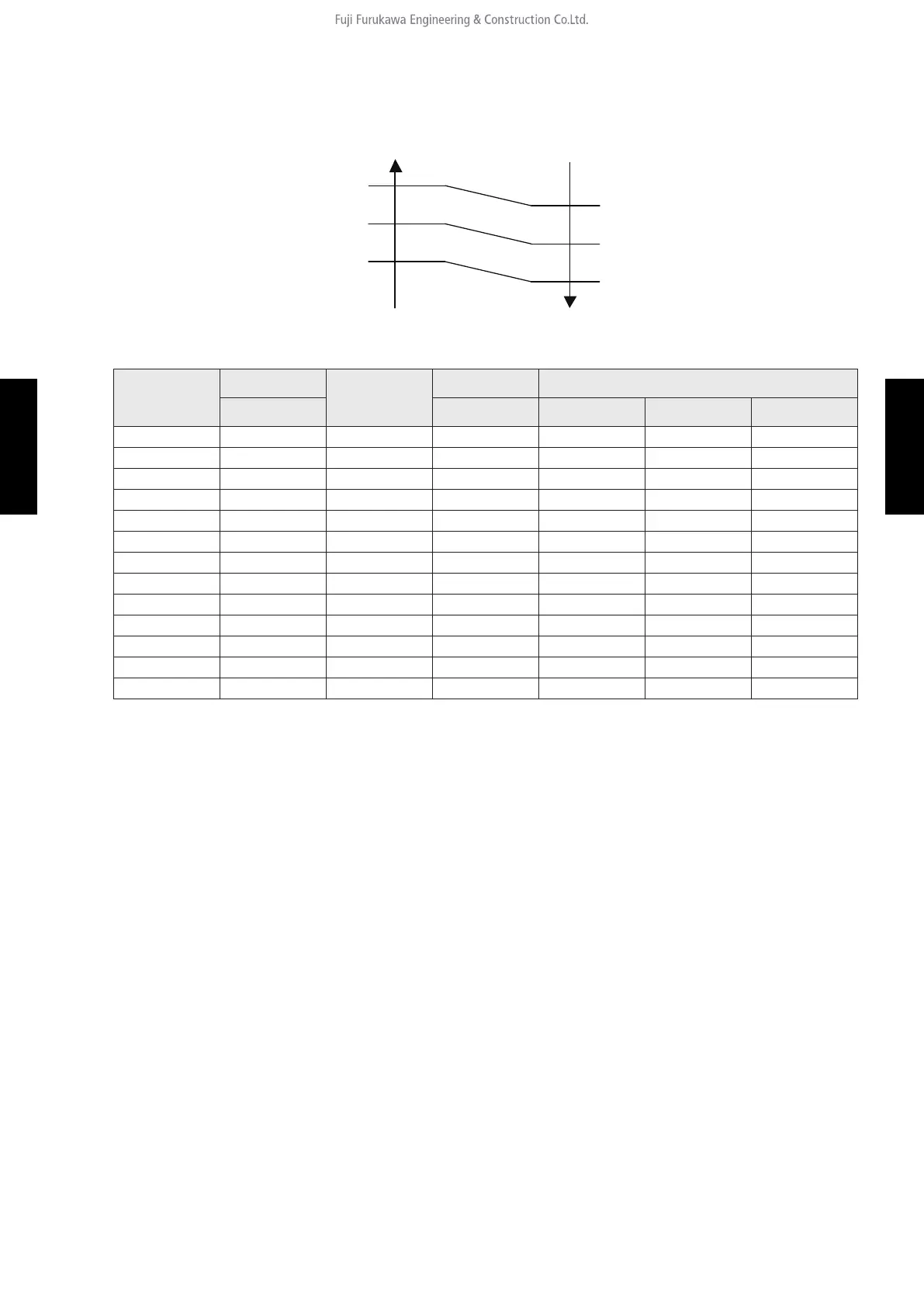

Fan speed is defined by outdoor temperature and compressor frequency.
• Outside air temperature zone selection
21°C
Outside air
temperature rises
Z zone
Y zone
F zone
G zone
Outside air
temperature drops
12°C
2°C
19°C
10°C
0°C
Unit: rpm
Fan step
Cooling
Heating
Dry Cooling or dry at low outdoor temp.
Y zone Y zone Z zone F zone G zone
S-HIGH2 — 1,100 — — — —
S-HIGH1 1,050 1,100 — — — —
HIGH 1,050 870 — — — —
10 — 870 — — — —
9 1,050 870 1,050 850 320 270
8 1,050 850 1,050 850 320 270
7 940 680 940 770 270 270
6 890 570 890 630 230 210
5 770 500 770 440 200 180
4 630 470 630 320 200 180
3 510 420 510 320 200 180
2 400 420 400 320 200 180
1 400 420 400 320 200 180
NOTE: After defrost control on the heating mode, the fan speed is kept higher regardless of the
compressor frequency.
Fan speed after defrost control: 1,100 rpm
3-2. Outdoor fan control - (04-14) - 3. Fan control
CONTROL AND
FUNCTIONS
CONTROL AND
FUNCTIONS
