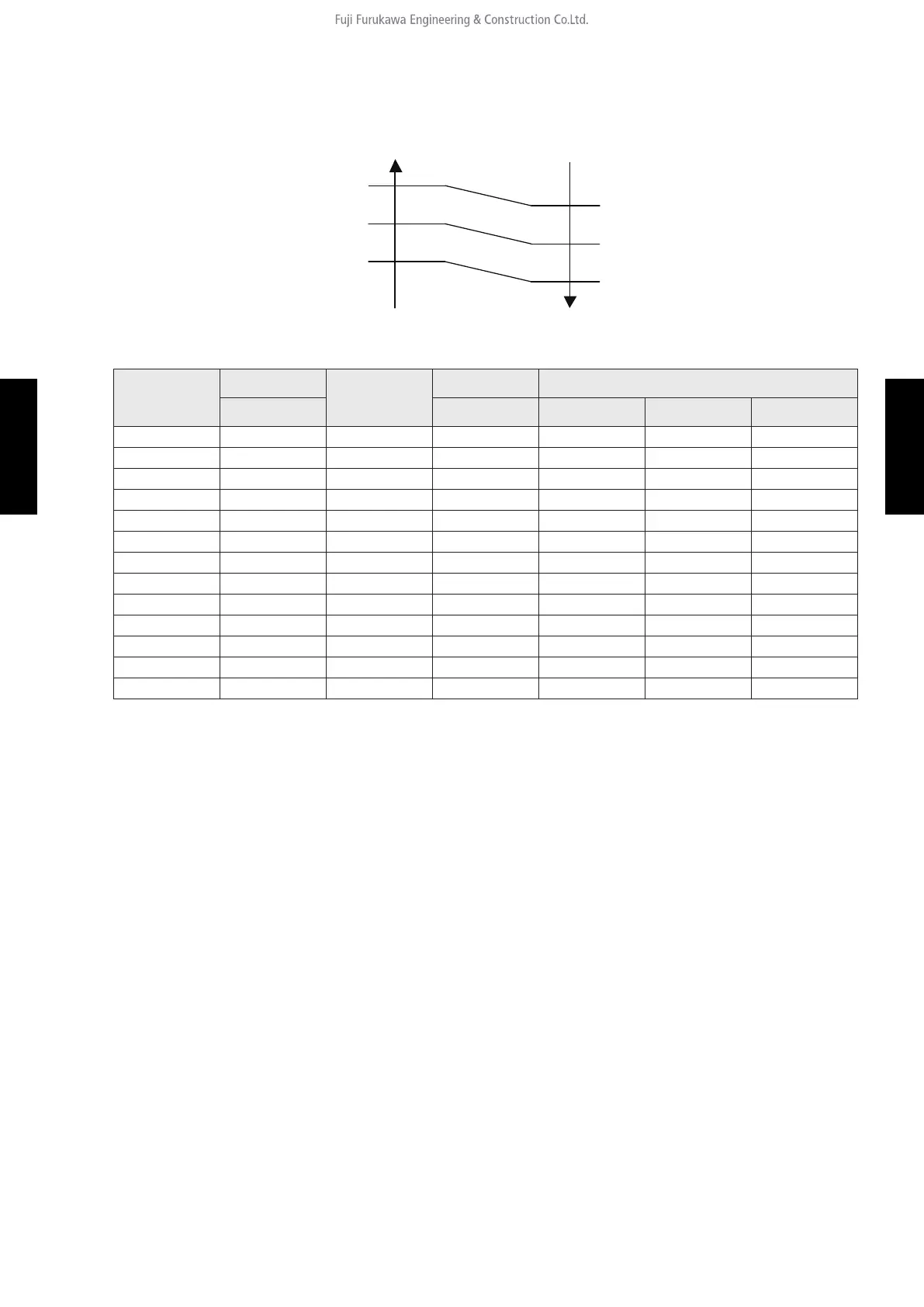

Model: ROG14KMCDN
Fan speed is defined by outdoor temperature and compressor frequency.
Outside air temperature zone selection
21°C
Outside air
temperature rises
Z zone
Y zone
F zone
G zone
Outside air
temperature drops
12°C
2°C
19°C
10°C
0°C
Unit: rpm
Fan step
Cooling
Heating
Dry Cooling or dry at low outdoor temp.
Y zone Y zone Z zone F zone G zone
S-HIGH2 1,200
S-HIGH1 1,180 1,200
HIGH 1,180 1,200
10 1,170
9 1,180 1,170 1,180 1,180 1,180 1,180
8 1,140 1,000 1,140 600 310 220
7 900 860 900 600 310 220
6 800 750 800 450 260 200
5 690 700 690 320 230 180
4 610 610 610 320 230 180
3 550 570 550 320 230 180
2 450 510 450 320 230 180
1 400 470 400 320 230 180
NOTE: After defrost control on the heating mode, the fan speed is kept higher regardless of the
compressor frequency.
Fan speed after defrost control: 1,200 rpm
3-2. Outdoor fan control - (04-15) - 3. Fan control
CONTROL AND
FUNCTIONS
CONTROL AND
FUNCTIONS
