SP1120\1125\1130 Consumable Replacement and Cleaning
Instructions
14
CG00002-291501
ATTENTION

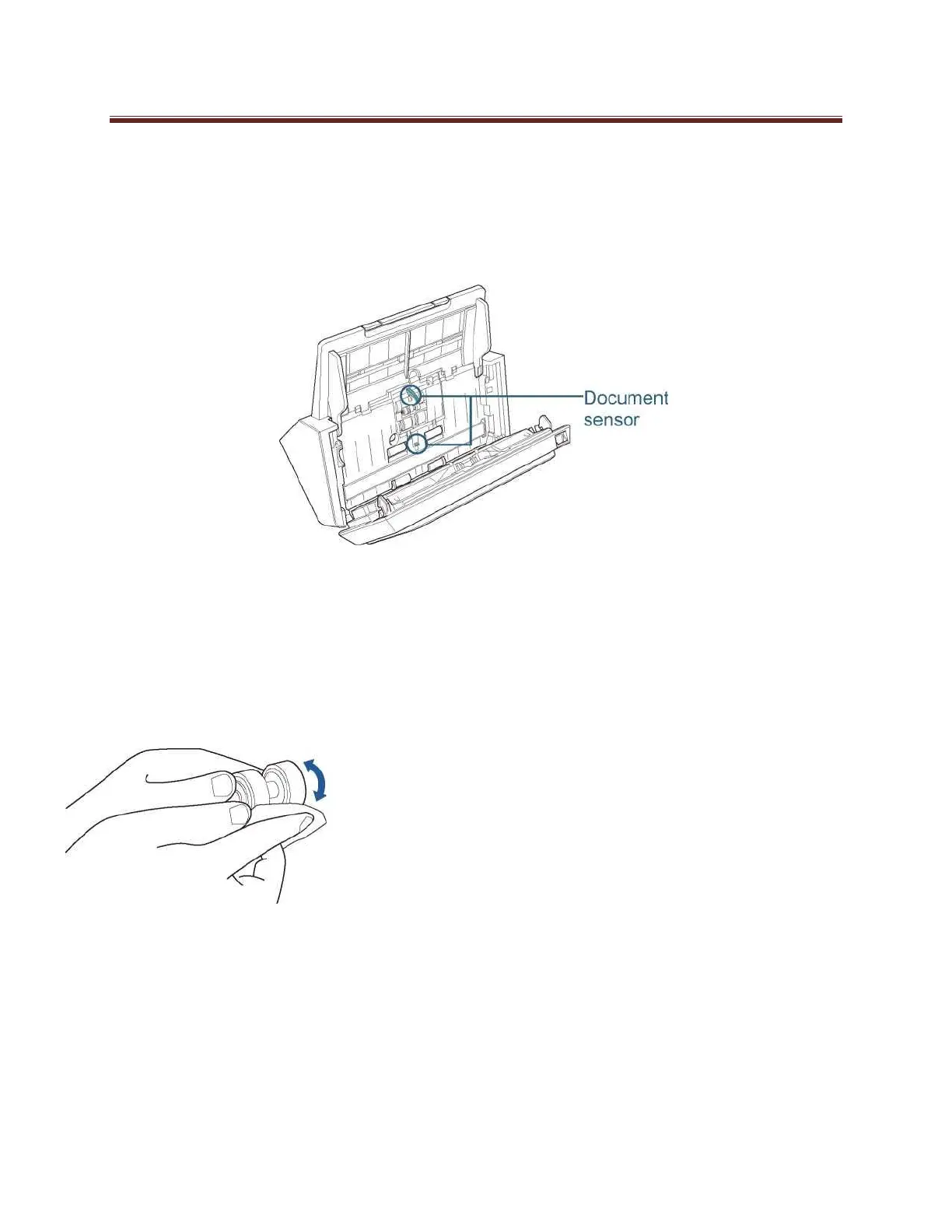

Make sure that the cloth does not get caught and damage the document sensors.
Brake roller (x 2)
Remove the roller from the scanner.
Gently wipe the surface of the rollers
Pick roller (x 6)
Gently wipe the surface as you rotate the roller manually, taking care not
to damage the roller surface. Make sure that it is cleaned properly
because residue on the roller will affect the feeding performance.
Plastic idler roller (x 4)
Gently wipe the surface as you rotate the roller manually, taking care
not to damage the roller surface. Make sure that it is cleaned properly
because residue on the roller will affect the feeding performance.
Glass (x 2)
Gently wipe dirt and dust off the surface of the glass sections.
ATTENTION
Vertical streaks may appear on a scanned image when the glass is dirty.
