When using signal amplifiers
When setting the address of the signal amplifier,
please use the factory setting.
(See the installation manual of the signal amplifier)
When the system is normal, nothing will be displayed on
the 7 segment display.
When ERROR is displayed, inspect the units.

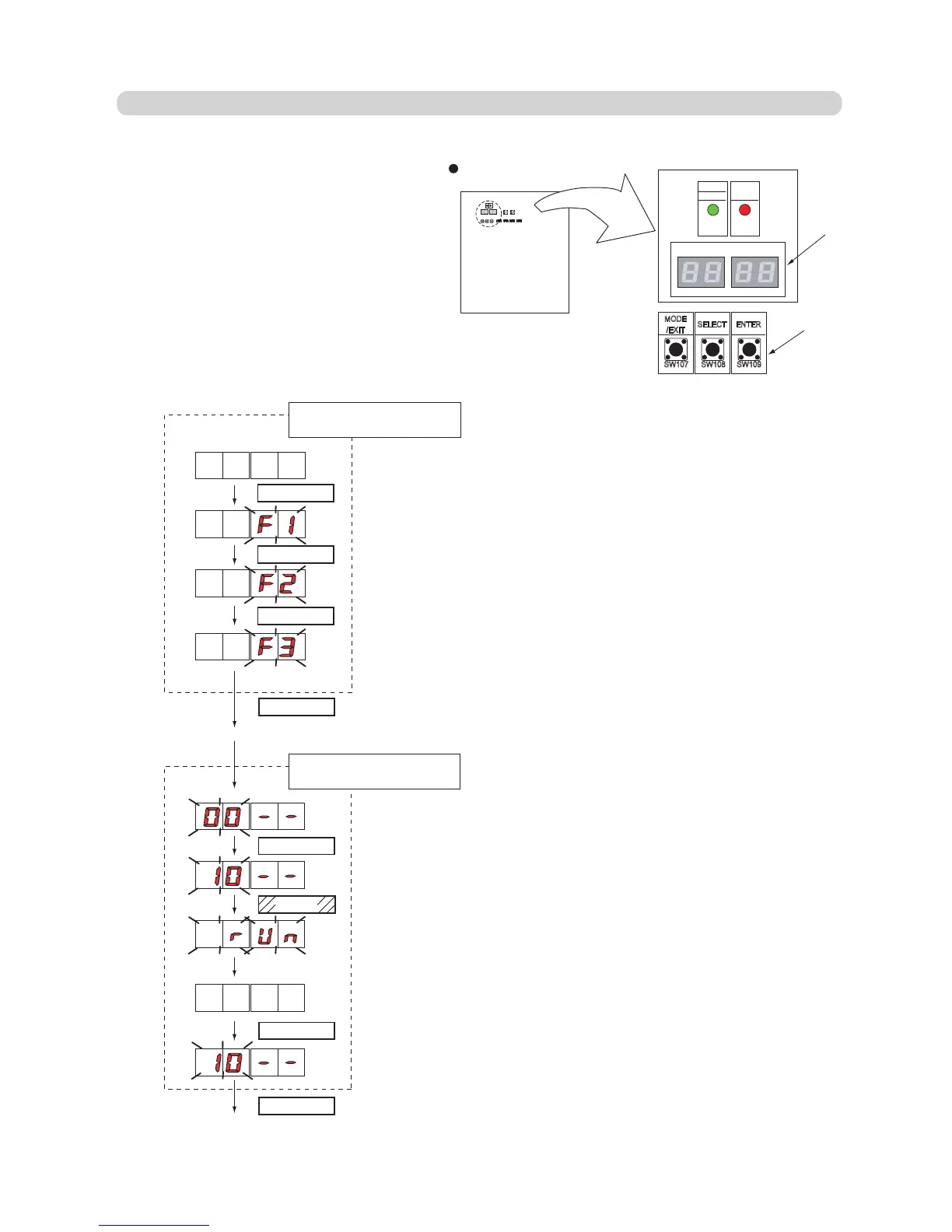

Use the “MODE/EXIT”, “SELECT”,
and “ENTER” buttons on the outdoor unit
Main PCB to configure settings according to the
procedures below.
1: FUNCTION Setting
First 2 digits Last 2 digits
(the display when the main power is turned on)
(When [F4] to [F9] are displayed, continue to press the "SELECT" button
until [ F3 ] is displayed)
MODE/EXIT
SELECT
SELECT
ENTER
SELECT
ENTER
Automatic address setting for
signal amplifiers
Press the “SELECT” button until "10" is displayed
Press the “ENTER” button for more than 3 seconds
* Setting is complete when the number of unit is displayed
End
ENTER
MODE/EXIT
SWITCH POSITION
SW107 SW108 SW109
MODE
/EXIT
SELECT ENTER
LED101
(GREEN)
POWER
MODE
LED105 LED104
LED102
(RED)
ERROR
To Next Page
