Fujitsu WOYA080LFCA Design & Technical Manual

- (CS01 - 01) -
Control system
CONTROL
SYSTEM
CONTROL
SYSTEM

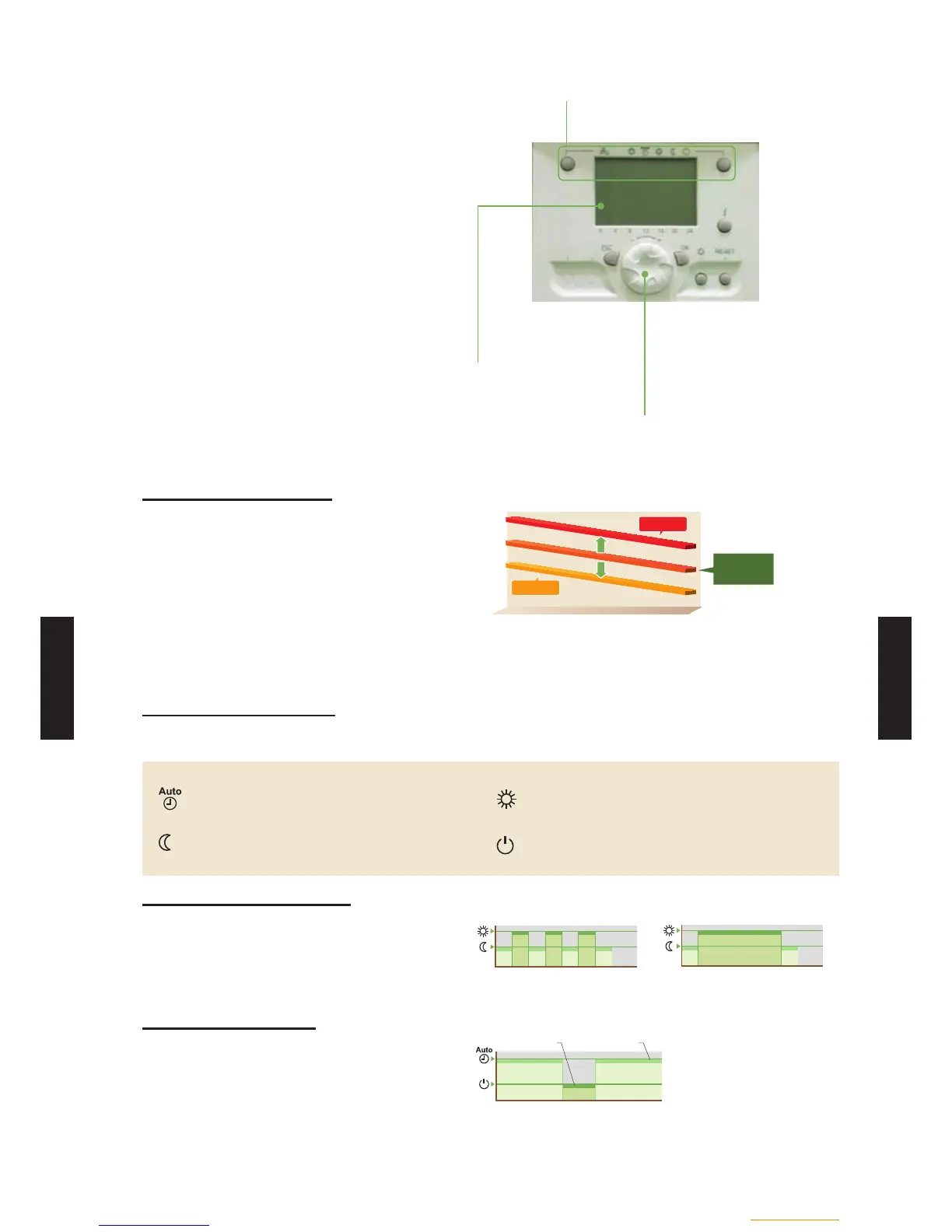

FEATURES1.
SMART & COMFORT CONTROL

The outdoor temperature is detected by sensor
and the heating water temperature is controlled
automatically.
The setting of room temperature and operation
mode can be easily set. A wide range of
control from heating to hot water supply and
swimming pool is possible by combining with
various optional parts.
Simple operation mode setting
•Selecting the heating mode
Large LCD display
•Operation status display
•Error display / Error history
Navigation and setting
•Selecting the heating menu
•Setting program timer
Comfort
z
Flexible heating circuit
Automatic hot water temperature control
matched to the application can be set.
In addition, set temperature coefcient offset
can be adjusted easily high or low side
matched to the usage conditions.
+
4.5°C
-
4.5°C
Setting
heating curve
Leaving water
temperature (°C)
Outdoor temperature (°C)
High
High
Low
Low
Convenience
z
Programmed operation
The setting of programmed operation can be easily set. -
Changing the heating mode linked with time is possible. -
Heating mode
Automatic mode
Comfort/Reduce mode switching automatically
according to outdoor temperature
Comfort mode
Constant comfort temperature
Reduce mode
Constant reduce temperature
Protection mode
Stand-by mode with anti-frost protection
Day-Weekly timer setting
The day-weekly timer can be set up for up to -
3 times per day.
Allows separate settings for each day of the -
week.
6 9 12 15 18 21 24
6 9 12 15 18 21 24
6 9 12 15 18 21 24
6 9 12 15 18 21 24
Monday-Friday
Time
Time
Saturday-Sunday
Holiday timer setting
The holiday timer can be set up for up to 8 -
periods.
If you are absent for a long time in the winter, -
freezing of room can be prevented.
11 12 1 2 3
Holiday timer Day-Weekly timer
Date

Fujitsu WOYA080LFCA Specifications

General

Brand	Fujitsu
Model	WOYA080LFCA
Category	Heat Pump
Language	English
