Fujitsu WOYA080LFCA Design & Technical Manual

- (OU01 - 14) -
Outdoor unit / Single phase
OUTDOOR UNIT WO

G112-140LCTA
OUTDOOR UNIT WO

G112-140LCTA

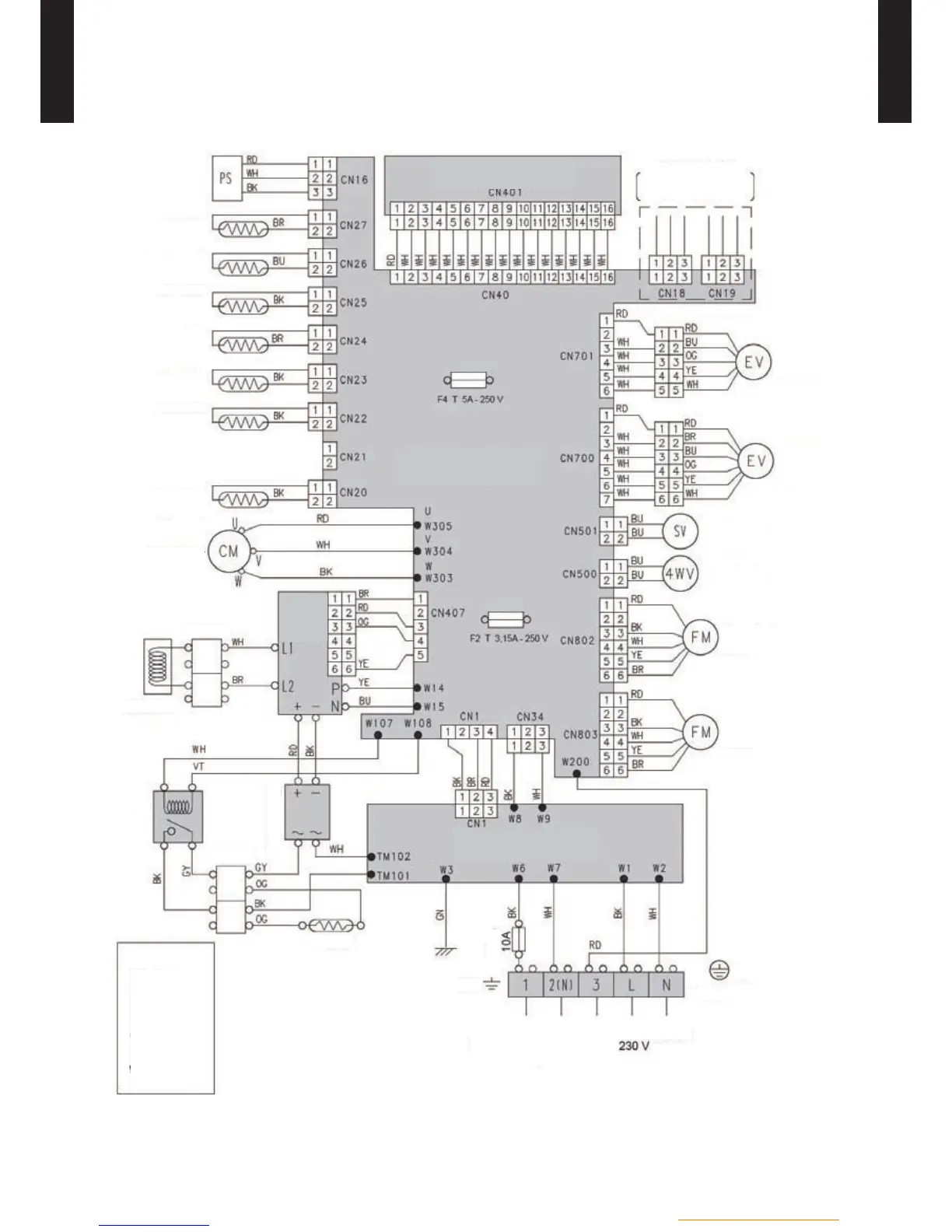

WIRING DIAGRAM5.
WIRING DIAGRAM5-1.
MODELS : WO
 
G112LCTA, WO

G140LCTA
BK Black
BN Brown
BU Blue
GN Green
GY Grey
OG Orange
RD Red
VT Purple
WH White
YE Yellow
Pressure
sensor
Thermistor
(compressor)
Thermistor
(outdoor)
Thermistor
(pipe)
Thermistor
(discharge)
Thermistor
(heat sink)
Thermistor
(pipemid)
Thermistor
(expansion)
Compressor
Terminal
Choke coil
Relay
Diode bridge
Terminal
Color Codes
Posistor
Active
Filter
Module
Printed Circuit Board
(Main)
Printed Circuit Board
(Display)
Fuse
Fuse
Printed Circuit Board
(Filter)
Fuse
Earth
Interconnection
between the outdoor unit
and the hydraulic unit.
Power source
Terminal
Option (connector)
Refer to 5-2. EXTERNAL
INPUT & OUTPUT
Expansion
valve coil
Expansion
valve coil
(injection)
Solenoid coil
(injection)
Solenoid coil
Fan motor 1
(upper)
Fan motor 2
(lower)
Earth
