Fujitsu WPYA050LE User Manual

- 11 -

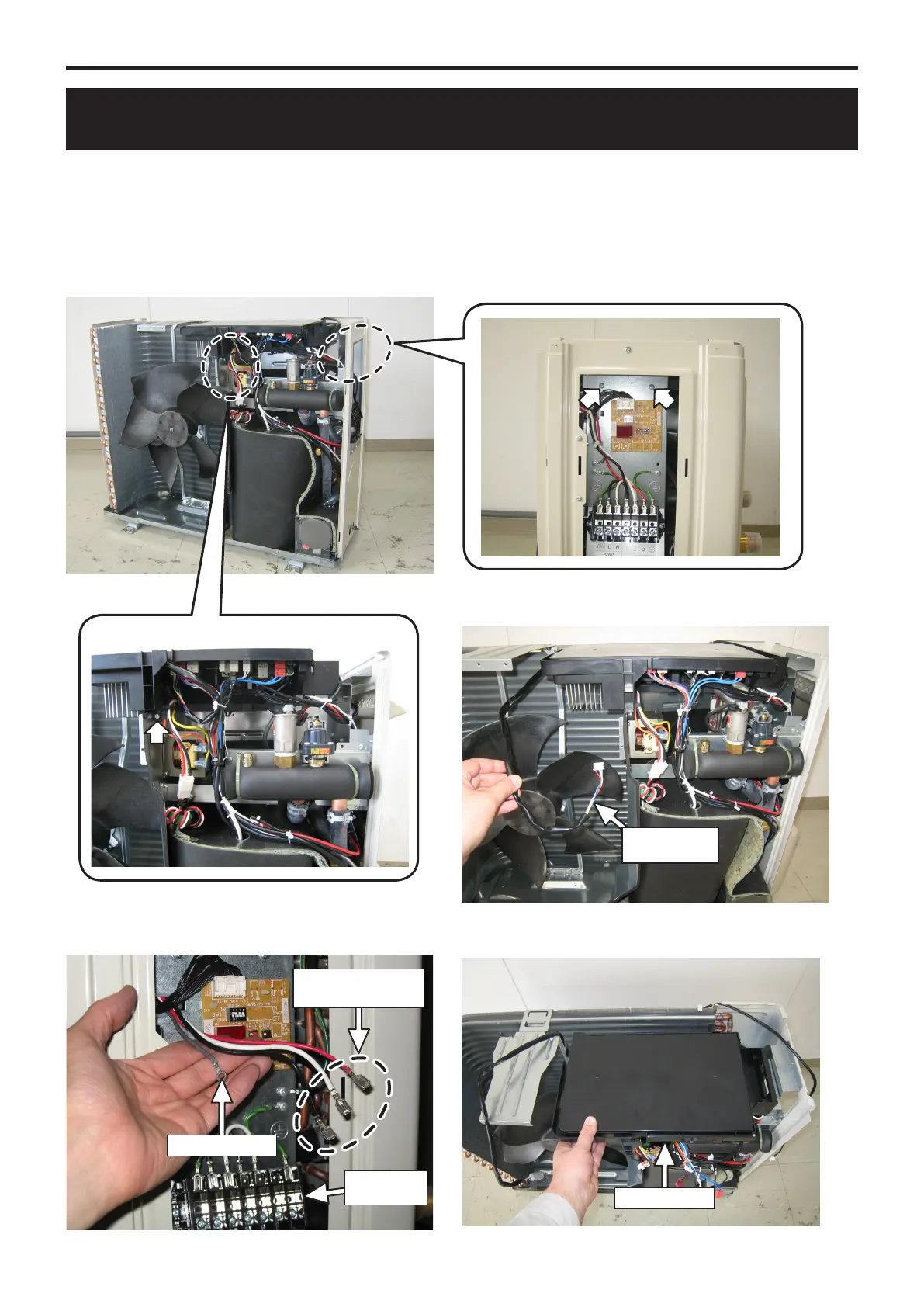

HOW TO DETACH PCB(CONTROLLER)
TROUBLESHOOTING GUIDE
5. Unscrew (3pcs). [See picture 5-1,5-2,5-3]
6. Disconnect lead wire for FAN MOTOR from CASE OF PCB. [See picture 6]
7. Disconnect 3 lead wires (black, white, red) from TERMINAL BLOCK. Unscrew the gray lead wire. [See picture 7]
8. Disconnect all lead wires from PCB(CONTROLLER) and move CASE OF PCB forward. [See picture 8]
[picture 6]
[picture 8]
[picture 7]
[picture 5-1] [picture 5-2]
[picture 5-3]
lead wire for
FAN MOTOR
TERMINAL
BLOCK
3 lead wires
(black, white, red)
gray lead wire
CASE OF PCB
