TROUBLESHOOTING GUIDE
HOW TO ASSEMBLE PCB(CONTROLLER)
• Take the reverse procedure of "HOW TO DETACH PCB(CONTROLLER)".
• Be sure to conrm 3 lead wires (black, white, red) and the gray lead wire are hooked. [See picture 12-1]
• Ensure that PCB (DISPLAY) is connected to PCB (CONTROLLER) properly. [See picture 12-2]
• Be sure to put FAN MOTOR lead wires in the passage along the side of CASE OF PCB. [See picture 12-3]
• Bind lead wires as they were. [See picture 12-4]

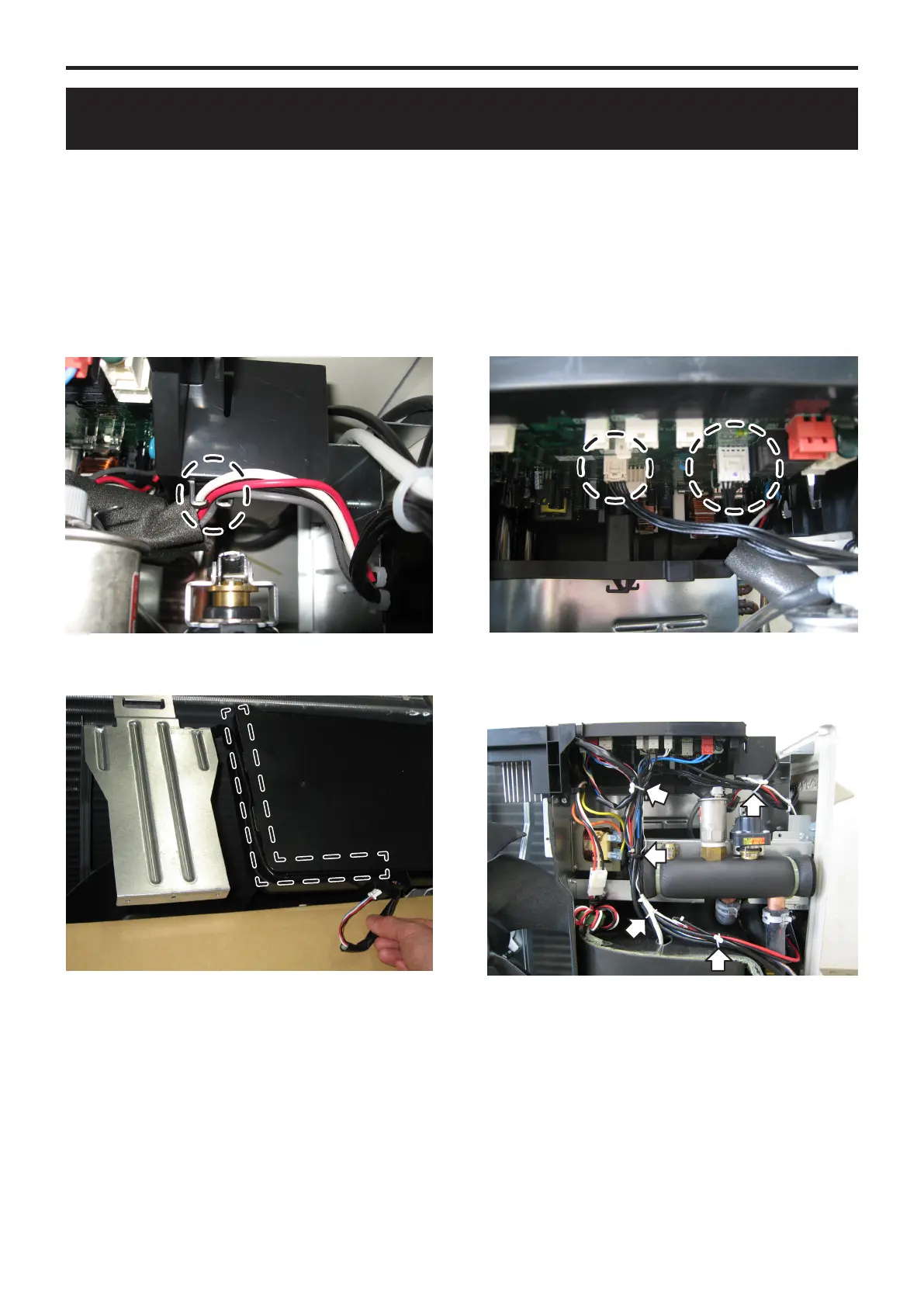

[picture 12-1] [picture 12-2]
[picture 12-3] [picture 12-4]
