FULLER O’BRIEN PRO 4030 - 2000 psi Pump Assembly Service and Parts

16
308–526

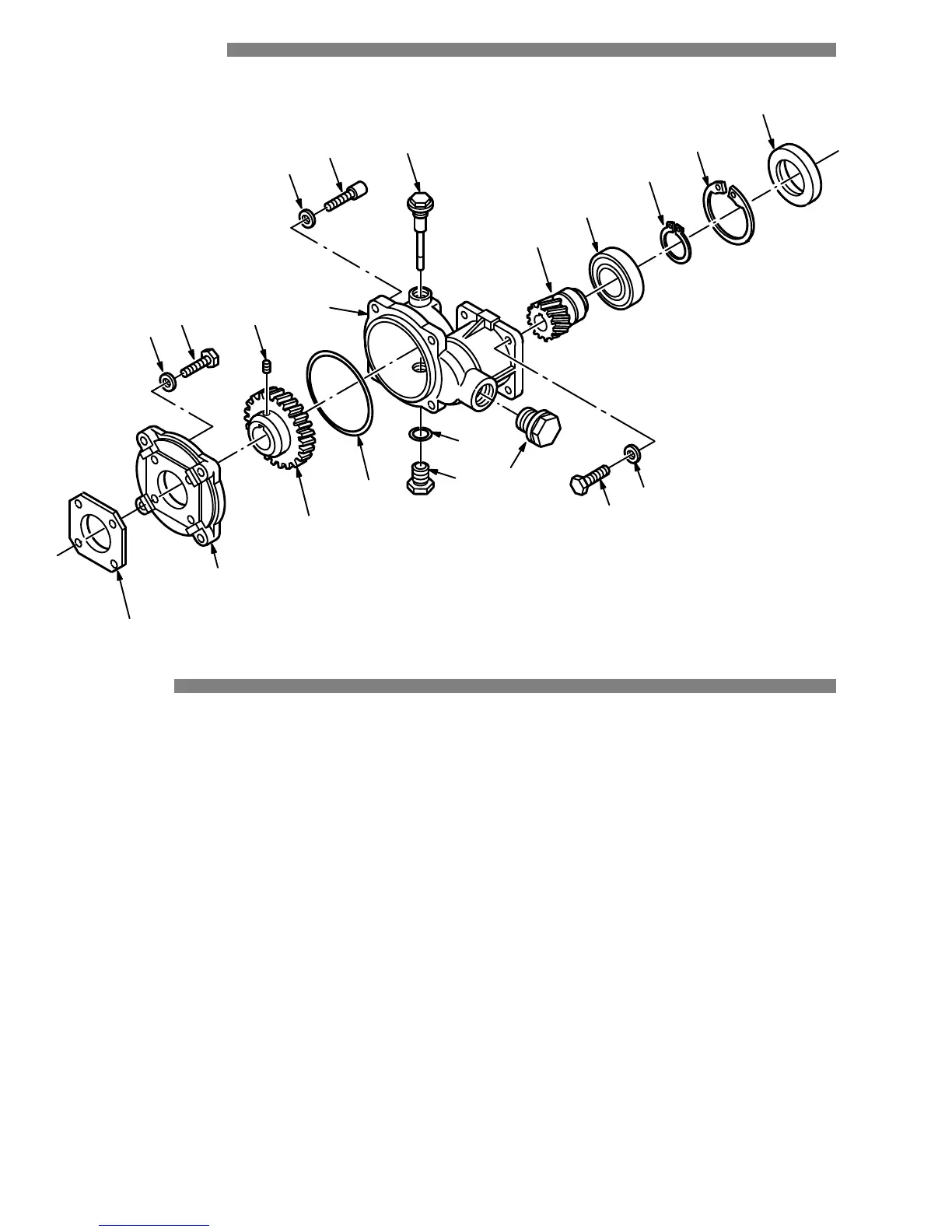

PARTS DRAWING
802–266 Gear Reducer (PRO 3515)
20
19
8
9
6
14
13
12
11
10
18
8
17
16
15
5
4
2
1
3
7
PARTS LIST
802–266 Gear Reducer (PRO 3515)
REF PART
NO. NO. DESCRIPTION QTY
1 802–350 GASKET 1
2 802–351
COVER, Mounting 1
3 802–334 SCREW
, Set 1
4 802–352
GEAR, Pump 1
5 802–353 O–RING 1
6 801–659 DIPSTICK 1
7 802–354
CASE, Mounting 1
8 100–527 W
ASHER, Lock 8
9 802–342 SCREW 4
10 802–355
SEAL, Oil 1
11 802–356
RING, Snap 1
12 802–357
RING, Snap 1
13 802–358 BEARING 1
14 802–359
GEAR, Engine 1
15 801–484 CAP
, G 3/8 BSP 1
16 802–344 O–RING 1
17 802–345
GAUGE, Sight 1
18 802–331 BOLT
, 5/16–24 x 1” 4
19 802–360 SCREW 4
20 803–278
SEAL, Oil 4
