FULLER O’BRIEN PRO 4030 - Pump Service Procedures; Servicing Pump Valves and Plungers

18
308–526

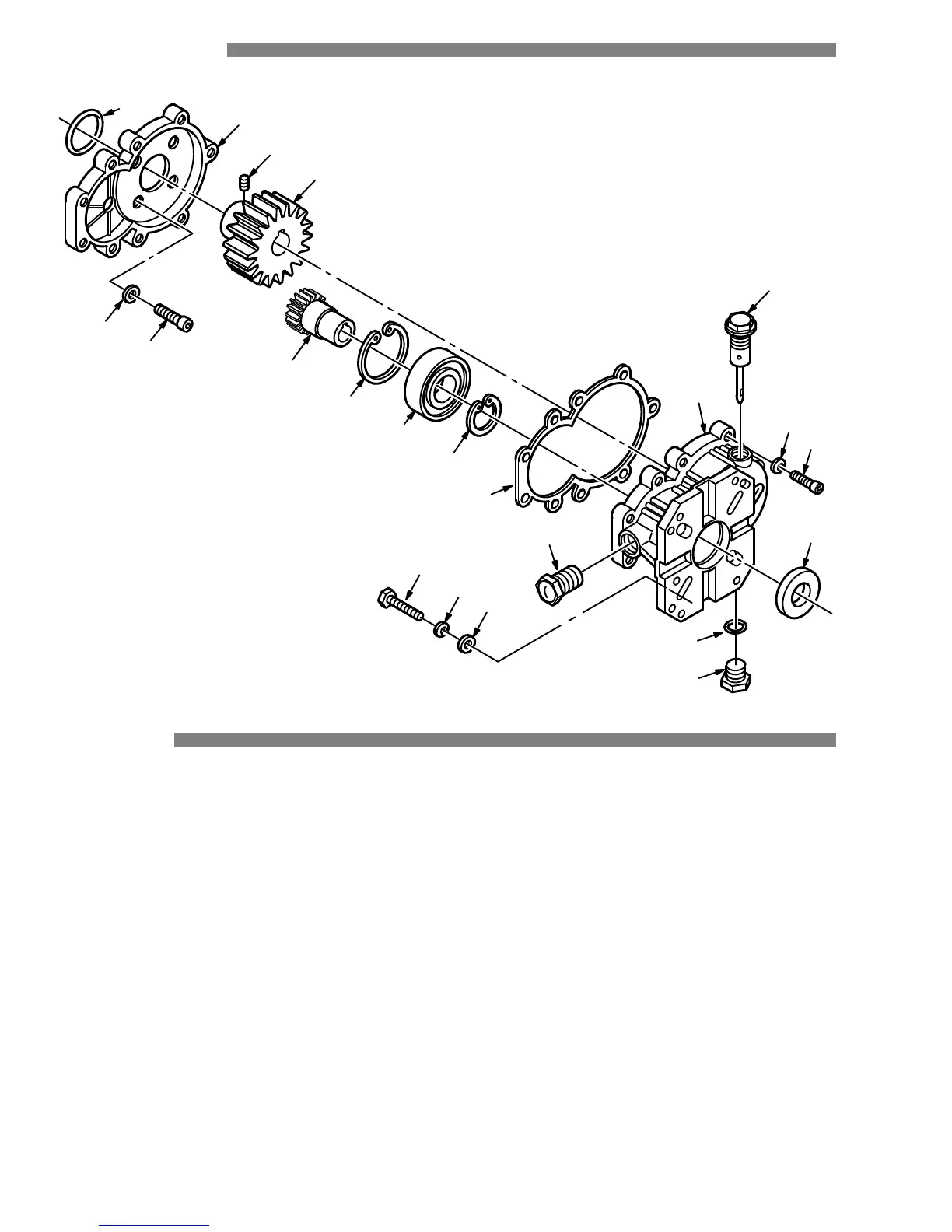

PARTS DRAWING
802–143 Gear Reducer (PRO 4020)
1
2
3
4
21
20
5
6
7
8
9
19
12
18
17
15
16
12
13
10
14
11
PARTS LIST
802–143 Gear Reducer (PRO 4020)
REF PART
NO. NO. DESCRIPTION QTY
1 802–332 O–RING 1
2 802–333
COVER, Mounting 1
3 802–334 SCREW
, Set 1
4 802–335
GEAR, Pump 1
5 802–336
GEAR, Engine 1
6 802–337
RING, Snap 1
7 802–338 BEARING 1
8 802–339
RING, Snap 1
9 802–340 GASKET 1
10 801–475 DIPSTICK 1
11 802–341
CASE, Mounting 1
12 100–527 W
ASHER, Lock 13
13 802–342 SCREW 9
14 802–343
SEAL, Oil 1
15 802–344 O–RING 1
16 801–484 CAP
, G 3/8 BSP 1
17 802–345
GAUGE, Sight 1
18 100–214 W
ASHER, Flat 4
19 802–331 BOLT
, 5/16–24 x 1” 4
20 802–346 SCREW 4
21 802–347
SEAL, Oil 4
