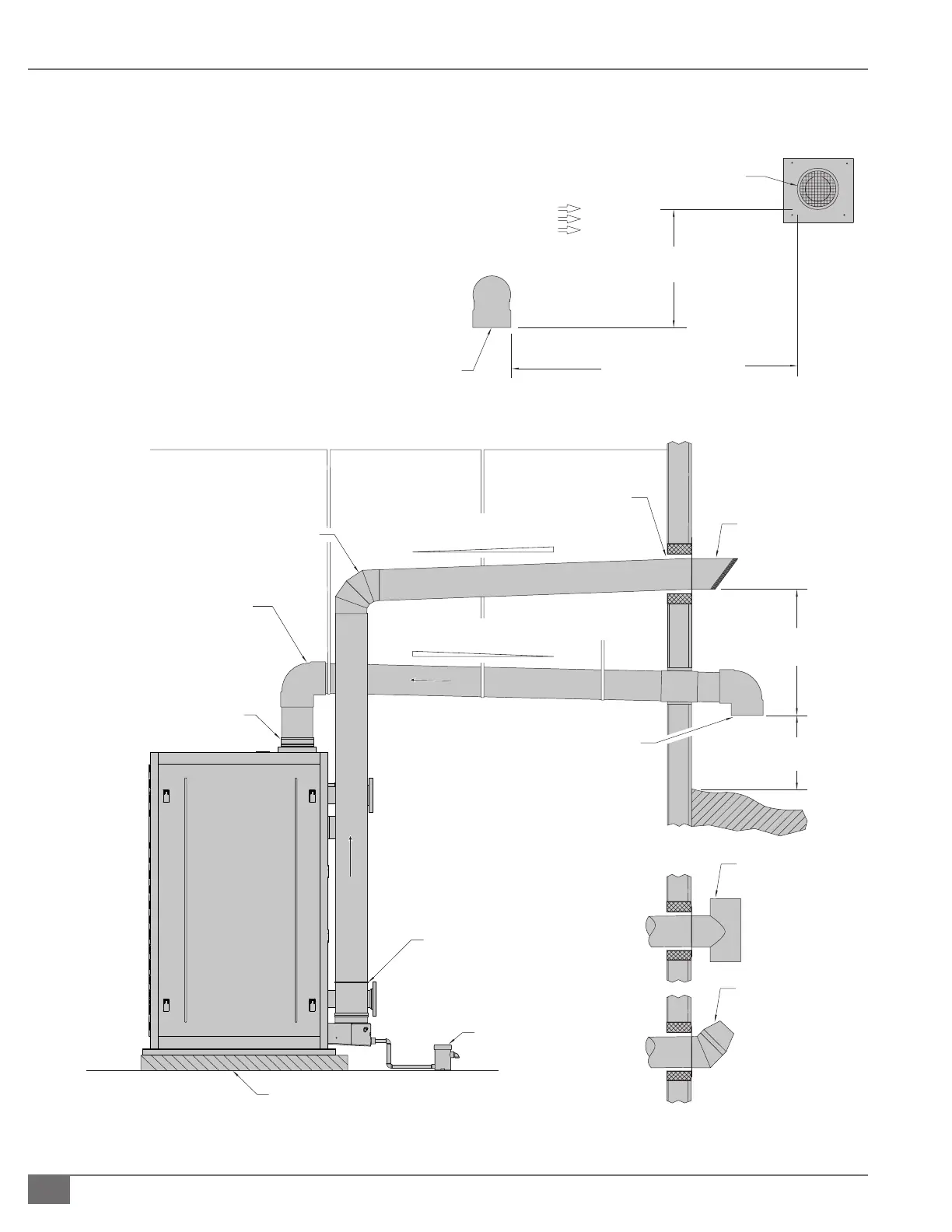

FIGURE 24  SIDEWALL PENETRATIONS DETAIL
SCH40 PVC PIPE (TYPICAL)
REFERENCE TABLE 1 FOR MIN CAI DIAMETER
EN
EN
D
D
U
U
R
R
A
A
H
H
Y
Y
D
D
RONIC
RONIC
BOILER
BOILER
WALL TERMINATIONS DETAIL VIEW
EXHAUST STACK IS DOWNWIND
OF AIR INTAKE OPENING
CAUTION:
SEPARATE AIR INTAKE AND EXHAUST TERMINATIONS AS FAR AS
POSSIBLE TO PREVENT FLUE GAS RECIRCULATION (FGR) DURING
DIFFERENT WIND CONDITIONS.
FLUE GAS EXHAUST
DIRECTION OF FLOW
COMBUSTION AIR INTAKE (CAI)
DIRECTION OF FLOW
UL-1738 APPROVED
EXHAUST VENT MATERIAL
LEVEL HOUSEKEEPING PAD
MIN 4 INCH (102 CM) HEIGHT
CONDENSATE TRAP
MINIMUM RISE TO RUN RATIO:
1/4” PER FOOT (1 MM PER 48 MM)
UP TOWARDS TERMINATION
APPLIANCE ADAPTER
CONSULT FLUE MFG FOR SELECTION
REFERENCE TABLE 1 FOR FLUE GAS STACK DIAMETER
MINIMUM RISE TO RUN RATIO:
1/4” PER FOOT (1 MM PER 48 MM)
DOWN TOWARDS TERMINATION
OPENING TO BE MIN 1 FT (30 CM)
ABOVE NORMALLY EXPECTED
SNOW ACCUMULATION LEVEL
TYPICAL SIDE WALL PENETRATIONS
( SUGGESTED INSTALLATION CONFIGURATIONS )
COMBUSTION
AIR INLET 90° ELBOW
1/2 INCH x 1/2 INCH
(13 MM x 13 MM)
MESH SCREEN
NOTES:
1) HORIZONTAL SECTIONS MUST ADHERE TO A MINIMUM
1/4 INCH PER FOOT (1 MM PER 48 MM) RISE TO RUN RATIO
2) MAINTAIN A MINIMUM 9 INCH (229 MM) AIR SPACE
CLEARANCE TO COMBUSTABLES, WIRE, AND INSULATION
3) INSTALL SUPPORT STRAPS AT 5 FT (152 CM) HORIZONTAL
INTERVALS AND AT ELBOWS
DO NOT PLACE
INSULATION IN
REQUIRED AIR SPACE
FLUE GAS EXHAUST TERMINATION
(ALTERNATE TERMINATIONS BELOW)
MINIMUM 10 FT (305 CM) HORIZONTAL
AND 4 FT (122 CM) ABOVE THE
COMBUSTION AIR INLET TERMINATION
MINIMUM 4 FT (122 CM) ABOVE THE
COMBUSTION AIR INLET TERMINATION
MINIMUM 10 FT (305 CM)
HORIZONTAL AWAY FROM THE
COMBUSTION AIR INLET TERMINATION
FLUE GAS EXHAUST TERMINATION
COMBUSTION
AIR INLET 90° ELBOW
1/2 INCH x 1/2 INCH
(13 MM x 13 MM)
MESH SCREEN
FLEXIBILE RUBBER
PIPE COUPLING
FLUE GAS EXHAUST TERMINATION
TEE WHERE HIGH-WIND IS PRESENT
FLUE GAS EXHAUST TERMINATION
VELOCITY CONE FOR VAPOR PLUME
MITIGATION AWAY FROM BUILDING
