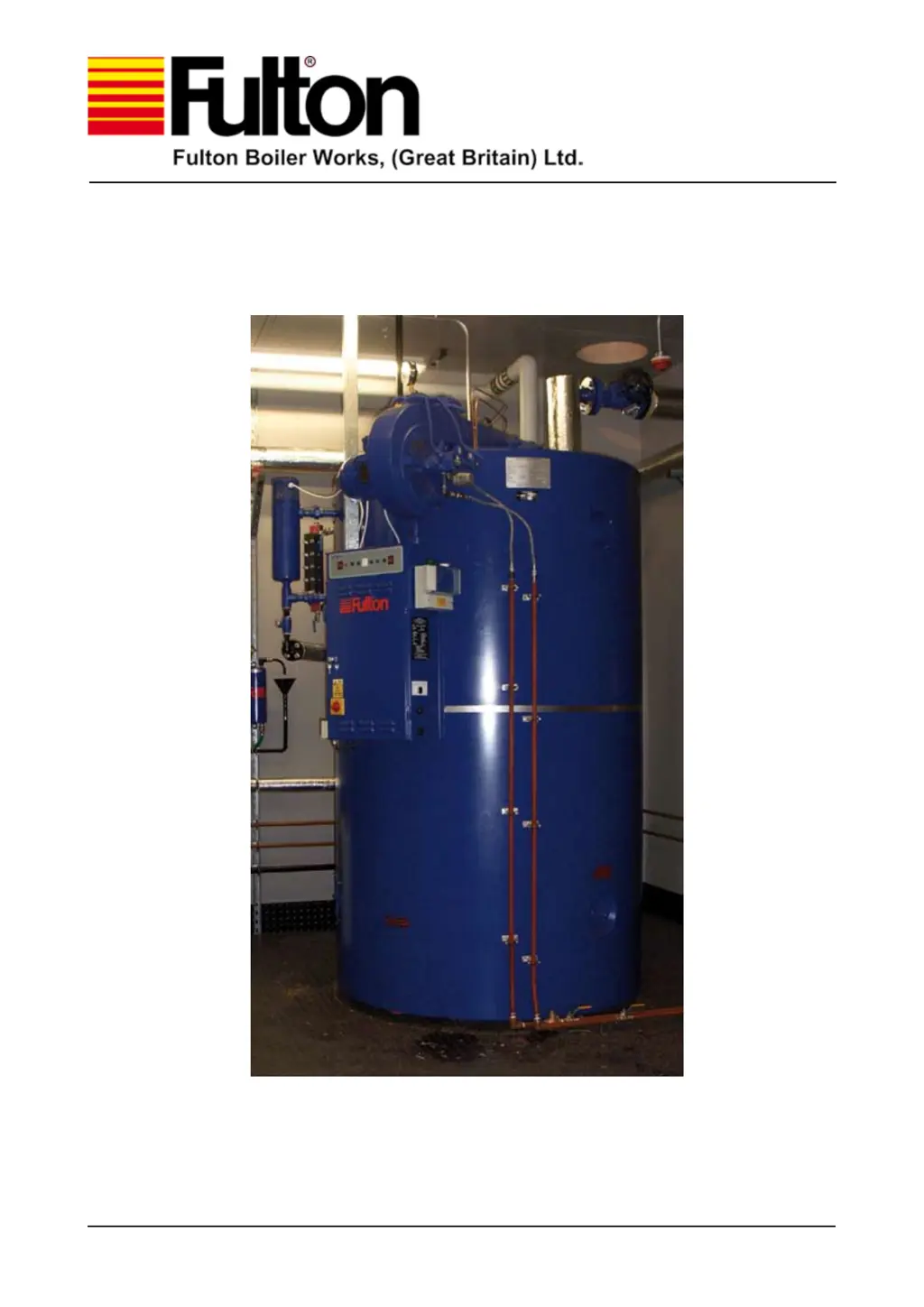

FULTON J Series - User Manual

Other manuals for FULTON J Series

Installation, Operation And Maintenance Manual76 pages

Questions and Answers

C
Crystal SimsNov 22, 2025
How to troubleshoot ignition failure in a FULTON Boiler?
- R
  Ralph CarrNov 22, 2025
  If the FULTON Boiler experiences ignition failure, several factors could be the cause. Start by checking the fuse or circuit breaker related to the power supply, and reset or replace it if needed. Then, inspect the ignition electrodes for cracks in the porcelain or carbon build-up; replace the electrode if cracked, and clean it if there's carbon. Also, verify the electrode settings and adjust them if necessary. Ensure the transformer is live by checking the voltage between its leads at the terminal block. Check the voltage between the ignition terminal and neutral before the control locks out; if there's no power, replace the burner control. Check both the main and secondary air adjustments, and inspect the air switch for any faults. Examine the filters in the gas valve block and clean the...
D
Debbie HarveyAug 29, 2025
Why does my FULTON J Series Boiler have flame failure during normal run?
- J
  Jaime BallardAug 29, 2025
  If the FULTON Boiler experiences flame failure during normal run, start by checking the fuse or circuit and reset or replace it if necessary. Check the gas pressure coming into the gas train; if it's low, contact the gas supplier, and adjust the setting on the gas valve regulator as required. Ensure the UV detector is correctly located and clean. Check for a faulty air switch. Finally, check combustion readings to identify any bad combustion issues.
J
James WilliamsAug 30, 2025
Why does my FULTON J Series Boiler experience flame failure during normal run?
- K
  Karen MeyersAug 30, 2025
  If your FULTON Boiler experiences flame failure during normal run, possible causes include issues with the power supply, so check the fuse or circuit and reset or replace as necessary. Problems with the gas supply, so check gas pressure coming into the gas train, if low contact the gas supplier and check the setting on the gas valve regulator, adjust as required. The UV detector may be incorrectly located or dirty, so check the detector is located correctly and clean it. A faulty air switch could also be the cause, so check for a faulty air switch. Finally, bad combustion can lead to flame failure, so check combustion readings.
R
Russell CollinsAug 31, 2025
What causes burner cut-off in a FULTON Boiler?
- Q
  qwatsonAug 31, 2025
  Burner cut-off in a FULTON Boiler can be caused by several factors. Check the filters in the gas valve block and clean them if required. Adjust the pilot to a larger size by adjusting the pilot gas pressure regulator if you have a weak pilot. Test the level controls and adjust or replace them as required if there is a faulty level control. Clean or replace the UV detector if it is dirty or defective.
A
Alexis HouseNov 23, 2025
What to do if a FULTON Boiler has flame failure during start-up?
- G
  George ZhangNov 23, 2025
  If the FULTON Boiler experiences flame failure during start-up, begin by checking the fuse or circuit breaker related to the power supply, and reset or replace it as necessary. Then, check for adequate gas pressure and any intermittent supply problems. Inspect the main and secondary air adjustments. Examine the ignition electrodes for carbon build-up, clean if needed, and ensure proper adjustment. Replace the electrode if cracks are found in the porcelain. Check that the UV detector is correctly located and clean. Verify the voltage between the ignition terminal and neutral before the control locks out; replace the burner control if there's no power. Tighten any loose wiring connections at the fuel valve circuit. Adjust the air switch to the correct setting if the contact is open. Finally,...
K
Katie MillerSep 13, 2025
What causes flooding in a FULTON J Series?
- R
  Randall LeeSep 14, 2025
  Flooding in a FULTON Boiler can occur if the pump does not shut off, which may be due to dirty probes; clean or replace them as necessary. A failed relay can also cause flooding; ensure the relay is secure on its base, and if so, replace the water level relay. An issue with the earth connection can also lead to flooding; clean and tighten as required. Additionally, a vacuum created with the boiler off can pull water from the system piping; to prevent this, add a check valve on the steam gauge assembly piping that closes under pressure and opens under vacuum.
R
Rebecca MillerSep 16, 2025
What causes a FULTON Boiler to start surging?
- E
  Eric RuizSep 16, 2025
  If the FULTON Boiler is surging, check the steam traps, and clean or replace as required. Contact a water treatment company and consult the factory regarding scale buildup or lime deposits. If there is too much water treatment, dump the return tank and flush the system, then test the water treatment. Check the total equipment load against the boiler output and decrease the amount of equipment being used if there is too much of a load.
A
Andrew RodriguezSep 8, 2025
What to do if my FULTON J Series Boiler's pump runs but gives no water?
- T
  Theresa PatelSep 9, 2025
  If your FULTON Boiler's pump runs but gives no water, first check if the suction pipe or pump is blocked, and clean them if necessary. Inspect the foot or non-return valve for blockages in the closed position and repair it. Look for any leakage in the suction pipe and repair it. Check for air in the suction pipe or pump and verify the suction conditions. Ensure the pump rotates in the correct direction by changing the motor's rotation direction if needed. Finally, inspect the boiler feedwater non-return valve to ensure it is seating properly and not allowing water to pass, which is usually accompanied by banging in the feedwater tank; clean the valve if necessary.
D
Dean LopezSep 7, 2025
Why does the motor contactor overload in my FULTON J Series trip out occasionally?
- T
  thomas65Sep 7, 2025
  If the motor contactor overload in your FULTON Boiler trips out occasionally, it could be because the overload setting is too low, so set the overload correctly. Another possible cause is low voltage at peak times, so check the electricity supply.
A
Alison BeardSep 8, 2025
What causes inconsistent pump capacity in my FULTON J Series Boiler?
- B
  Barry SanchezSep 8, 2025
  Inconsistent pump capacity in your FULTON Boiler can be caused by several factors. The pump inlet pressure might be too low, leading to cavitation, so check the suction conditions. The suction pipe or pump could be partly blocked, so clean the pump or suction pipe. The pump may also be drawing in air, so check the suction conditions.

Summary

Introduction

Technical Data

Specifications and performance data for various boiler models.

Installation

General

Siting

Ventilation

Flue Outlet

Water Supply

Steam Safety Valves

Information on factory-set safety valves and discharge piping.

Oil Supply

Positioning of oil storage, feed/return lines, filters, and valves.

Commissioning the Boiler

Procedures for boiler commissioning by a service engineer.

Cleaning Steam Lines and Pressure Vessels

Safety

General Safety Instructions

Importance of observing operation/maintenance instructions for safety.

Maintenance and Repairs

Warning against performing unknown maintenance; consult service engineer.

Electrical Safety

Warning to understand circuits before connecting/disconnecting electrical components.

Defective Boiler Operation

Do not operate a defective boiler; ensure all maintenance is done.

Hydraulic Test Risk

Risk of brittle fracture during hydraulic testing below 5°C.

Water Quality Importance

Low Feed Water Temperature

Qualified Personnel Only

Only qualified persons should operate/maintain the boiler.

Fuel Modification

Unauthorized Modifications

Lifting Equipment Safety

Operating Limits

Do not operate beyond design limits; avoid unapproved upgrades.

Hot Surfaces Danger

Steam boilers have hot surfaces causing burns; use competent personnel.

Incomplete Combustion Danger

Danger of carbon monoxide from poor combustion.

Water Treatment Chemicals

Operation

General

Boiler Controls

Overview of operating principles for boiler controls.

Filling the Boiler

Starting the Burner

Step-by-step procedure for starting the boiler's burner.

Daily Operating Tests

Procedures for daily visual inspection and safety control tests.

Pump Check

First Low Water Level

Test for the first low water level safety control.

2 nd. (Overriding) Low Water Check

Test for the second, overriding low water safety control.

Blowdown Procedures (Daily tests)

Draining the Boiler

Troubleshooting

Ignition Failure

Common causes and remedies for ignition failure.

Flame Failure

Causes and remedies for flame failure issues.

Boiler Fails to Start

Causes and remedies when the boiler fails to start.

Burner Cut-off

Poor Combustion

Causes and remedies for poor combustion.

Burner Back Fires

Boiler will not maintain pressure

Causes and remedies for the boiler failing to maintain pressure.

Maintenance

General

Importance of regular checks for scale buildup and effective water treatment.

Daily

Weekly (including daily)

Weekly checks including safety valve security and water level controls.

Monthly (including weekly)

Three Monthly (including monthly)

Six Monthly (including three monthly)

Spirax High Integrity Level Controls

Daily Test

Daily testing procedures for the 1st and 2nd low water controls.

Weekly Test (Daily test plus)

Weekly test procedures for low water controls, including evaporation.

Recommended Water Conditions

Feedwater

Recommended water quality parameters for water entering the boiler.

Boiler Water

Recommended water quality parameters for water inside the boiler.

Spare Parts

Ordering Spare Parts Information

Details required for ordering spare parts and safety valves.

FULTON J Series Specifications

General

Model	J Series
Fuel Type	Gas, Oil
Pressure Range	15 - 300 psi
Pressure	15 to 300 PSIG
Pressure Rating	15 - 300 psi
Weight	Varies by model
Dimensions	Varies by model
