FULTON J Series - Flue Outlet

J OIL-E-08 2008
2
6
2.4 FLUE OUTLET
 Theboilerissuppliedwithastainlesssteeluespigot 
 thatshouldbeinsertedintotheueoutletinthe
back of the boiler and secured with the three angle
clips supplied loose in the trim box.
 Theheightandtypeofuewillgenerallybesubjectto
local planning regulations and approvals. The following
information is intended to provide assistance where the
 installationofasimpleueisrequired.
 Wheremulti-boileruesordifcultiesareexperienced,
specialist advice should be obtained.
 Theuediametermustbethesameorlargerthanthe
 ueangeprovidedwiththeboilerandtheoutletshould
be at least 1 meter higher than the nearest ridge to avoid
down draughts.
 Whereachimneycowlistted,careshouldbetakento
ensure that the distance between the lowest point of
 thecowlandthetopoftheueis1.5Xthediameter
 oftheue,andthatitisoftheterminalconetype.
Note:
1. Iftheuelayoutissuchthatitmayproduceanexcessiveup-draught,adraughtstabiliser
may be required.
2. Avoidtting90deg.elbowswheneverpossible,ifunavoidablecompensatebyincreasingthe
  uediameter.
3. Ensurealluepipesfromtheboilertothemainuehavearisingpitch.

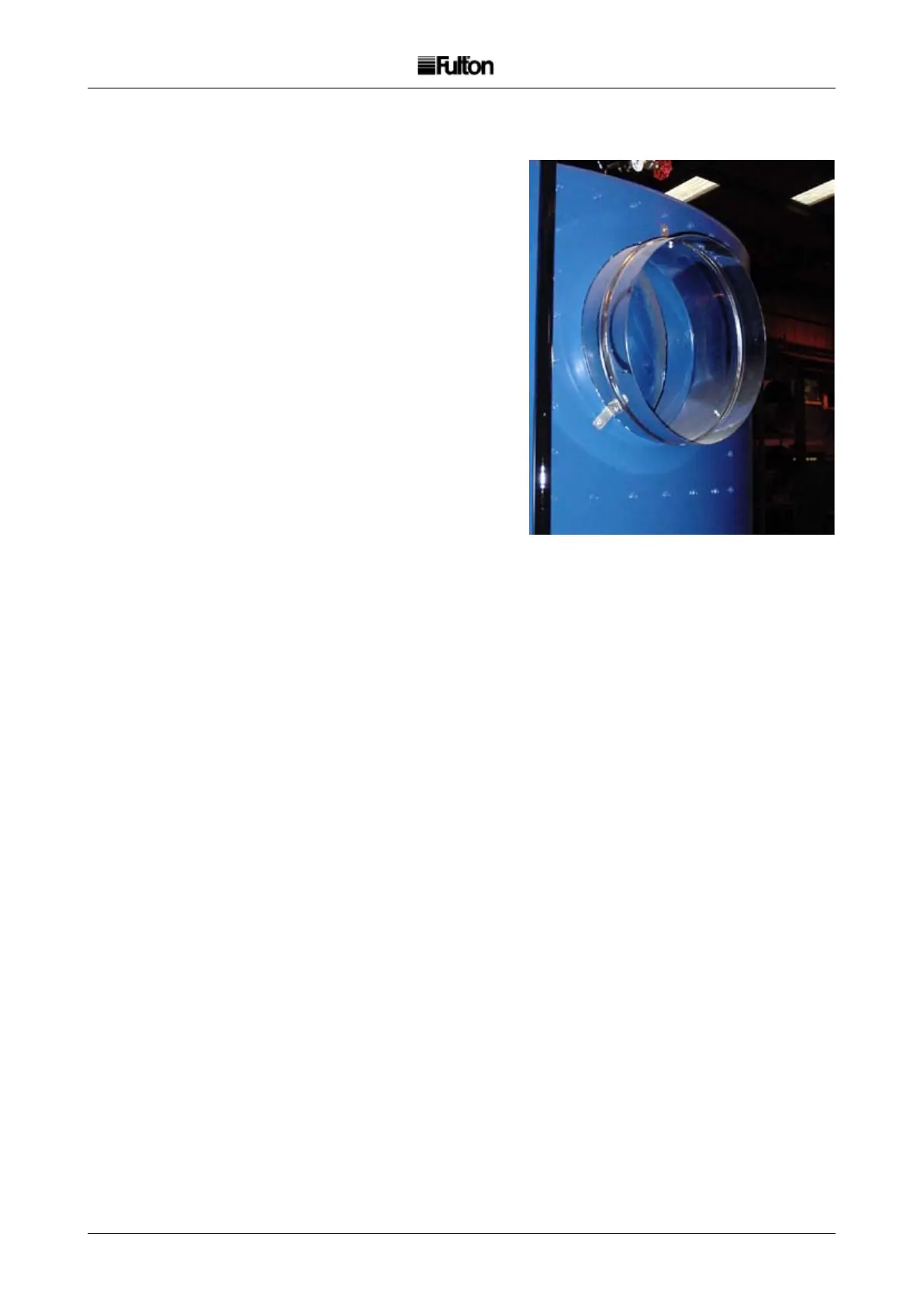

FIG. 4 BOILER FLUE CONNECTION
