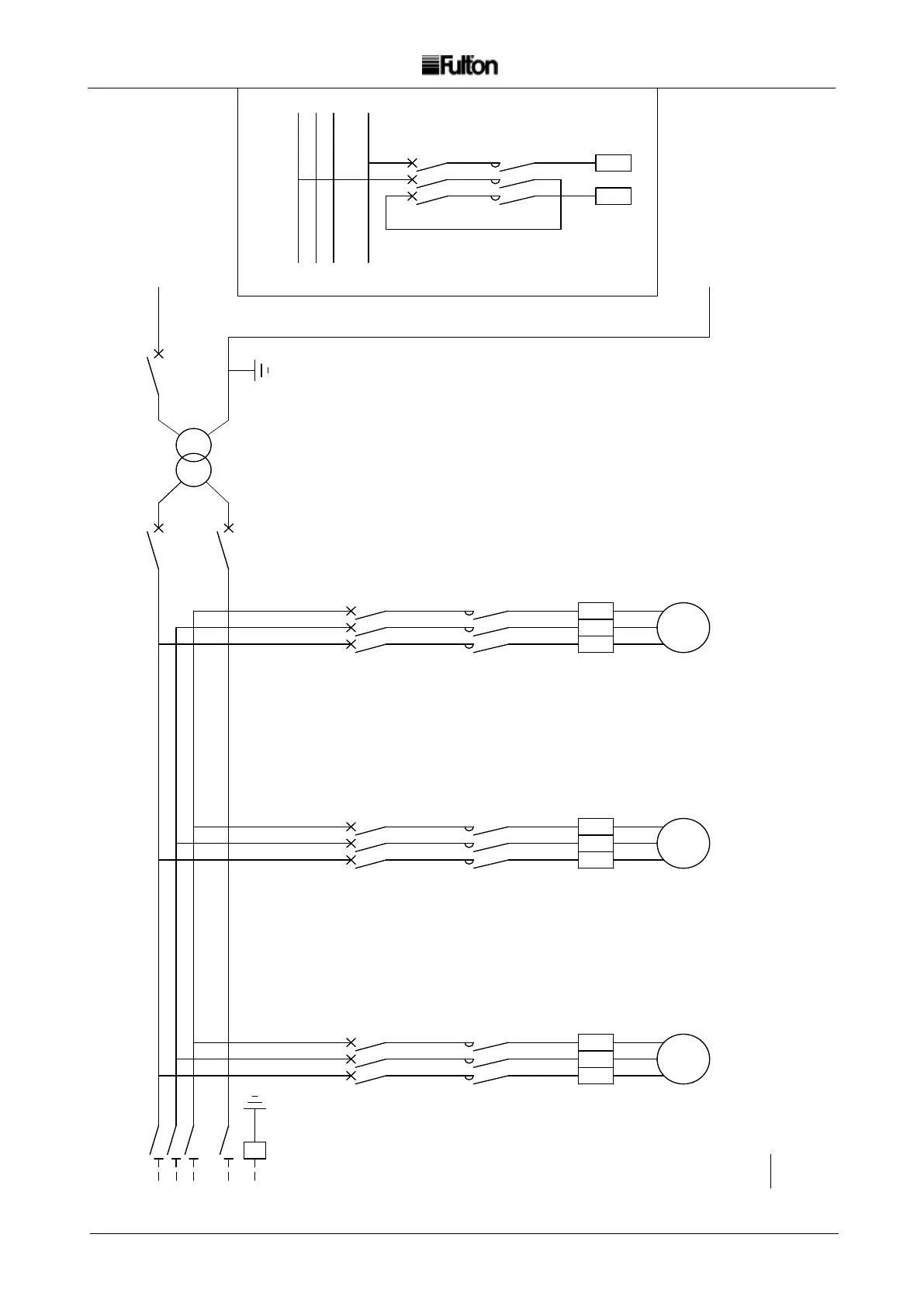

FIG. 22 BOILER SUPPLY CIRCUIT
43
1.
2.
3.
6.
5.
4.
L2 L3 L1 N PE
PE
INTERLOCKED DOOR ISOLATOR
BURNER MOTOR CT1
FEED PUMP MOTOR CT1
BURNER MOTOR CONTACTOR
FEED PUMP MOTOR CONTACTOR
BURNER MOTOR FEED PUMP MOTOR
M
3
~
M
3
~
9.
8.
7.
OIL PUMP MOTOR CT1 (IF FITTED) OIL PUMP MOTOR CONTACTOR (IF FITTED)
OIL PUMP MOTOR
(IF FITTED)
M
3
~
1:1 TRANSFORMER
C CN
2A MCB
6J-60J SERIES PANEL
SUPPLY CIRCUIT
(FOR GAS, OIL & DUAL FUEL BOILERS)
NOTE: FOR CIRCUIT CONTINUATION INSTRUCTION REFER TO DRAWING EJ060000.
2A MCB
2A MCB
L2 L3 L1 N
SINGLE PHASE SUPPLY
EJ06 0001-1
