PREPARATION FOR USE

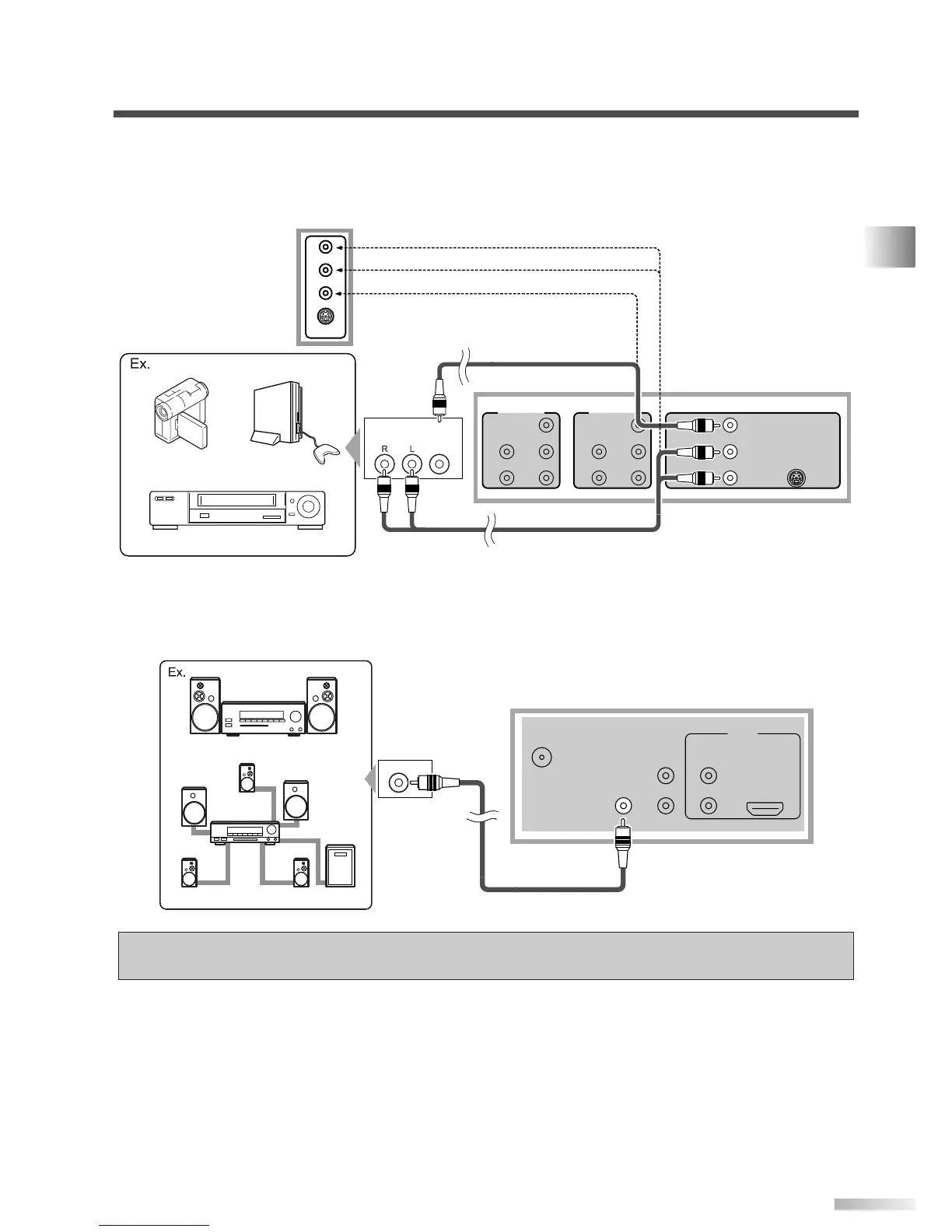

[VIDEO CONNECTION]
Offers standard picture quality for video devices connected to your TV.
When the audio jack of the video device is monaural, connect the audio cable to the audio L input jack.
[DIGITAL AUDIO CONNECTION]
If you connect this TV to an external digital audio device, you can enjoy multi-channel audio like 5.1ch digital
broadcasting sound. Required digital audio coaxial cable not included.
