FUNAI iLO CIWP4206 A - Analog Audio Connection; Connecting the Power Cable

12
EN

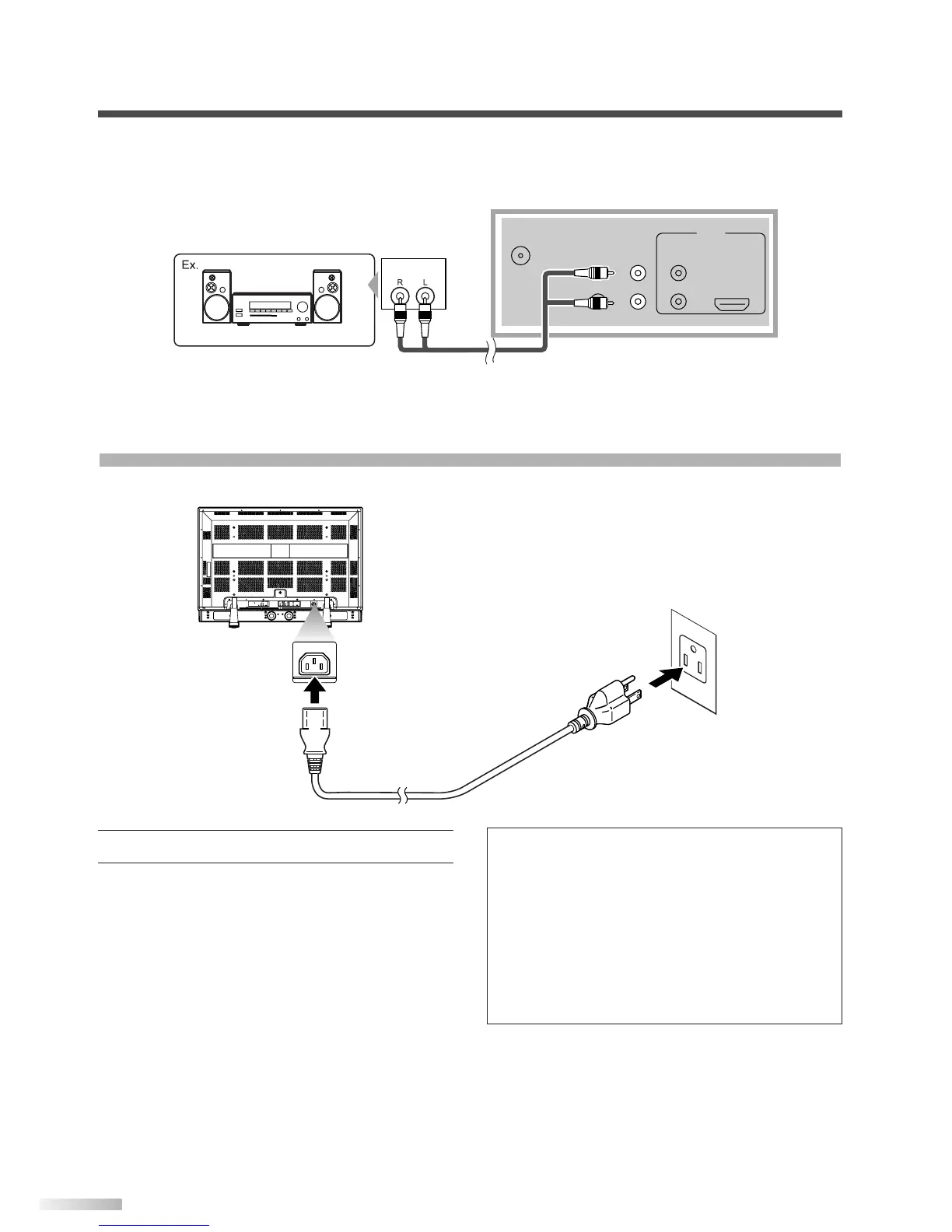

[ANALOG AUDIO CONNECTION]
If you connect this TV to an external analog audio device, you can enjoy stereophonic (2 channel) audio
sound. Required audio cable not included.
ANT. IN
AUDIO OUT AUDIO
HDMI IN
L
R
L
R
DIGITAL
AUDIO OUT
(COAXIAL)
HDMI
AUDIO
IN
Rear of this TV
Stereo system
To AUDIO
OUT jacks
To audio input jacks
Audio cable
(not included)
ANT. IN
AUDIO OUT AUDIO
HDMI
COMPONENT2
Y
Pb
Pr
L
R
AUDIO
Y
Pb
Pr
L
R
AUDIO
L
R
AUDIO
VIDEO1
AC IN
S-VIDEO1
COMPONENT1
HDMI IN
L
R
L
R
DIGITAL
AUDIO OUT
(COAXIAL)
1
2
AC IN
1 Connect the power cable to this TV first.
2
Connect the power cable to an AC outlet.
#
CAUTION
• Do not connect the power cable to a power
supply outside the indicated voltage of this TV
(AC 120V). Connecting the power cable to a
power supply outside of this range may result in
fire or electrical shocks.
• Always use the power cable included with this
TV. Do not use any other cable.
For safety, make sure to always connect the
power cable to a three pronged AC outlet.
CONNECTING THE POWER CABLE
Connect the power cord (included) to the TV before connecting it to the power source.
