FUNAI LC5-D20BB - Main 1;4 & IR Sensor Schematic

8-3
A7340SCM1

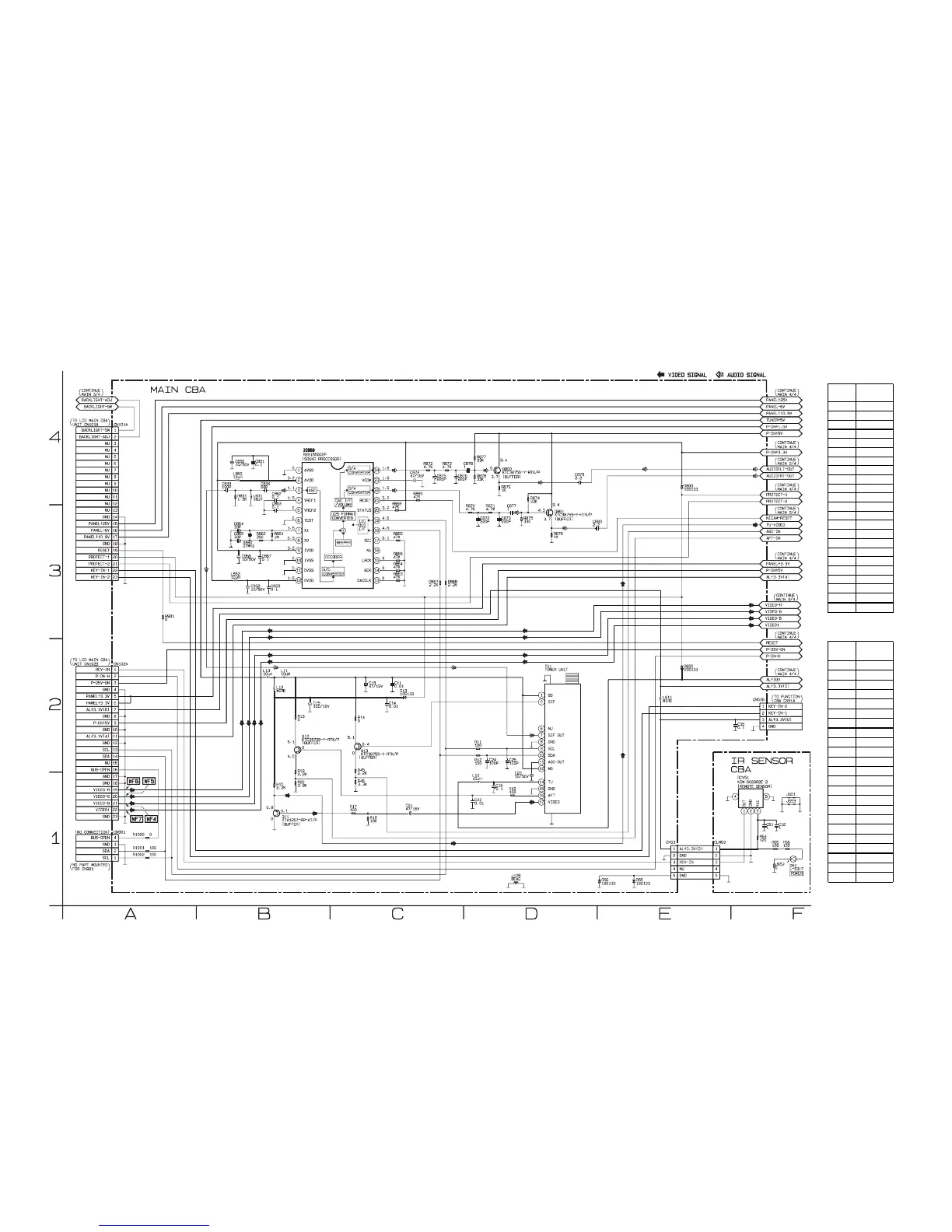

Main 1/4 & IR Sensor Schematic Diagram
CN101A
13.3
20
3---
4---
5---
6---
7---
8---
9---
10 ---
11 ---
12 ---
13 ---
14 0
15 24.2
16 6.2
17 10.7
18 0
19 0
20 3.1
21 0
22 3.3
23 3.3
CN102A
13.1
23.3
33.3
40
53.3
63.3
73.3
80
95.2
10 0
11 3.4
12 0
13 4.6
14 4.7
15 ---
16 3.8
17 0
18 0
19 0.4
20 0.4
21 0.4
22 0.4
23 0
Pin No. Voltage
VOLTAGE CHART
Pin No. Voltage
