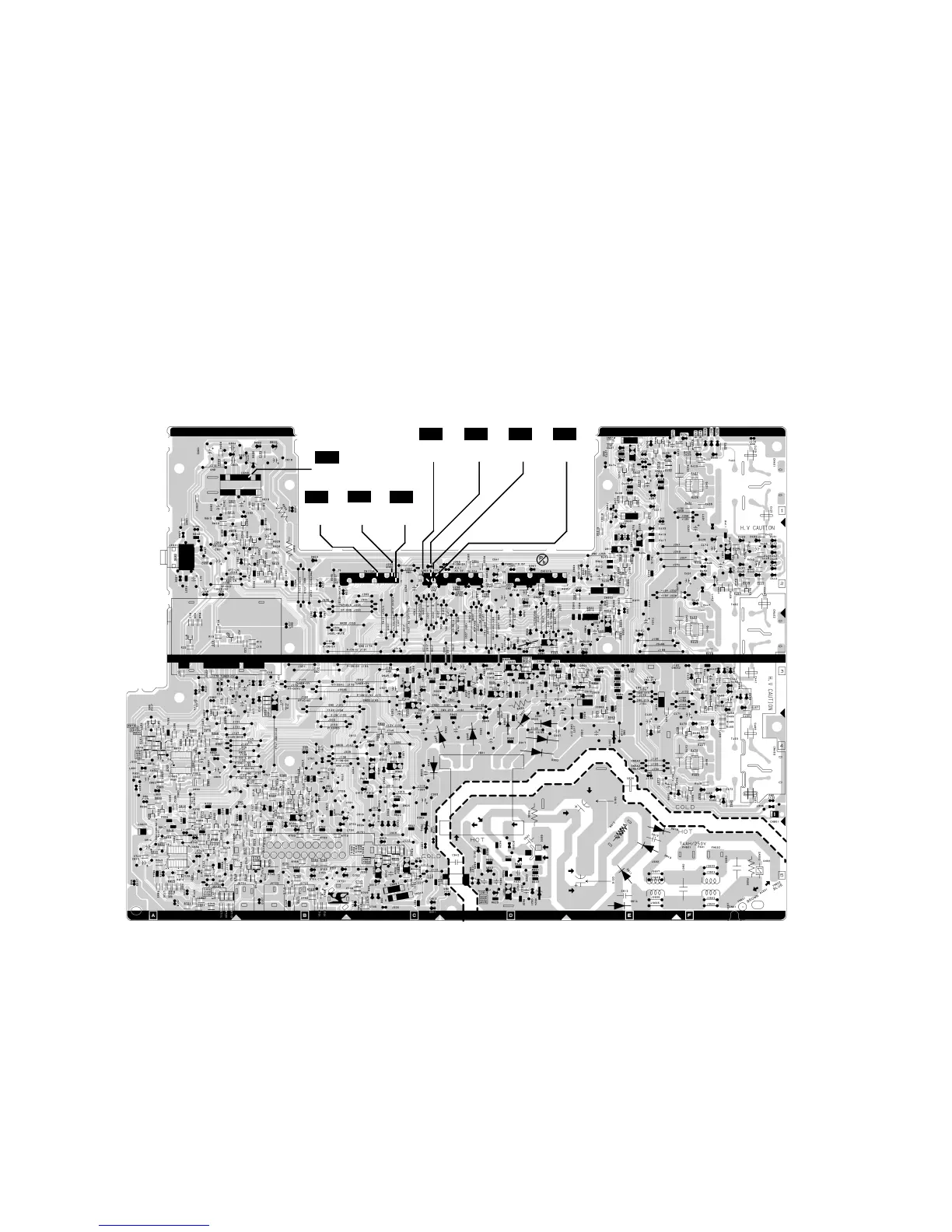

FUNAI LC5-D20BB - Main CBA Bottom View

8-11
WF1
PIN 14 OF
IC801
WF2
PIN 3 OF
CN103A
WF3
PIN 2 OF
CN103A
WF4
PIN 21OF
CN102A
WF5
PIN 20 OF
CN102A
WF6
PIN 19 OF
CN102A
WF7
PIN 22 OF
CN102A
WF8
PIN 9 OF
CN103A
Main CBA Bottom View
BA7340F01011-1
CAUTION !
For continued protection against fire hazard,
replace only with the same type fuse.
NOTE:
The voltage for parts in hot circuit is measured using
hot GND as a common terminal.
Because a hot chassis ground is present in the power
supply circut, an isolation transformer must be used.
Also, in order to have the ability to increase the input
slowly, when troubleshooting this type power supply
circuit, a variable isolation transformer is required.
CAUTION !
Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F601) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.
