INSTALLATION AND USE
LEFT
RIGHT

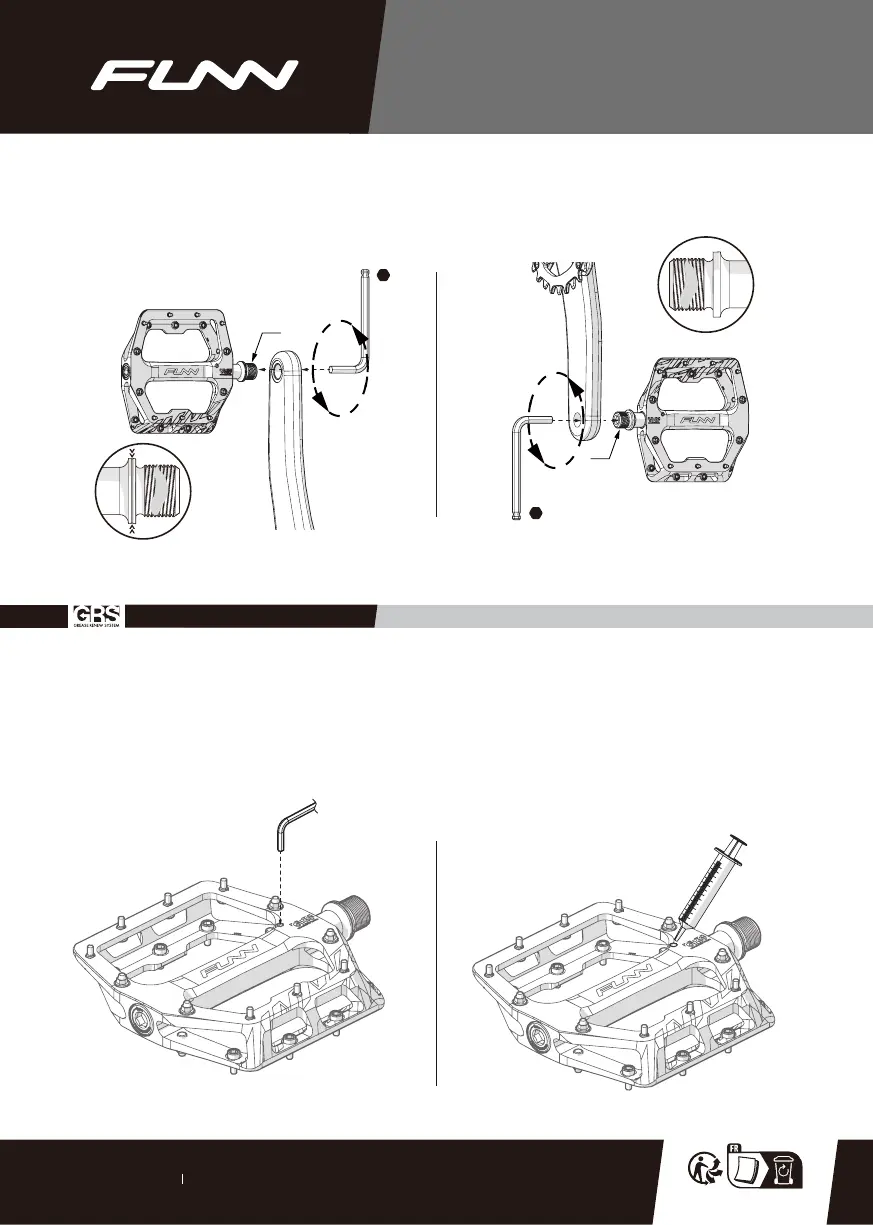

3. Lightly lubricated the axle thread with grease before installing onto the crankset.
4. Thread the axle into the crank hole with your fingers. Please follow the illustrated directions for tightening the left
and right pedals.
5. Insert a 8mm hax key to further tighten the screw to 34Nm (300 lb-in) torque and avoid excessive force.
FUNNDAMENTAL features the GRS system to easily lubricate the bushing's.
1. Use 2mm hex key to remove the GRS bolt.
2. Lubricate the bushing with a syringe and wipe off the excessive oil.
3. Tighten the bolt back on to seal the GRS port.
4. The GRS is for light lubrication once in a while, we recommend a full rebuild every 6 months.
8mm
34 Nm
34 Nm
Hex key 2mm
8mm
INSTALLATION AND USE
Grease Renew System
FUUNDAMENTAL PEDALS
FUNNDAMENTAL PEDALS 2024.04.23 / REV. 0
