Right
8-9Nm
8-9Nm
Left
Axle
Spacer
Nut
8mm Hex Key

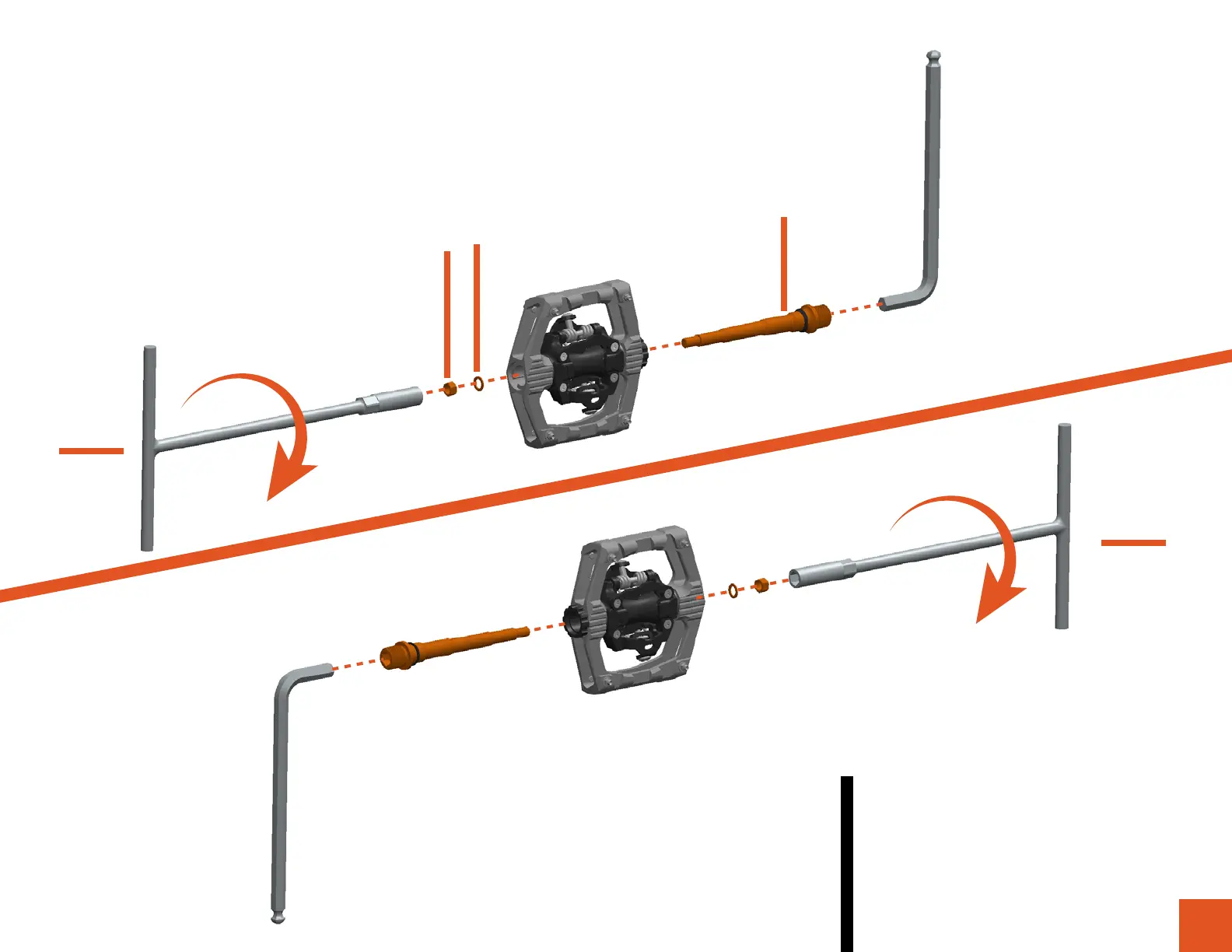

Gently detach pedal body from pedal cage.
Do not use excessive force and pay
special attention not to damage or loose
the side spring.
Insert the pedal axle and use 8mm hex key
to hold the axle in place; then tighten the
hex nut by using the 8mm socket wrench.
Please note the thread direction on each
side of the pedal. The pedal body should
pivot freely after the nut is tightened.
