Installation

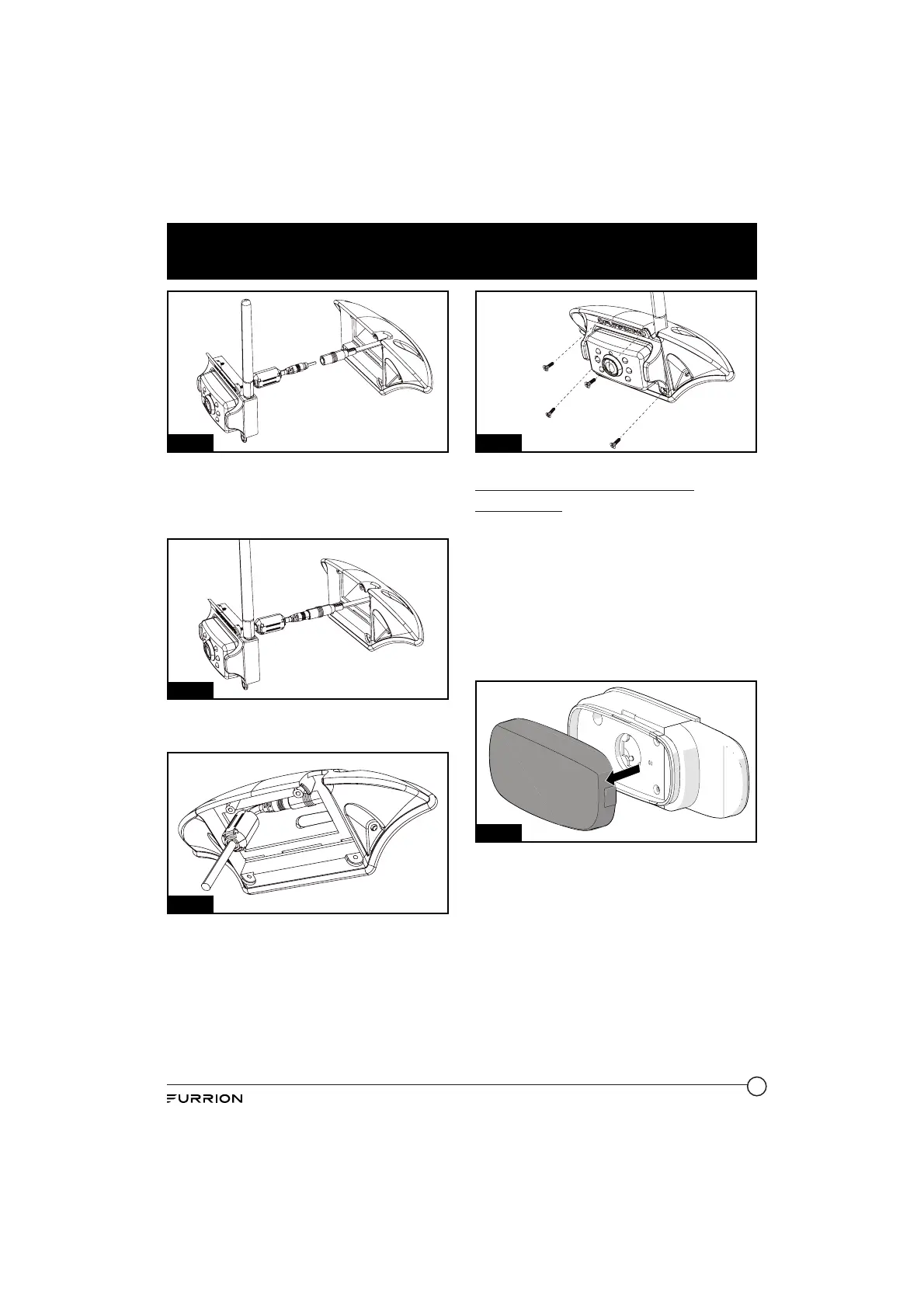

Fig. 17
10. Place the attached cables and
connections into the bracket housing by
first placing the cable to the right. (Fig.
18)
Fig. 18
11. Place the camera cable filter in the left of
the bracket housing. (Fig. 19)
Fig. 19
12. Gently place the camera into the bracket
and secure with 4 flat self-tapping
screws. Make sure the connections and
the camera antenna are secured tightly.
(Fig. 20)
Fig. 20
Rear Camera Installation (if
purchased)
A traffic light must be installed together
with the camera. For best performance, we
recommend a Furrion traffic light is selected.
1. Select a suitable position on the back of
the vehicle wall where you would like to
install the camera.
2. Remove the lens cover by scratching the
slot on the side of the traffic light.
(Fig. 22)
Fig. 22
3. Remove the two screws holding the
decorative part using a Phillips-head
screwdriver and set aside. (Fig. 23)
