Operation
English
Operation
1

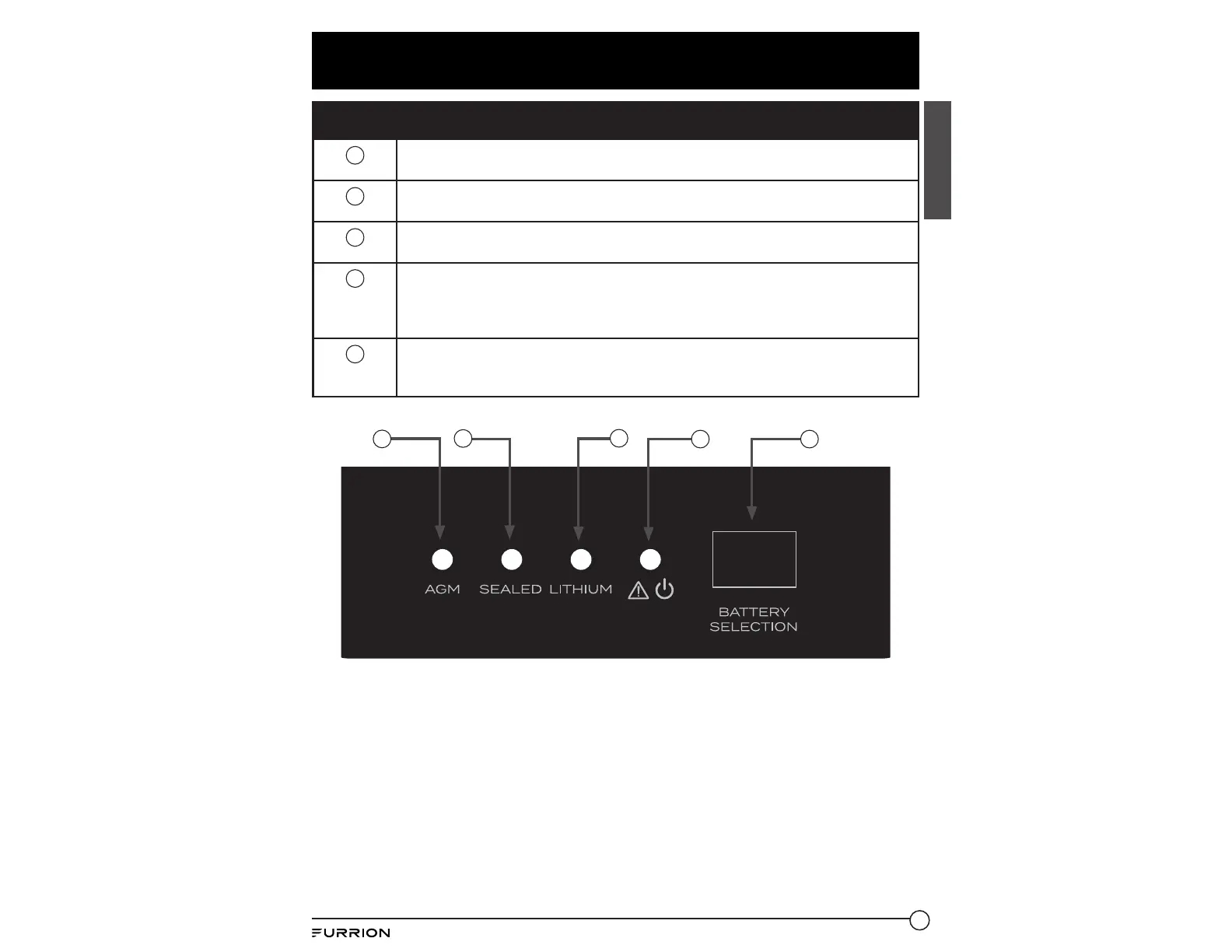

AGM battery mode indicator, this is a yellow LED, the LED will light when the
MPPT solar controller is in AGM battery charge mode.
2
SEALED battery mode indicator, this is a yellow LED, the LED will light when the
MPPT solar controller is in sealed lead acid battery charge mode.
3
LITHIUM battery mode indicator, this is a green LED, the LED will light when the
MPPT solar controller is in LiFePO4 lithium battery charge mode.
4
Charge and fault indicator, this is a bicolor LED, the LED will be red if there is
a fault or if no battery is connected; the LED will be flashing green when the
MPPT solar charge controller is charging the battery, the LED will be solid
green when the battery is full or in float charge stage.
5
This is a button, short press the button to activate the controller from ECO
mode, long press the button for 2 seconds to select the different battery modes.
Factory default : long press the button for 5 seconds.
2
3
4 5
1
