Installation
English
What’s in the Box
Make sure you have all the following items
included in the packaging. If any item is
damaged or missing, contact your dealer.
− MPPT Solar charge controller
x 1
− Instruction Manual x 1
− Warranty Card x 1
− Solar Charger Mounting Bracket x 1
− Flat head drilling screw (ST4.2*19mm)
x 4
*
For FSCC30PWB-BL & FSCC60PWB-BL only.
CAUTION
The controller requires at least 6" of
clearance above and below for proper air
flow. Ventilation is highly recommended if
mounted in an enclosure.
WARNING:
Risk of explosion! Never install the controller
in a sealed enclosure with flooded batteries!
Do not install in a confined area where
battery gas can accumulate.
WARNING:
Risk of electric shock! Exercise caution
when handling solar wiring. The solar PV
array can produce open-circuit voltages in
excess of 100V when in sunlight.
WARNING:
Risk of electric shock!
Make sure that all the power is turned off
before installation and operation.
Solar Charger Mounting Bracket
Installation (if included)
Refer to separate Solar Charger Mounting
Bracket installation manual included in the
packaging to install it.
MPPT Solar Charger Controller
Installation
1. Insert the MPPT controller into the Solar
Charger Mounting Bracket (FSCC60PWM-
BL). (Figure 1)

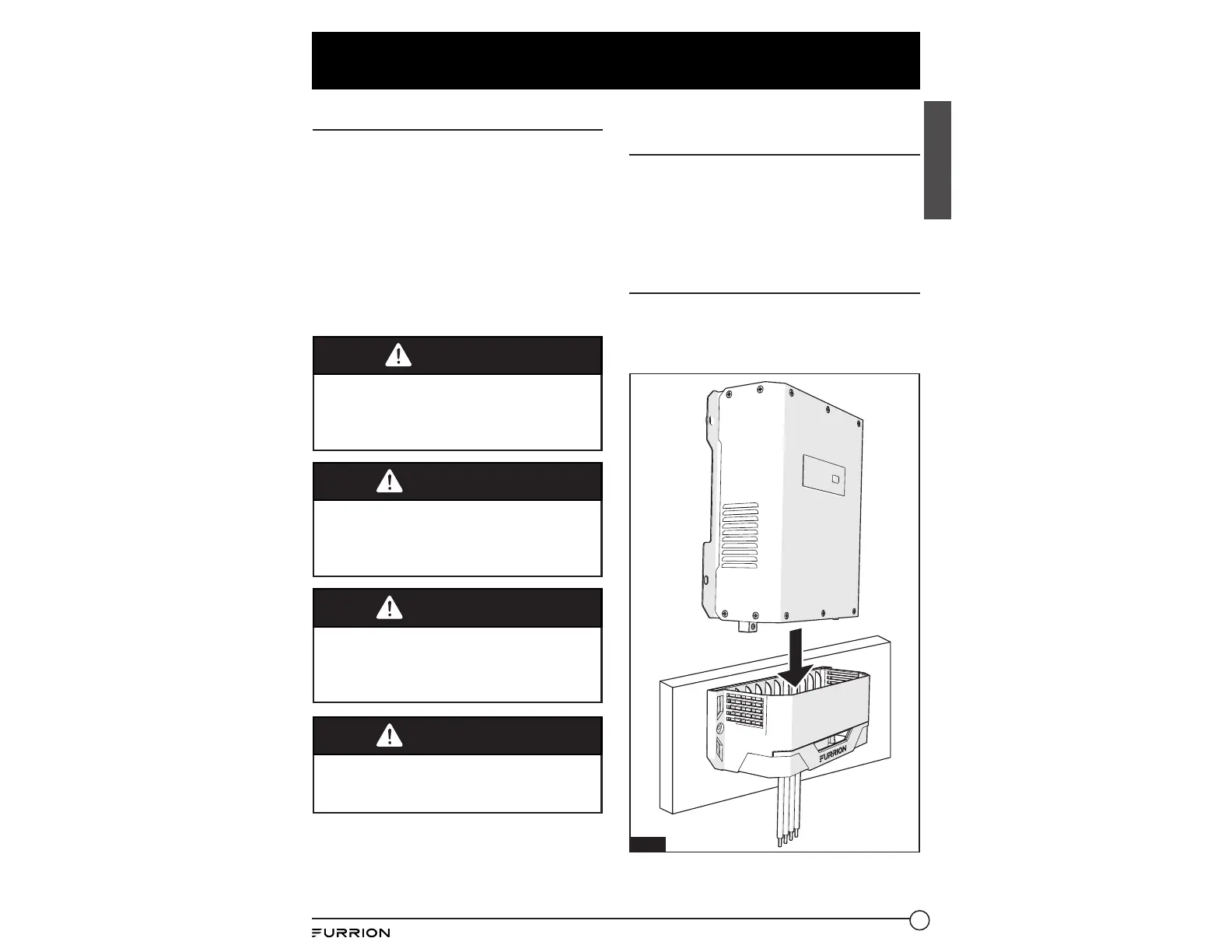

Fig. 1
