Furukawa F2 - Component Identification and Specifications

Name of components and specifications
2 – 1

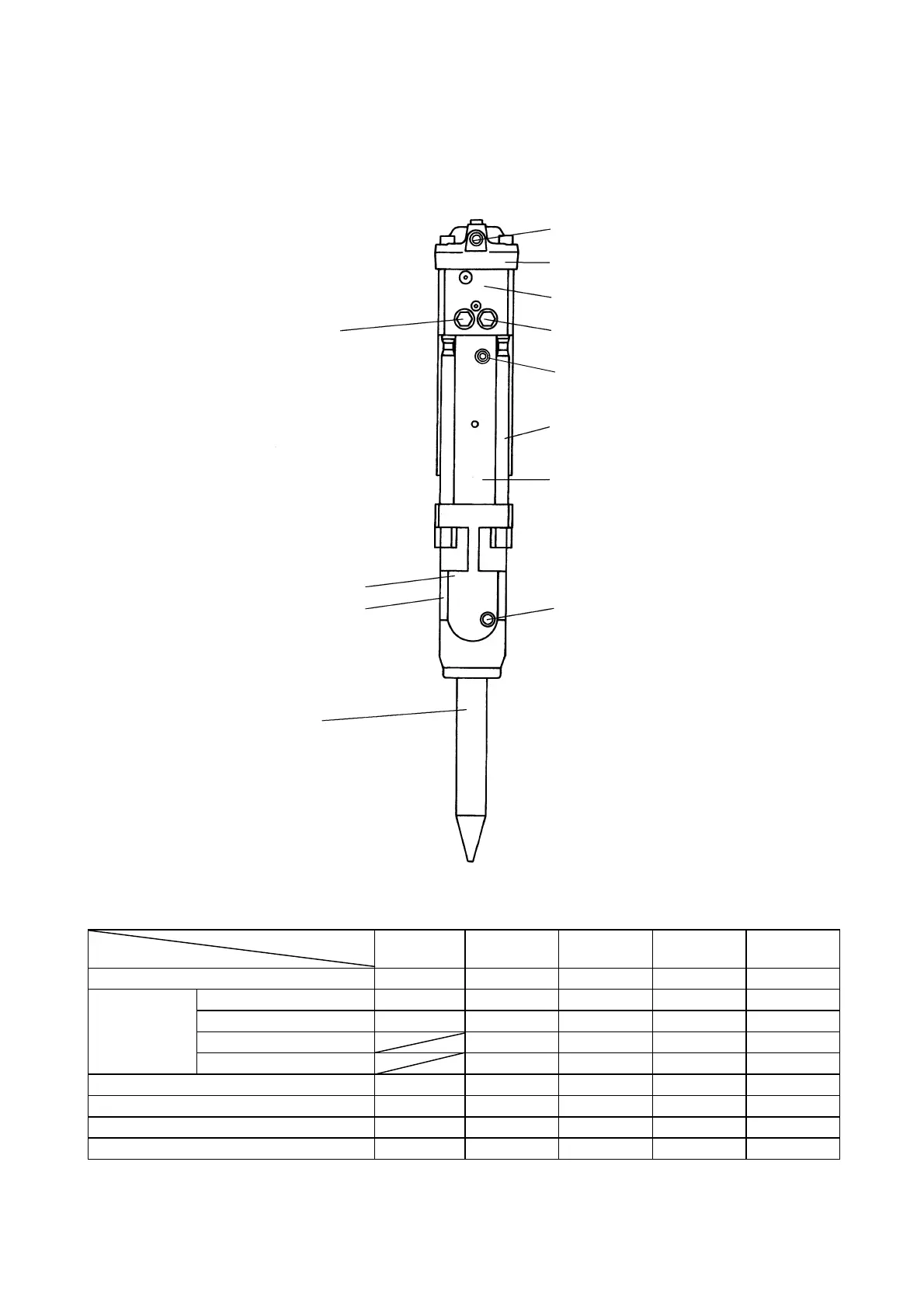

NAME OF COMPONENTS AND SPECIFICATIONS
Name of components and specifications
n
nn
n F1~F5
n
nn
n Standard specifications
Model
Item
F1 F2 F3 F4 F5
Mass of body (incl. rod) kg 43 58 81 106 152
Side bracket kg 70 92 136 180 246
Bracket kg 66 86 129 172 225
B-BOX kg 109 149 200 283
T-BOX kg 100 134 192 255
Hydraulic oil pressure MPa 9.8 to 13.7 9.8 to 13.7 9.8 to 13.7 9.8 to 13.7 9.8 to 13.7
Required oil qty l/min 12 to 20 16 to 30 25 to 40 32 to 48 42 to 62
Number of blows min
-1
900 to 1250 900 to 1200 850 to 1200 750 to 1000 700 to 900
Hose diameter (IN/OUT) mm 9/9 12/12 12/12 12/12 12/12
Tota l mass
Charging valve
Accumulator
Back head
T-port
P-port
Through bolt
Cylinder
Front head
Grease nipple
Rod pin
Rod
Valve Adjuster
