Furukawa F2 - Removing from T-Box and Side Bracket

Replacement of rod
3 – 11
Rod pin

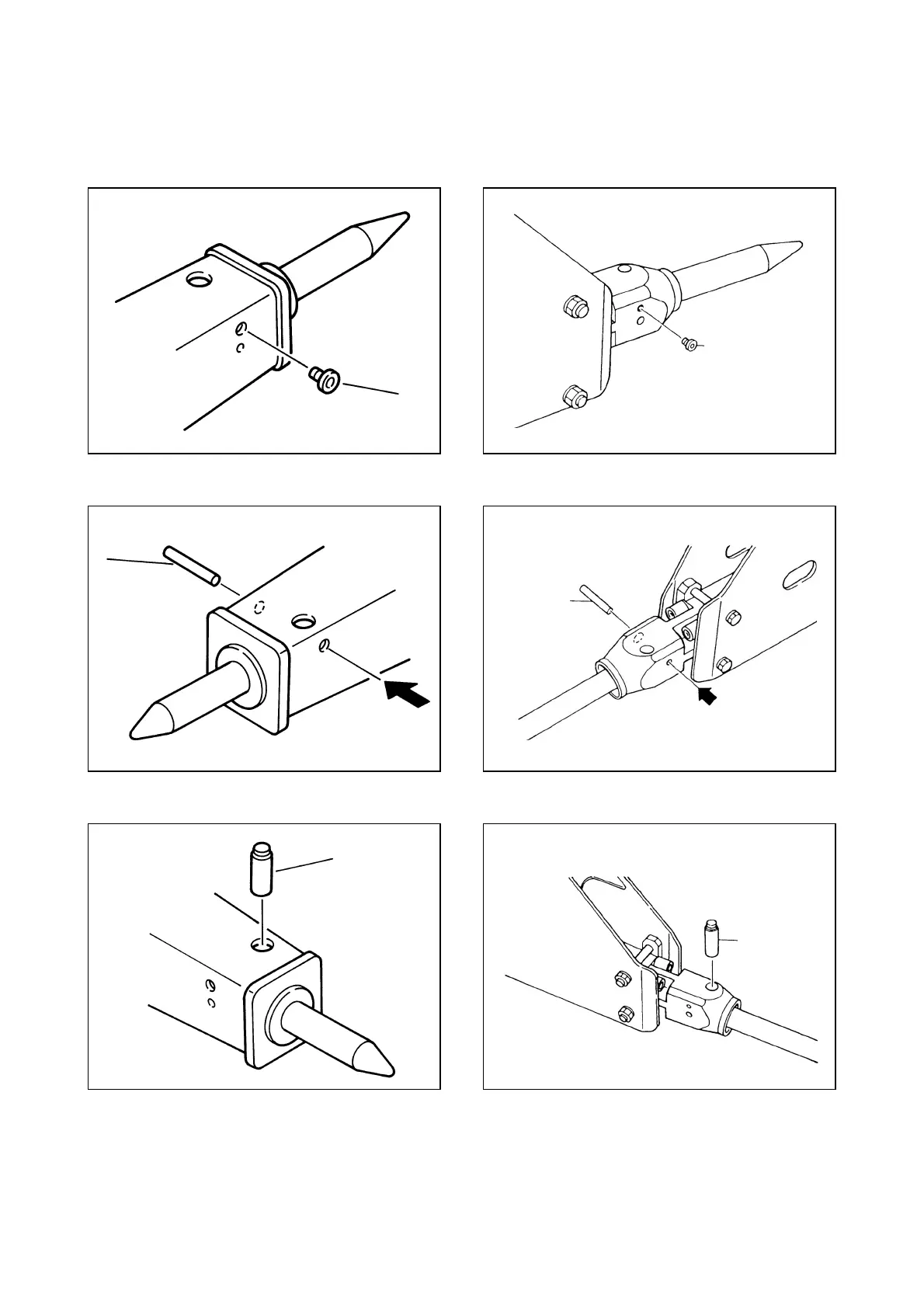

Removing from T-box and side bracket
1. Remove the screw plug on the side of the front head with an Allen wrench.
2. After removing the screw plug, apply an Allen wrench or a screwdriver to the smaller pin to remove
the stop pin.
3. When the stop pin is removed, push out the rod pin by pushing it up from the bottom with the stop
pin.
Screw plug
Stop pin
Screw plug
Stop pin
Rod pin
Rod pin
